User Guide
EVALUATION BOARD SOFTWARE
SOFTWARE INSTALLATION PROCEDURE
Download the
ACE
evaluation software from the EVAL-AD4050-
ARDZ or the EVAL-AD4052-ARDZ evaluation kit page. Install the
software on a PC before using the EVAL-AD4050-ARDZ/EVAL-
AD4052-ARDZ kit. Download the AD4050/AD4052 ACE plugin
from the EVAL-AD4050-ARDZ/EVAL-AD4052-ARDZ product page
or from the ACE plugin manager.
Perform the following steps to complete the installation process:
1. Install the ACE evaluation software.
2. Install the AD4050/AD4052 plugin. The
shows the plugin installation guide.
INSTALLING THE ACE EVALUATION
SOFTWARE
To install the
ACE
evaluation software, take the following steps:
1. Download the ACE software to a Windows-based PC.
2. Double click the ACEInstall.exe file to begin the installation.
By default, the ACE software is saved to the following location:
C:\Program Files (x86)\Analog Devices\ACE.
3. A dialog box opens asking for permission to allow the program
to make changes to the PC. Click Yes to start the installation
process.
4. In the ACE Setup window, click Next > to continue the installa-
tion.

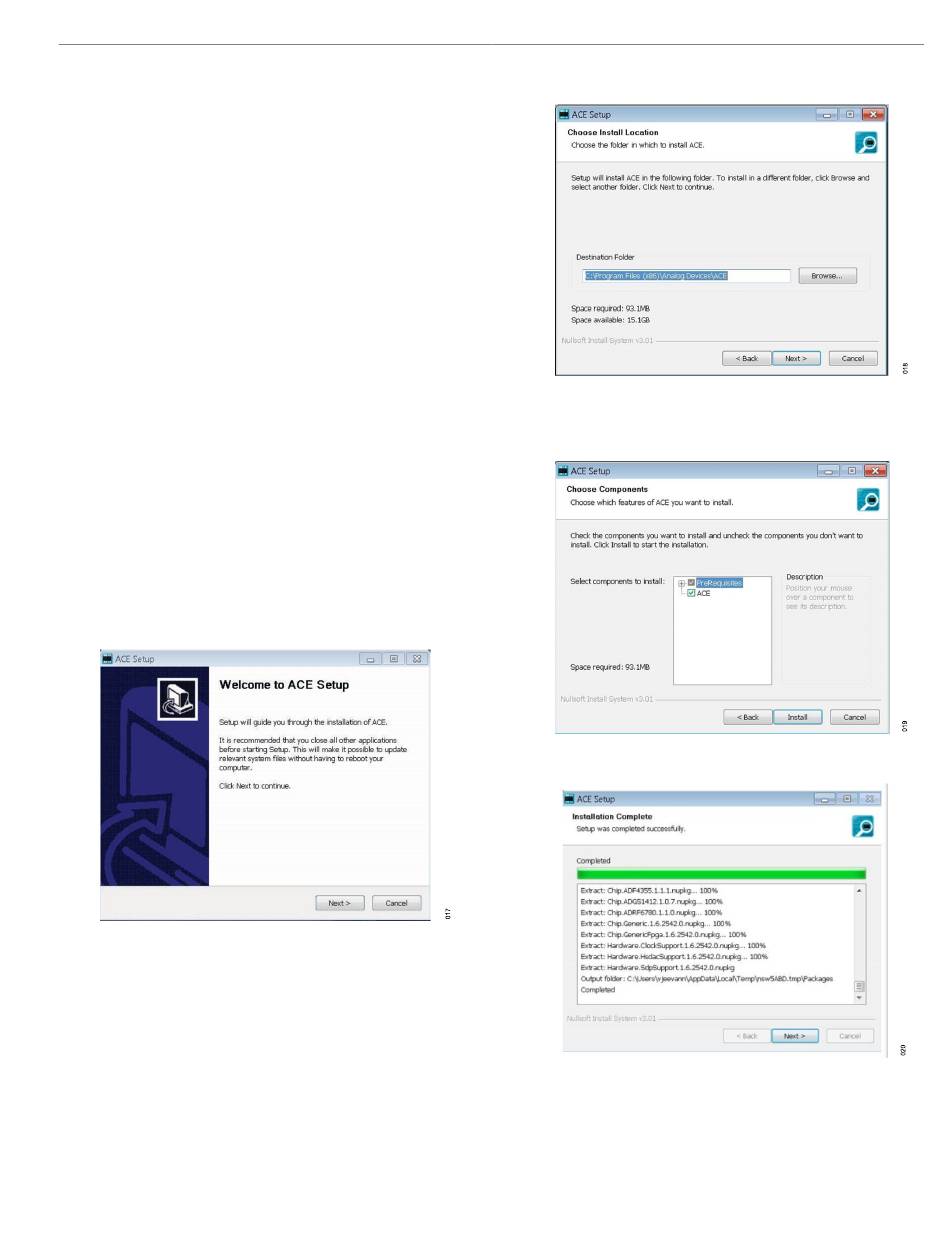

Figure 17. Evaluation Software Installation Confirmation
5. Read the software license agreement and click I Agree.
6. Click Browse... to choose the installation location and then click
Next >.
analog.com
ACE Quickstart
page
EVAL-AD4050/AD4052
Figure 18. Choose Installation Location Window
7. The ACE software components to install are preselected. Click
Install and wait for installation to complete.
Figure 19. Choose ACE Installation Components Window
Figure 20. ACE Installation Progress Window
Rev. A | 13 of 19
