User Guide
EVALUATION BOARD SOFTWARE
STARTING THE EVALUATION GUI
To use the EVAL-ADA4570SDZ with the SDP controller board, start
by connecting the two boards together with the CON A connector of
the SDP.
When launching the GUI, the SDP controller board must be
recognized by the GUI before proceeding. The GUI automatically
searches for the SDP controller board and tries to read the EE-
PROM identification of the EVAL-ADA4570SDZ and to ensure that
the correct program is in use.
If the SDP controller board is not connected, or if the drivers are not
installed correctly, a Hardware Select window appears (see
Figure
16). If this occurs, ensure that the drivers are installed
correctly and that the PC recognizes the SDP controller board.
analog.com

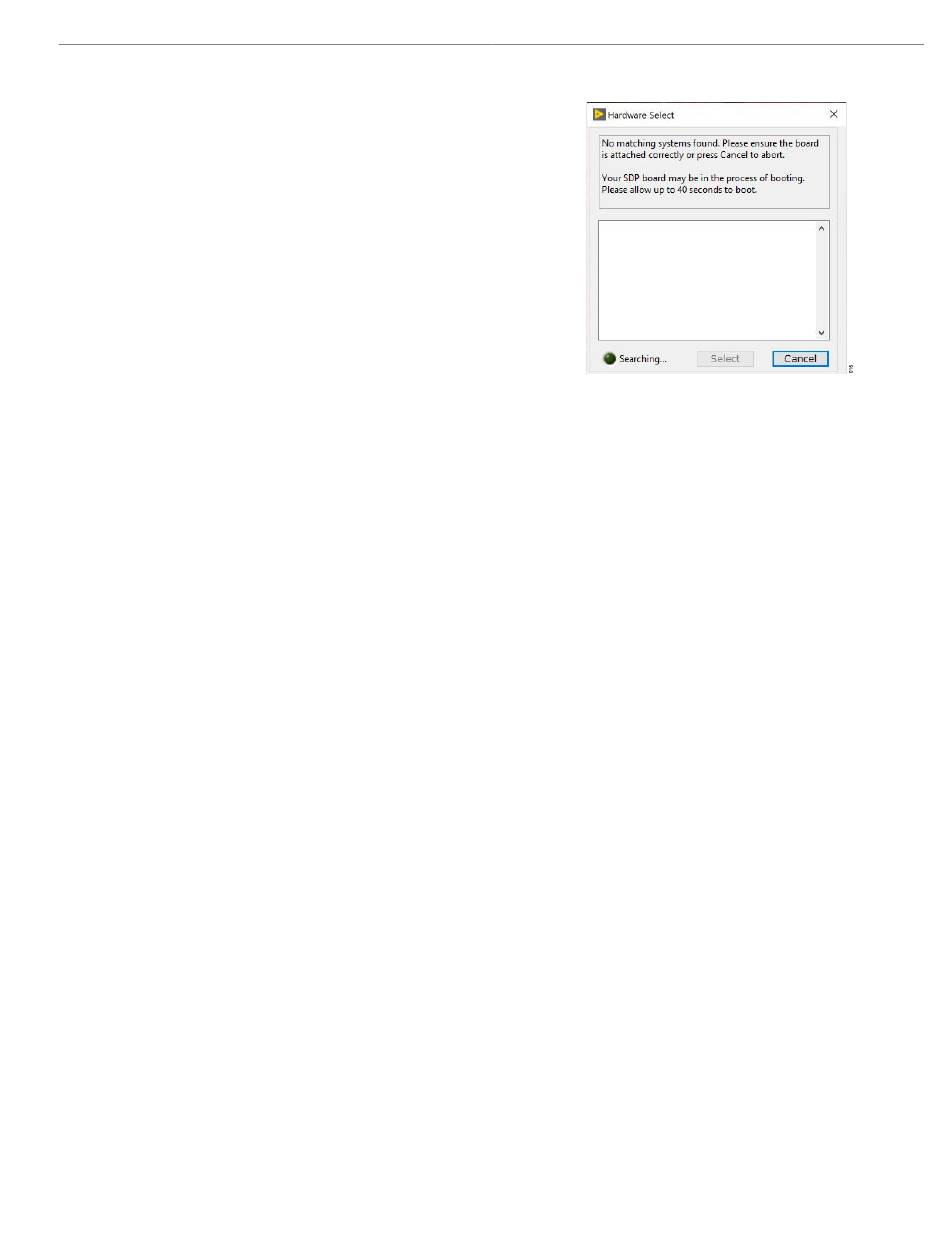

Figure 16. Hardware Select Window
The Hardware Select window also appears when the EVAL-
ADA4570SDZ is not recognized or is not connected to the SDP
controller board. When the EVAL-ADA4570SDZ is detected, the
board appears preselected in the Hardware Select window. Click
Select to continue.
EVAL-ADA4570
Rev. 0 | 8 of 17
