Histogram Tab
The Histogram tab contains the histogram graph and the Results
pane, as shown in
Figure
27.
The Results pane displays the information related to the DC
performance.
analog.com
The Histogram graph displays the number of hits per code within
the sampled data. Use this graph for DC analysis as it indicates the
noise performance of the device.

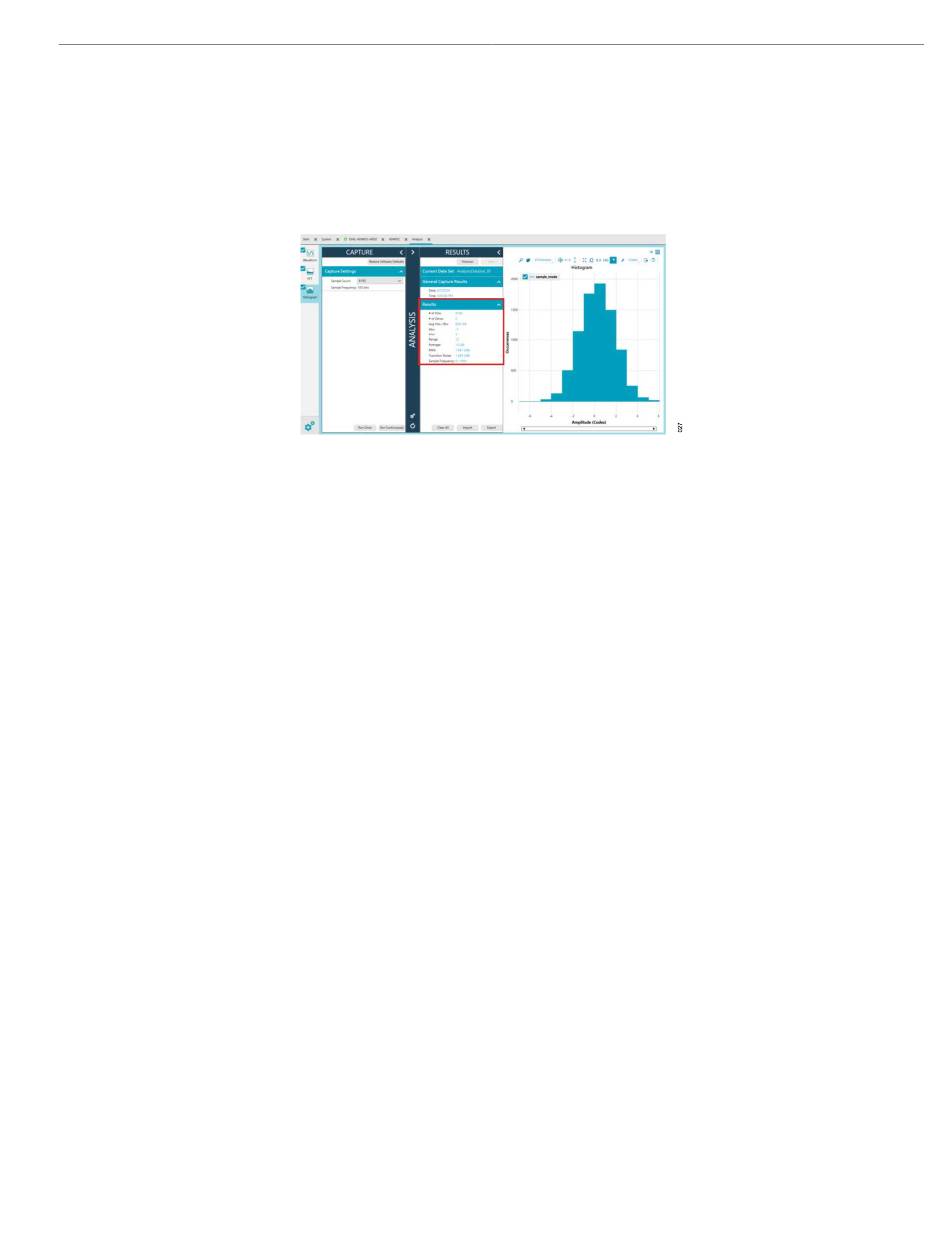

Figure 27. Histogram Tab
EVAL-AD4050/AD4052
Rev. A | 17 of 19
