UG-963

EVALUATION BOARD SOFTWARE

The control software for the
panies the board on the CD included in the evaluation kit. To
install the software, see the PLL Software Installation
To run the software,
1. Click the ADF4152 Family file on the desktop or from the
Start menu.
2. On the Select Device and Connection tab, choose
ADF4152HV and USB board (green), and then click
Connect (see Figure 4).
EVAL-ADF4152HVEB1Z accom-
Guide.

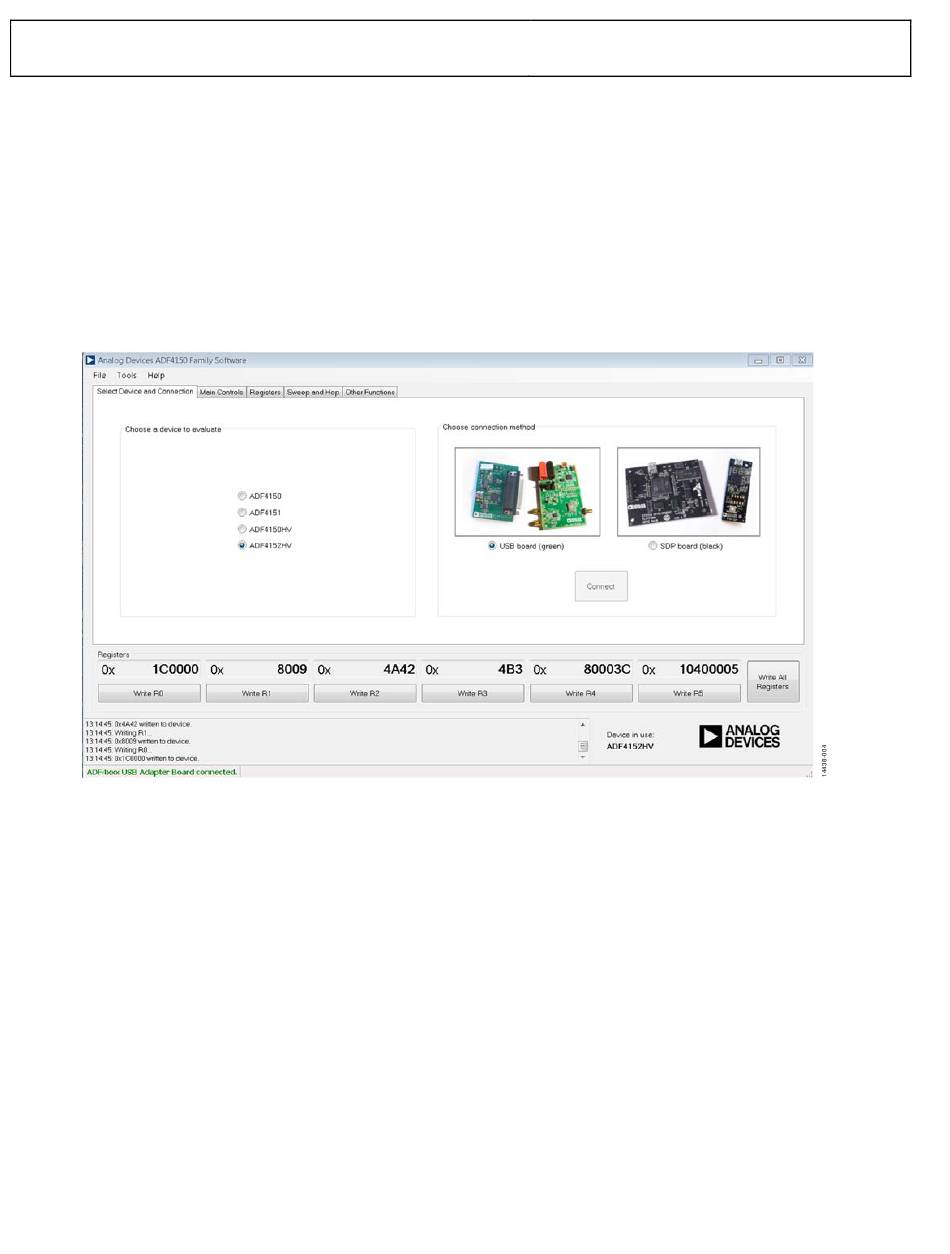

Figure 4. Software Front Panel Display—Select Device and Connection
EVAL-ADF4152HVEB1Z User Guide
3. Confirm that ADF4xxx USB Adapter Board connected is
displayed at the bottom left of the window (see Figure 4).
Otherwise, the software has no connection to the evaluation
board. Note that when connecting the board, it takes about
5 sec to 10 sec for the status label to change.
4. Under the File menu, the current settings can be saved to
and loaded from a text file.
Rev. 0 | Page 6 of 20
