User Guide
EVAL-AD4050/AD4052
EVALUATION BOARD HARDWARE

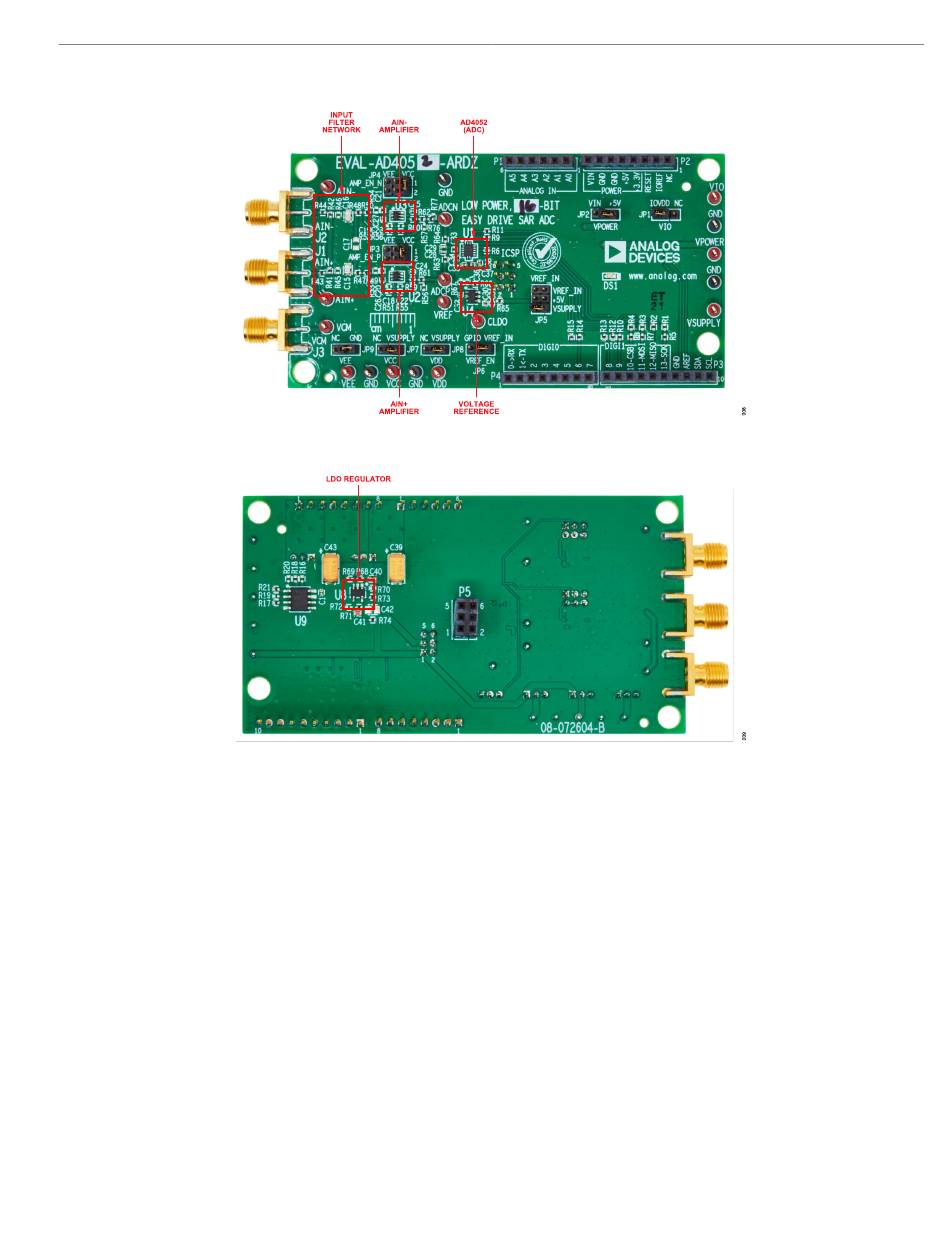

Figure 8. EVAL-AD4052-ARDZ Evaluation Board Circuitry Locations Top Side
Figure 9. EVAL-AD4052-ARDZ Evaluation Board Circuitry Locations Bottom Side
analog.com
Rev. A | 6 of 19
