User Guide
EVALUATION BOARD SOFTWARE

ANALYSIS VIEW

Click Proceed to Analysis to navigate to the AD4050/AD4052
Analysis window. From here, choose the type of analysis to be
performed by selecting the Waveform tab, the Histogram tab, or
the FFT tab. Select options for Run Once or Run Continuous to
begin capturing data that will appear in the Results section and the
Waveform plot window. Select channel results are displayed in the
Displayed Channels section (default is display all).
Waveform Tab
The Waveform tab displays data in the form of time vs. discrete
data values with the results, as shown in
analog.com
Figure 26.

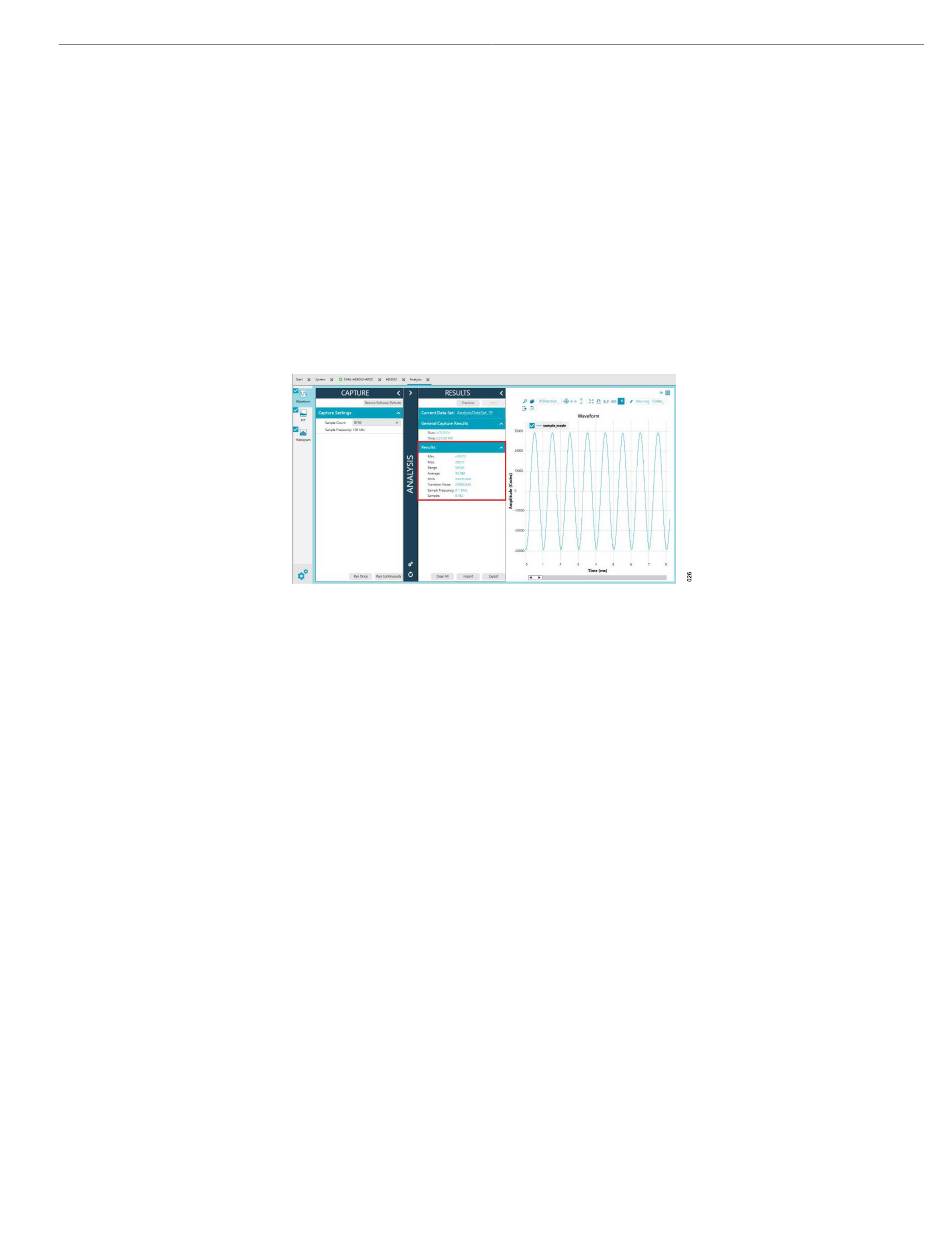

Figure 26. Waveform Tab
EVAL-AD4050/AD4052
The Waveform graph shows each successive sample of the
AD4050/AD4052 output. The user can zoom in on and pan over the
Waveform graph using the embedded waveform tool bar located
above the graph. Select the channels to display in the Display
Channels section.
Under the Display Units pull-down menu, select Codes above the
Waveform graph to select whether the Waveform graph displays in
units of Codes, Hex, or Volts. The axis controls are dynamic.
