One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the
AD7606/AD7606-6/AD7606-4/AD7607/AD7608
FEATURES
Full featured evaluation board for the AD7606/AD7606-6/
AD7606-4/AD7607/AD7608
On-board power supplies
Standalone capability
System demonstration platform (SDP) compatible
SDP-CB1Z)
PC software for control and data analysis (download from
AD7606/AD7606-6/AD7606-4/AD7607/AD7608
pages)
EVALUATION KIT CONTENTS
EVAL-AD7606SDZ/EVAL-AD7606-6SDZ/EVAL-AD7606-4SDZ/
EVAL-AD7607SDZ/EVAL-AD7608SDZ
Evaluation software CD for the AD7606/AD7606-6/AD7606-4/
AD7607/AD7608
Mains power supply adapter
Screw/nut kit
ADDITIONAL EQUIPMENT NEEDED
EVAL-SDP-CB1Z
system demonstration platform
PC running Windows® Vista or Windows 7 with USB 2.0 port
Signal source
SMB and USB cables
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Sampling, 8-/6-/4-Channel, SAR ADC
(EVAL-
product
evaluation board

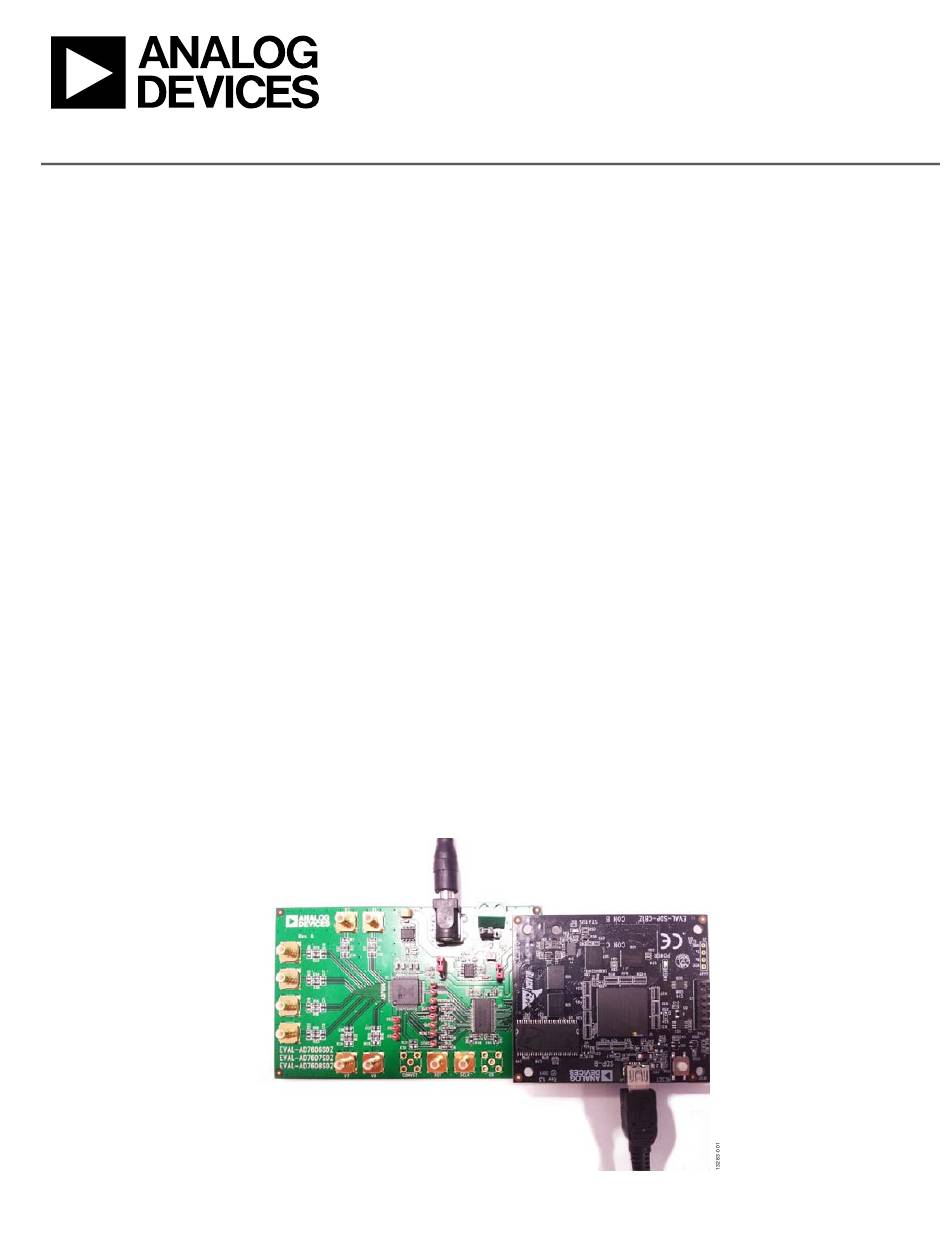

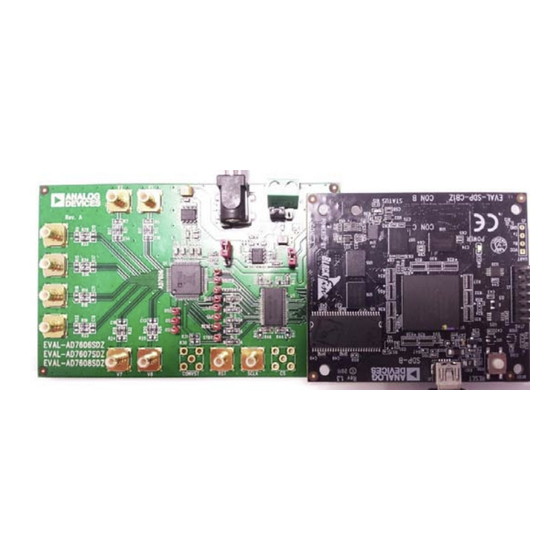

TYPICAL SETUP
Figure 1.
Rev. 0 | Page 1 of 15
EVAL-AD7606SDZ/EVAL-AD7607SDZ/
EVAL-AD7608SDZ User Guide
ONLINE RESOURCES
Documents Needed
AD7606/AD7606-6/AD7606-4/AD7607/AD7608
EVAL-AD7606SDZ/EVAL-AD7606-6SDZ/EVAL-AD7606-4SDZ/
EVAL-AD7607SDZ/EVAL-AD7608SDZ
Required Software
AD7606
evaluation software
Design and Integration Files
Schematics, layout files, bill of materials
EVALUATION BOARD DESCRIPTION
The
EVAL-AD7606SDZ/EVAL-AD7606-6SDZ/EVAL-AD7606-
4SDZ/EVAL-AD7607SDZ/EVAL-AD7608SDZ
featured evaluation board that allows the user to easily evaluate
all the features of the AD7606/AD7606-6/AD7606-4/AD7607/
AD7608
analog-to-digital converters (ADCs). The evaluation
board can be controlled by the
a 120-way
SDP
connector (J102). The
evaluation board to be controlled through the USB port of a PC
using the
AD7606
evaluation software, which is available for
download from the AD7606/AD7606-6/AD7606-4/AD7607/
AD7608
product pages or from the installer CD included in the
evaluation board kit.
On-board components include an
noise LDO and
ADR421
high precision, band gap voltage
reference.
UG-851
16-Bit Simultaneous
data sheets
user guide
are a full
EVAL-SDP-CB1Z SDP
board via
SDP
board allows the
ADP7104ARDZ-5.0
5 V, low
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Analog Devices EVAL-AD7606SDZ
Summary of Contents for Analog Devices EVAL-AD7606SDZ
-
Page 1: Features
EVAL-AD7606SDZ/EVAL-AD7607SDZ/ EVAL-AD7608SDZ User Guide UG-851 One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluating the AD7606/AD7606-6/AD7606-4/AD7607/AD7608 16-Bit Simultaneous Sampling, 8-/6-/4-Channel, SAR ADC FEATURES ONLINE RESOURCES Full featured evaluation board for the AD7606/AD7606-6/... -
Page 2: Table Of Contents
UG-851 EVAL-AD7606SDZ/EVAL-AD7607SDZ/EVAL-AD7608SDZ User Guide TABLE OF CONTENTS Features ....................1 Channel Input ................4 Evaluation Kit Contents ..............1 Evaluation Board Software ...............6 Additional Equipment Needed ............1 Software Installation ..............6 Online Resources ................1 Description of Main Window ............8 Evaluation Board Description............1 Configuration Tab .................8... -
Page 3: Quick Start Guide
Ensure that the various link options are configured as Launch the evaluation software from the Analog Devices outlined in Table 3. subfolder in the Programs menu. Connect an input signal via V1 to V8. -
Page 4: Evaluation Board Hardware
EVAL-SDP-CB1Z SDP board. AD7606-6 is a 6-channel DAS with simultaneous sampling When using the EVAL-AD7606SDZ/EVAL-AD7606-6SDZ/ ADC. An external signal can be applied to V1 to V3 and V5 to EVAL-AD7606-4SDZ/EVAL-AD7607SDZ/EVAL-AD7608SDZ V7. V5 to V7 match V4 to V6. evaluation board with the... - Page 5 EVAL-AD7606SDZ/EVAL-AD7607SDZ/EVAL-AD7608SDZ User Guide UG-851 Table 3. Link Options Link Default Position Function This link is used to select the power supply source for the evaluation board. In Position A, the board is powered with the J1 wall mounted switching supply.
-
Page 6: Evaluation Board Software
UG-851 EVAL-AD7606SDZ/EVAL-AD7607SDZ/EVAL-AD7608SDZ User Guide EVALUATION BOARD SOFTWARE SOFTWARE INSTALLATION EVAL-AD7606SDZ/EVAL-AD7606-6SDZ/EVAL- AD7606-4SDZ/EVAL-AD7607SDZ/EVAL-AD7608SDZ includes the evaluation software on a CD; the software is also available for download from the AD7606/AD7606-6/AD7606-4/ AD7607/AD7608 product pages. There are two parts to the installation: AD7606 evaluation software installation ... - Page 7 EVAL-AD7606SDZ/EVAL-AD7607SDZ/EVAL-AD7608SDZ User Guide UG-851 Installing the Board Drivers drivers installation completes. Click Finish. After the AD7606 evaluation board software installation is complete, the ADI SDP Drivers Setup wizard window opens for the installation of the EVAL-SDP-CB1Z SDP board drivers. The ADI SDP Drivers Setup Wizard opens. Click Next to begin the driver installation process.
-
Page 8: Description Of Main Window
Help Menu Taking Samples • Analog.com. Links to the Analog Devices, Inc., website. To initiate a conversion and capture the sample data, click the Control Buttons, Drop-Down Boxes, and Indicators Sample button or the Continuous button. Both the Sample and... - Page 9 EVAL-AD7606SDZ/EVAL-AD7607SDZ/EVAL-AD7608SDZ User Guide UG-851 Figure 12. AD7606 Evaluation Software Main Window Rev. 0 | Page 9 of 15...
-
Page 10: Waveform Capture Tab
UG-851 EVAL-AD7606SDZ/EVAL-AD7607SDZ/EVAL-AD7608SDZ User Guide WAVEFORM CAPTURE TAB The Waveform tab, as shown in Figure 14, is used for waveform ADC 8 ON/OFF are used to select which channel’s data is displayed (Label 1 in Figure 14). An indicator, located to the capture. -
Page 11: Histogram Tab
EVAL-AD7606SDZ/EVAL-AD7607SDZ/EVAL-AD7608SDZ User Guide UG-851 HISTOGRAM TAB The Histogram tab displays a histogram of the captured ADC codes. It can be used to give an indication of the performance Figure 15 shows the Histogram tab. Raw data is captured and of the ADC in response to dc inputs. The Histogram Analysis passed to the PC for statistical computations. -
Page 12: Ac Testing-Fft Capture
UG-851 EVAL-AD7606SDZ/EVAL-AD7607SDZ/EVAL-AD7608SDZ User Guide The FFT is typically used for examining the performance of the AC TESTING—FFT CAPTURE ADC in the frequency domain. The Spectrum Analysis section Figure 16 shows the FFT capture tab. The FFT tests the traditional contains information about the samples taken, such as ac ac characteristics of the converter and displays a fast Fourier specifications (see Figure 16). -
Page 13: Summary Tab
EVAL-AD7606SDZ/EVAL-AD7607SDZ/EVAL-AD7608SDZ User Guide UG-851 SUMMARY TAB such as SNR, THD, S/N +D, and Dynamic Range (see Label 1 in Figure 17). Waveform, histogram, and FFT plots are also Figure 17 shows the Summary tab. This tab captures and displayed in the summary tab. -
Page 14: Saving Files
UG-851 EVAL-AD7606SDZ/EVAL-AD7607SDZ/EVAL-AD7608SDZ User Guide SAVING FILES OPENING FILES Loading Captured Data The software can save the current captured data for future analysis. The software can capture the current plot images and The software can load previously captured data for analysis. - Page 15 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
