Threading Diagrams - Open Date SPRINT MAJOR Operator Instructions Manual

Sprint Major - Digi60 REV A February 2023
Operating Instructions - Printer
FOIL THREADING (see diagrams below)
Fit an empty foil core onto the rewind mandrel.
Disengage pinch drive roller.
Remove label from a new roll of foil.
Fit new roll of foil onto take-off mandrel (note unwind direction as shown on threading diagram).
Thread foil around all rollers as shown on threading diagram.
Attach end of foil to empty core on rewind mandrel, gloss side facing inwards.
Wind foil on a few turn to track and tension it.
Engage pinch drive roller.
FITTING TYPE/DIE HOLDER
NEVER ASSUME THAT A TYPE/DIE HOLDER IS COLD.
Only pick up the type/die holder by its handle. Ensure that the face of the magnetic catch is clean, open
the red type holder access door (the alarm will sound unless the print switch is off), align the type/die
holder within the two side locators and slide in until the magnet catches on the keep plate. Close the
door.
FOIL FEED ADJUSTING SCREW (refer to page 34)
This adjusts the amount of foil used per print and is located at the front of the printer, above the red type
holder door. Winding in reduces the foil pull. Ensure that the locking nut is fully tightened after
adjustment. A gap of 1 or 2mm is recommended between each portion of used foil.

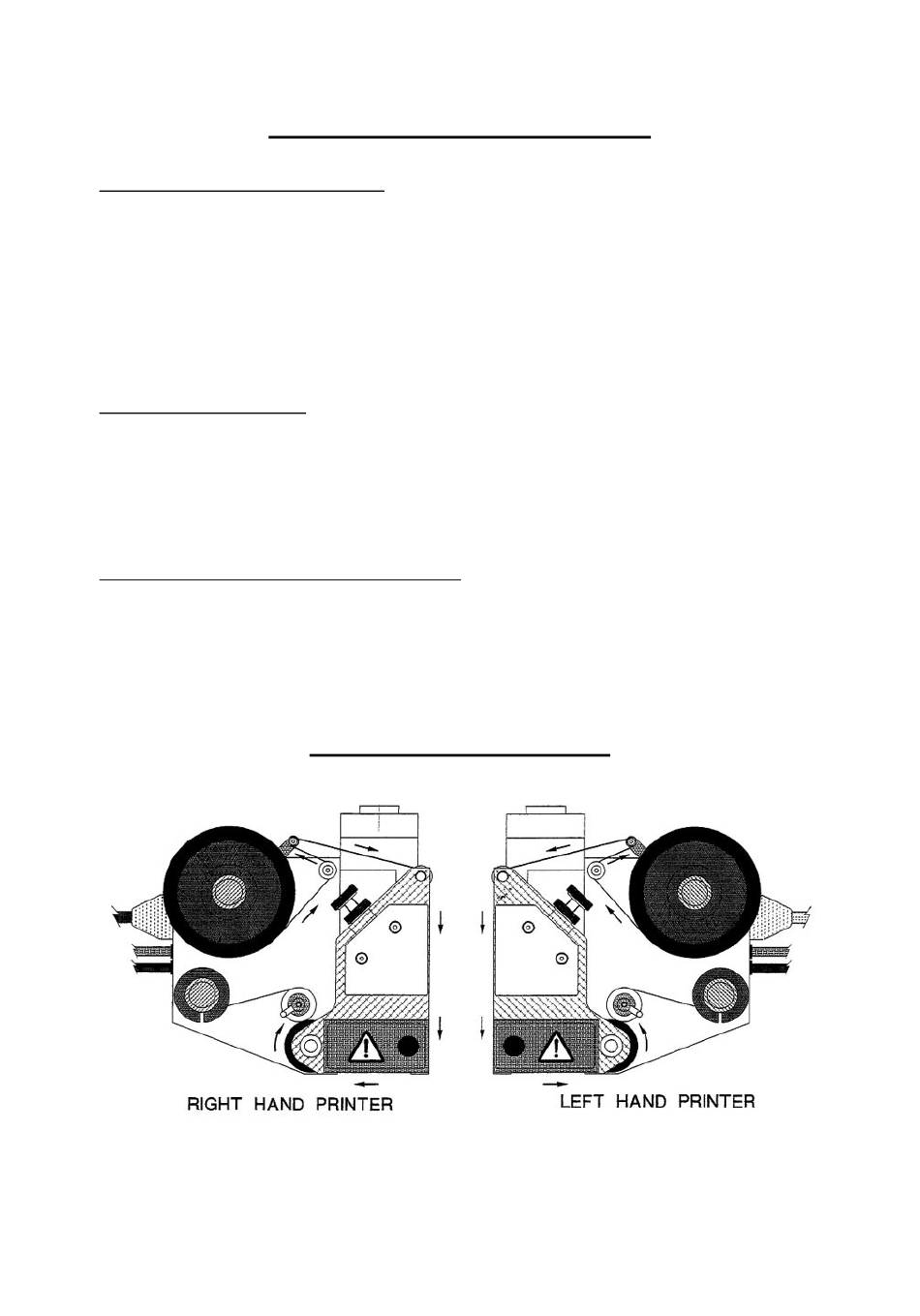

THREADING DIAGRAMS

Page 8
