Open Date SPRINT MAJOR Operator Instructions Manual page 5

Sprint Major - Digi60

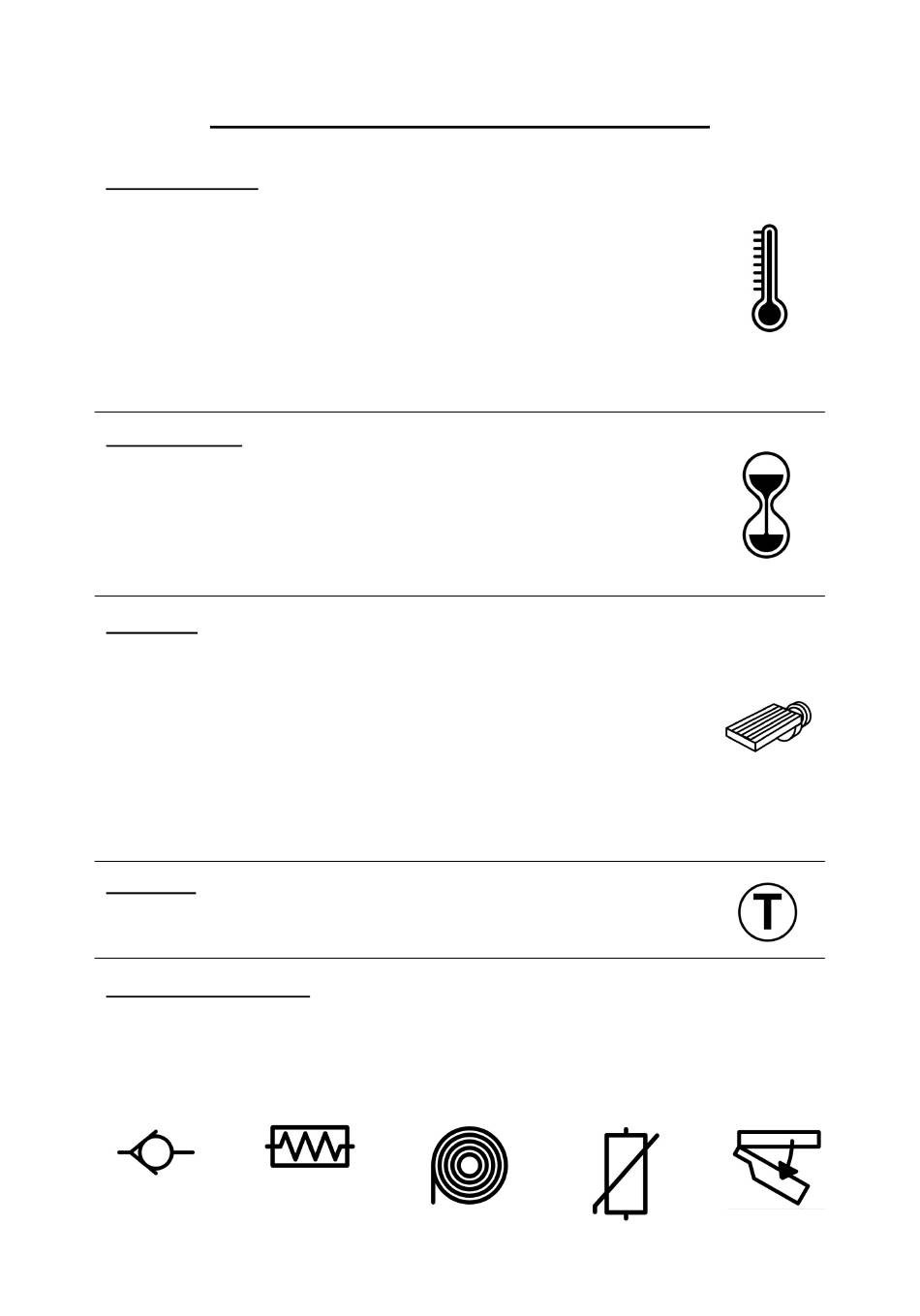

Digi-60 Controller Operating Instructions
Temperature button
To adjust the temperature setting, press and hold down the temperature button
and use the up/down arrow buttons to the left of the display to increase or
decrease the set point. (Required Temperature)
Set point range:- Minimum 70ºC (158ºF), Maximum 240ºC (464ºF).
Note! When selecting operating Modes 1, 3 or 5, the printer will not operate on the
external trigger until the temperature has reached the pre-programmed set point.
(see page 13 for ranges of the mode settings etc.)
In normal operation the temperature will fluctuate by up to +4ºC from the set point.
Print dwell button
To adjust the print dwell setting, press and hold down the print dwell button and
use the up/down arrow buttons to the left of the display to increase or decrease.
This adjustment controls the time the type/die face is in contact with the substrate.
Higher numbers indicate longer dwell times.
Range: 10mS to 2000mS. (0.01 – 2.0 Seconds)
Print switch
Switches the print signal between ON and OFF LINE.

ON LINE; Green LED lit. The printer accepts external trigger signals
(automatic print cycle). The test button does not operate.

OFF LINE; Green LED not lit. The printer does not accept external trigger
signals, The test button operates the printer.
Note! Fault warnings automatically take the printer OFF LINE. When faults are
cleared the printer can resume ON LINE status automatically or require a manual
reset using the print switch. Refer to page 15 "Settings for ON LINE options" to use
this feature.
Test Button
Manually triggers the printer when OFF LINE. (Green LED is not lit).
Note! The test button is disabled when the printer is ON LINE
Fault warnings - Red LEDs
Red LEDs indicate the fault conditions shown below. The printer goes OFF LINE when a fault is
detected.
(Refer to pages 23 & 24 for system faults)
Air pressure
©2023 Open Date Equipment Limited All rights reserved.
REV A
Heater Foil
February 2023
Thermistor Door
Page 5
