Open Date SPRINT MAJOR Operator Instructions Manual page 16

Sprint Major - Digi60 REV A February 2023

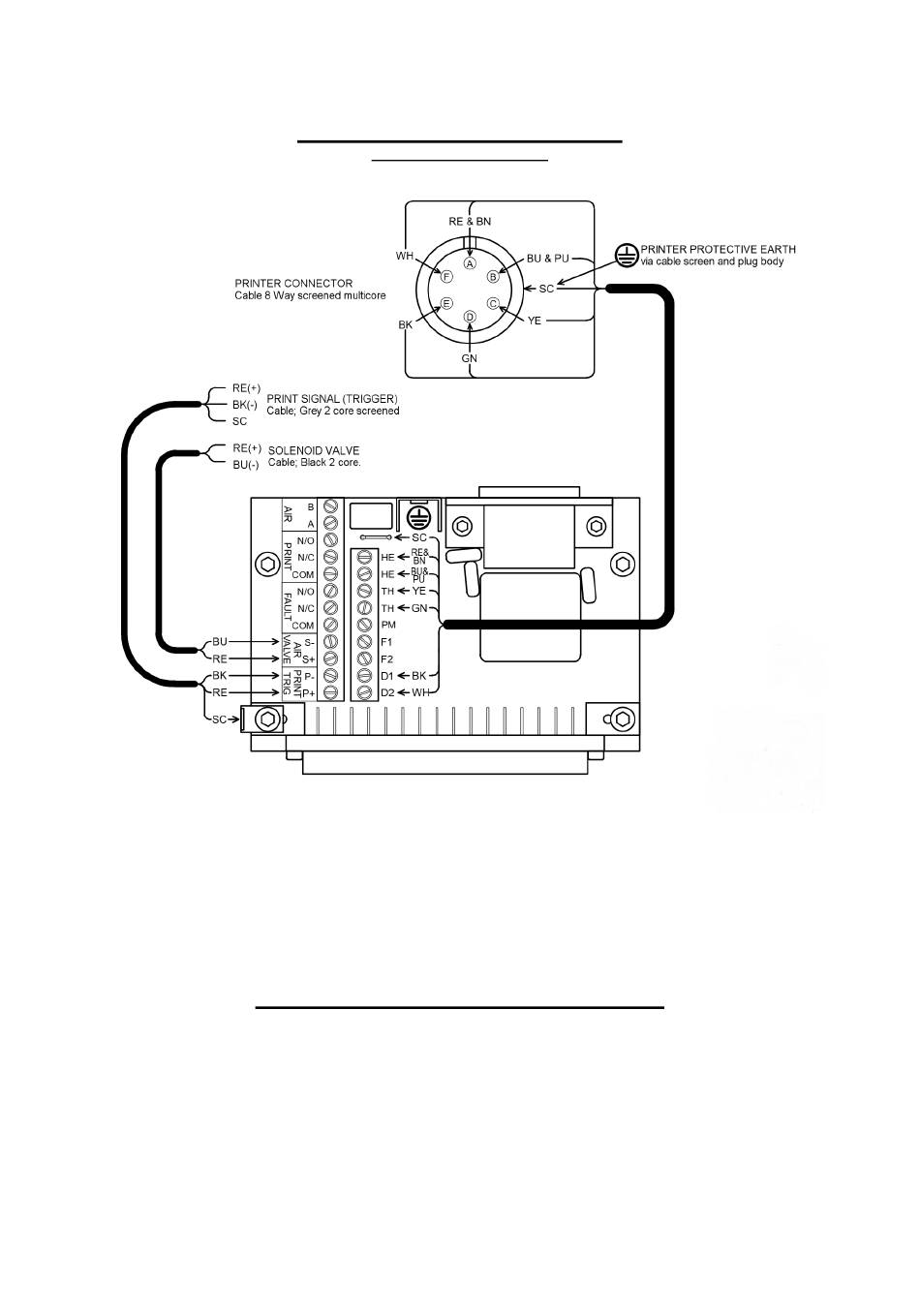

Digi-60 Basic Connections
(See page 18 for details)
KEY TO COLOUR CODES:
BK = black, BN = brown, RE = red, YE = yellow, GN = green, BU = blue,
PU = purple (mauve), GY=grey, TQ=turquoise, WH = white, PK= pink,
SC = screen (shield) or braid of cable
IMPORTANT—TO AVOID SHOCK RISK
THE PRINTER IS EARTHED VIA THE CONNECTOR AND BRAIDED SCREEN OF THE
CONTROLLER CABLE. THE CONNECTOR RETAINING SCREWS MUST BE FULLY TIGHTENED
FOR PROPER EARTHING. THE PRINTER MUST NOT BE USED IF THE CONNECTOR OR
CABLE IS DAMAGED OR THE SCREEN IS NOT ATTACHED TO THE CONNECTOR BODY
Page 16
