DIGI-60 Fault and Print Relay Connections
There are two relays for indicating printer system status to external equipment. The relays may be
used independently or linked in series to obtain full warning status on a single connection.
Each relay has COM, N/C and N/O contacts rated 24V @ 1A maximum
Using the N/O contact of each relay gives a positive indication only when the printer is in normal/
ready condition and the control voltage is present. (Fail safe operation)
FAULT RELAY Changes state when a fault is detected. (door open, foil fail, heater fault,
thermistor fault or low air pressure).
PRINT RELAY Changes state when the printer is ON or OFF line.

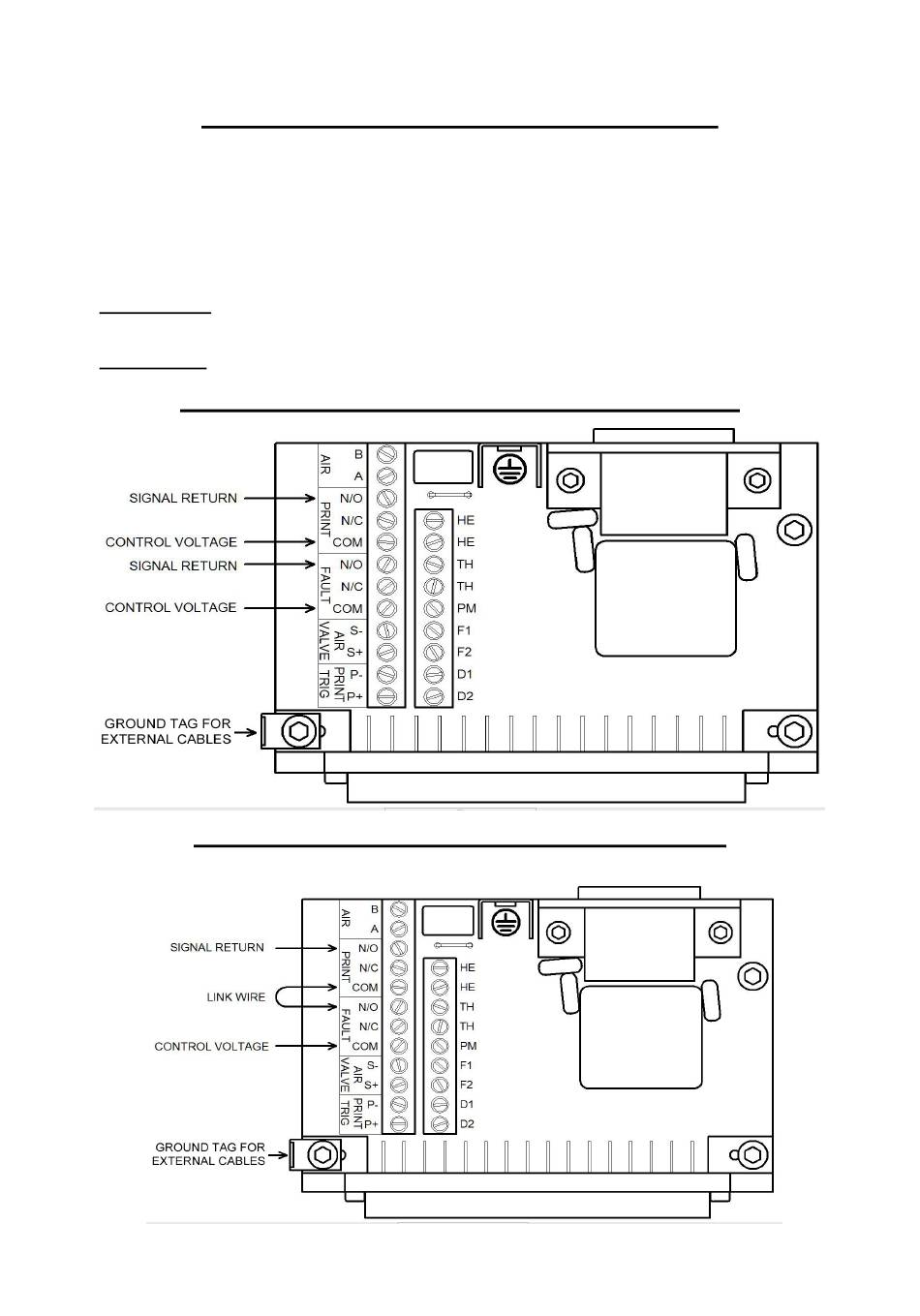

Wiring for Independent Fault/Print Indications
Wiring for Combined Fault/Print Indications
