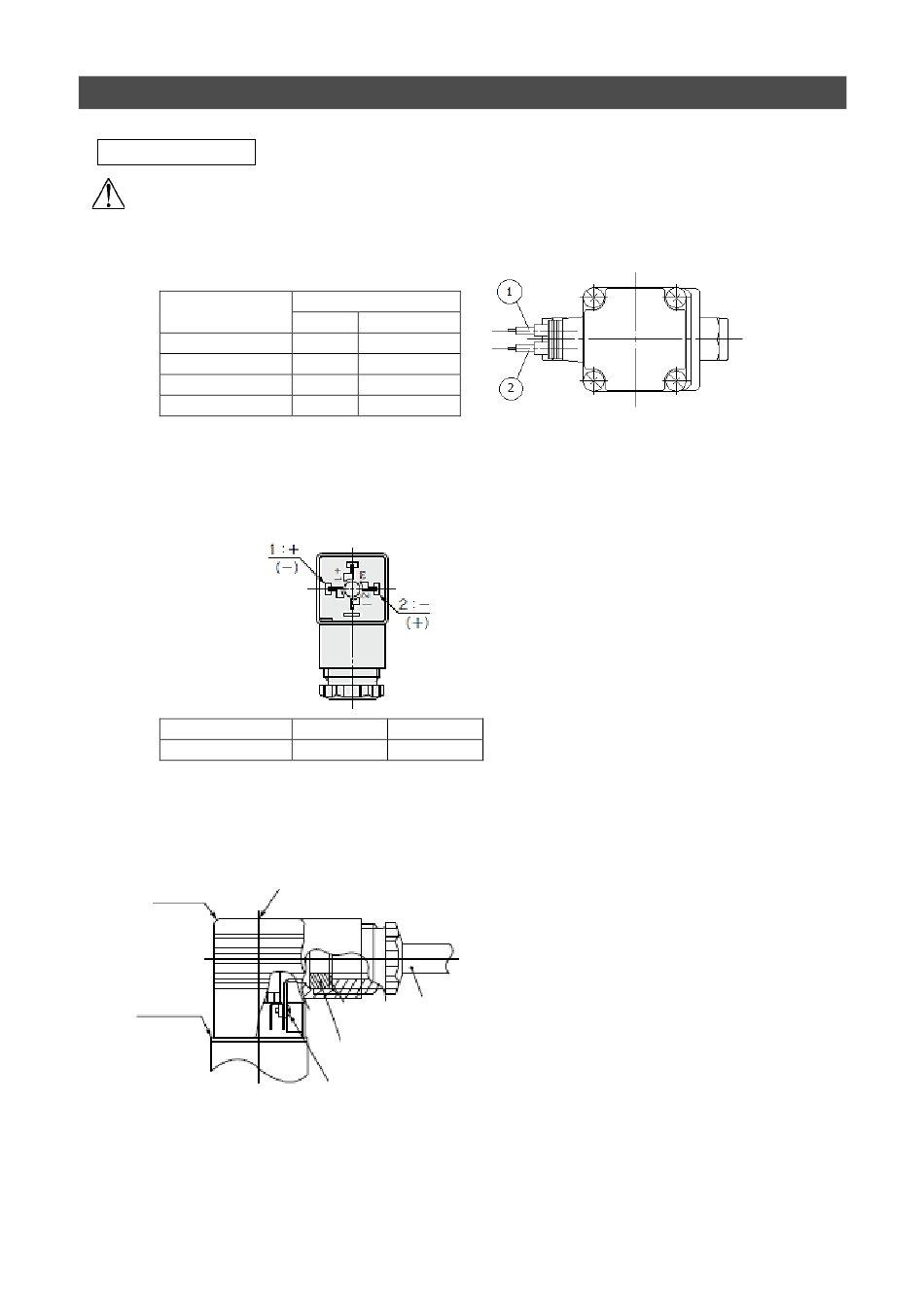

２. Product Specific Precautions 2
Electrical wiring
Caution
■ Grommet
Class B coil: AWG20 Insulator O.D.2.5mm
Rated voltage
DC
100VAC
200VAC
Other AC
* There is no polarity.
■ DIN terminal
Since internal connections are shown below for the DIN terminal, make connections to the
power supply accordingly.
Terminal №
DIN terminal
* There is no polarity.
• Use a heavy-duty cord with cable O.D. of ø6 to ø12 mm.
• Use the tightening torques below for each section.
Connector
Gasket
Note) For cable O.D. of ø9 to ø12 mm, remove the internal parts of the rubber seal before using.
Lead wire color
(1) (2)
Black Red
Blue Blue
Red Red
Grey Grey
1 2
+(-) -(+)
Binding screw with flange
(Tightening torque: 0.5 to 0.6N)
Exclusive cables
(Cable O.D. ø6 to
Washer
Rubber seal
Binding head screw
(Tightening torque: 0.5 to 0.6N·m)
- 7 -
Note)
ø
12mm)
XSA-OMS0001-B
