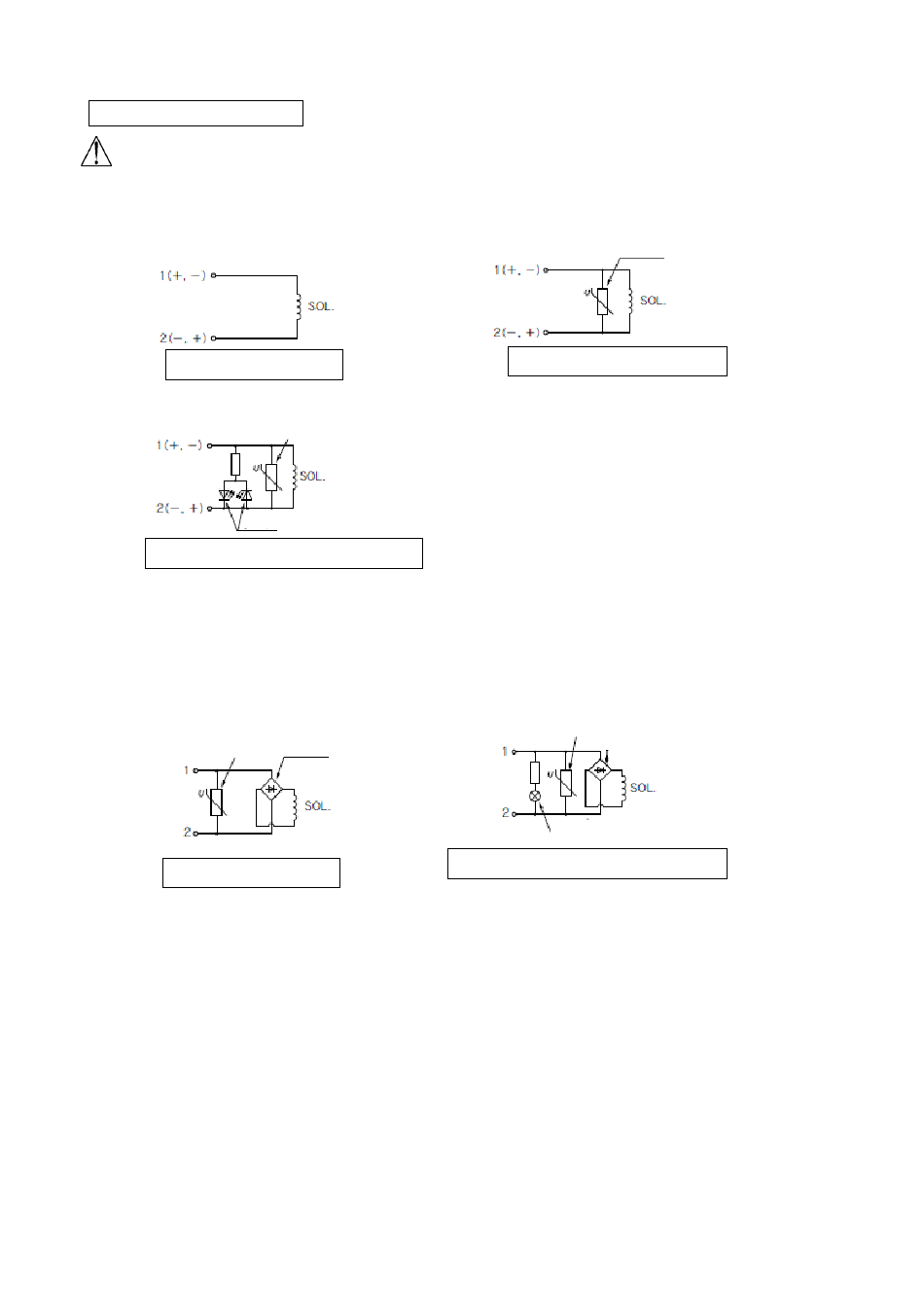

Electrical circuit
CAUTION
[DC Circuit]
Grommet, Flat terminal
Without electrical option
DIN terminal, conduit terminal
Light
With surge voltage suppressor and LED
【AC circuit】
*For AC, the standard product is equipped with surge voltage suppressor.
Grommet, DIN
terminal, conduit
Varistor
Without electrical option
Varistor
DIN terminal, conduit terminal
terminal, conduit
Rectifier element
- 9 -
Grommet, DIN terminal,
terminal, conduit
Varistor
With surge voltage suppressor
Varistor
Rectifier element
Light
With surge voltage suppressor and LED
conduit
