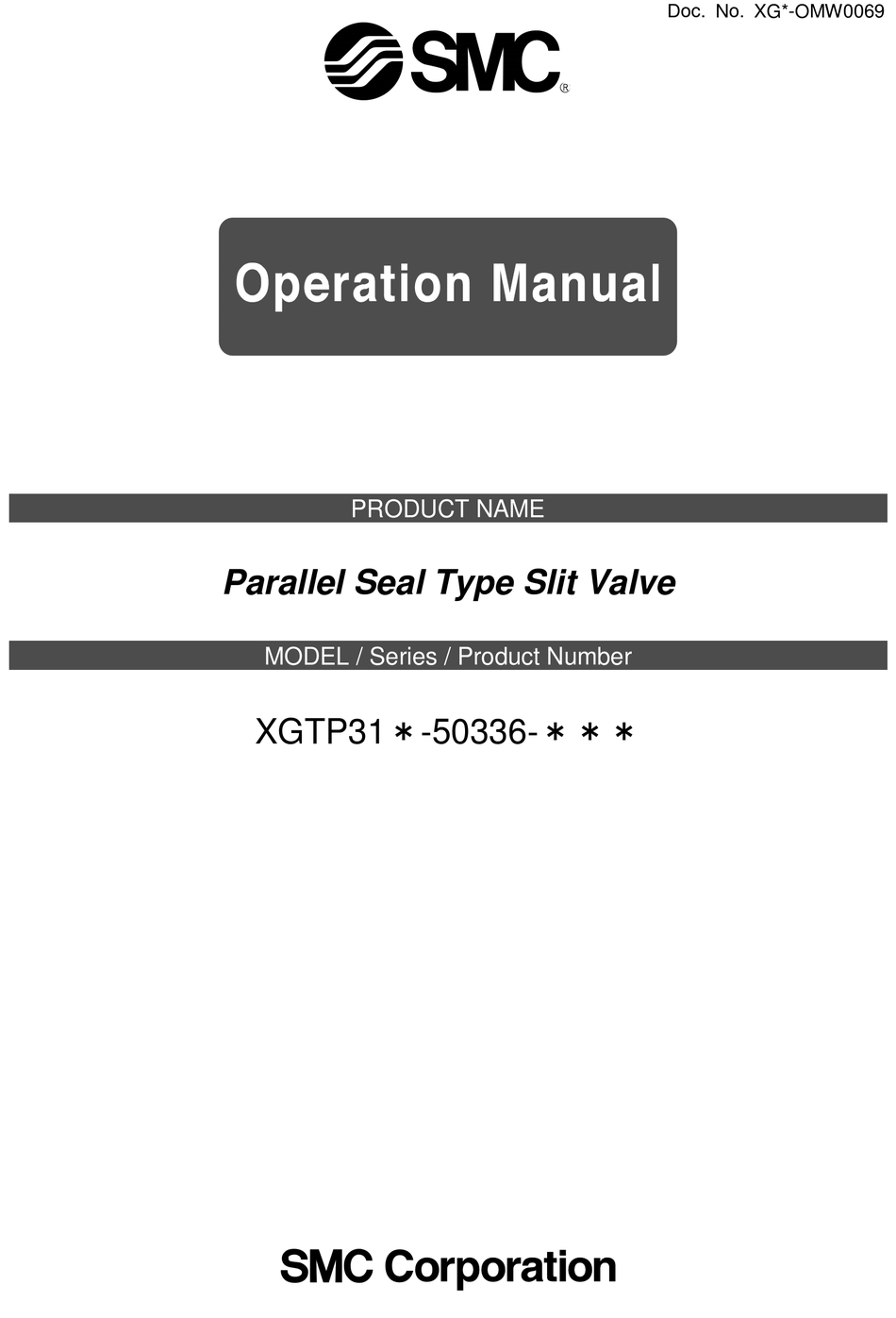

- Page 1 Doc. No. XG*-OMW0069 PRODUCT NAME Parallel Seal Type Slit Valve MODEL / Series / Product Number XGTP31＊-50336-＊＊＊...
-
Page 2: Table Of Contents
Contents Safety Instructions P2～3 1. Specifications 2. How to Order 3. Construction/Operation P6～8 4. Precautions P8～9 5. Spare Parts List 6. Maintenance 7. Troubleshooting Attachment: Maintenance Procedure P12～16 - 1 -... -
Page 3: Safety Instructions
Slit Valve Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC)∗ 1), and other safety regulations. - Page 4 Slit Valve Safety Instructions Caution The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary.
-
Page 5: Specifications
1. Specifications Opening size 50mm×336mm Operating pressure Atmospheric pressure～10 Pilot pressure 0.45～0.6 MPa O-Ring Material : FKM 6.5×10 Pa･m /sec Internal leakage Ⓡ O-Ring Material : Kalrez 6.5×10 Pa･m /sec Internal leakage at Back pressure O-Ring Material : FKM 6.5×10 Pa･m /sec 〈Back pressure... -
Page 6: How To Order
2. How to order XGTP 3 1 2 - 50336 - 1 C N End lock Nil : OPEN/CLOSE end lock N : None Auto switch and the connector (See Table 1) Gate seal material 1: FKM Ⓡ 2: Kalrez 4709 Ⓡ... -
Page 7: Construction/Operation
3. Construction/Operation Fig.1 - 6 -... - Page 8 3-1 Operation Figures 1 and 2B show the state in which Slit ① carrying the work piece is closed and Gate ③ (Sealing material ④) is not clamped (sealed) on Seal surface ②. In Fig. 2A shows Slit valve opens and Slit ① of the body ⑤ is released. So it is a state where the work piece can be transported.
-
Page 9: Precautions
3-7 End lock（in case with End Lock） When the air pressure suddenly disappears at the opening and closing position of Gate, End lock pin ○ protrudes and enters the end lock groove ○ ○ of Roller block ⑨ to regulate the operation of Roller block ⑨... - Page 10 4-5．Speed control Be sure to control speed to open and close the gage in meter out condition. Otherwise, the slit valve life will be adversely affected. Improper use of speed controls can damage end-lock mechanism as well as shorten life time of valve. 4-6．Exhaust piping Please avoid to be influenced exhaust pressure from other solenoid valves to the slit valve.
-
Page 11: Spare Parts List
5．Spare Parts List For XGTP312-50336-*** Description Orderable Part No Applicable Part No Note － Body ASSY XGT300-1-1AS XGTP312-50336-※ ※ ※ For XGTP313-50336-*** Description Orderable Part No Applicable Part No Note － XGTP313-50336-※ ※ ※ Body ASSY XGT300-1-1-3AS Common Spare Parts List Description Orderable Part No Applicable Part No... - Page 12 7．Troubleshooting Status Possible cause Countermeasure Operating pressure is too low Increase pressure to 0.45MPa or more. Foreign materials of Cleaning to Seal Surface Seal surface Scratches on the seal surface Replace Gate of Gate Scratches on the seal Replace Body surface of Body Gate Deterioration of O-ring by...
- Page 13 - 12 -...
- Page 14 - 13 -...
- Page 15 - 14 -...
- Page 16 - 15 -...
- Page 17 - 16 -...
- Page 18 Revision history 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 http://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. © 2011 SMC Corporation All Rights Reserved...
