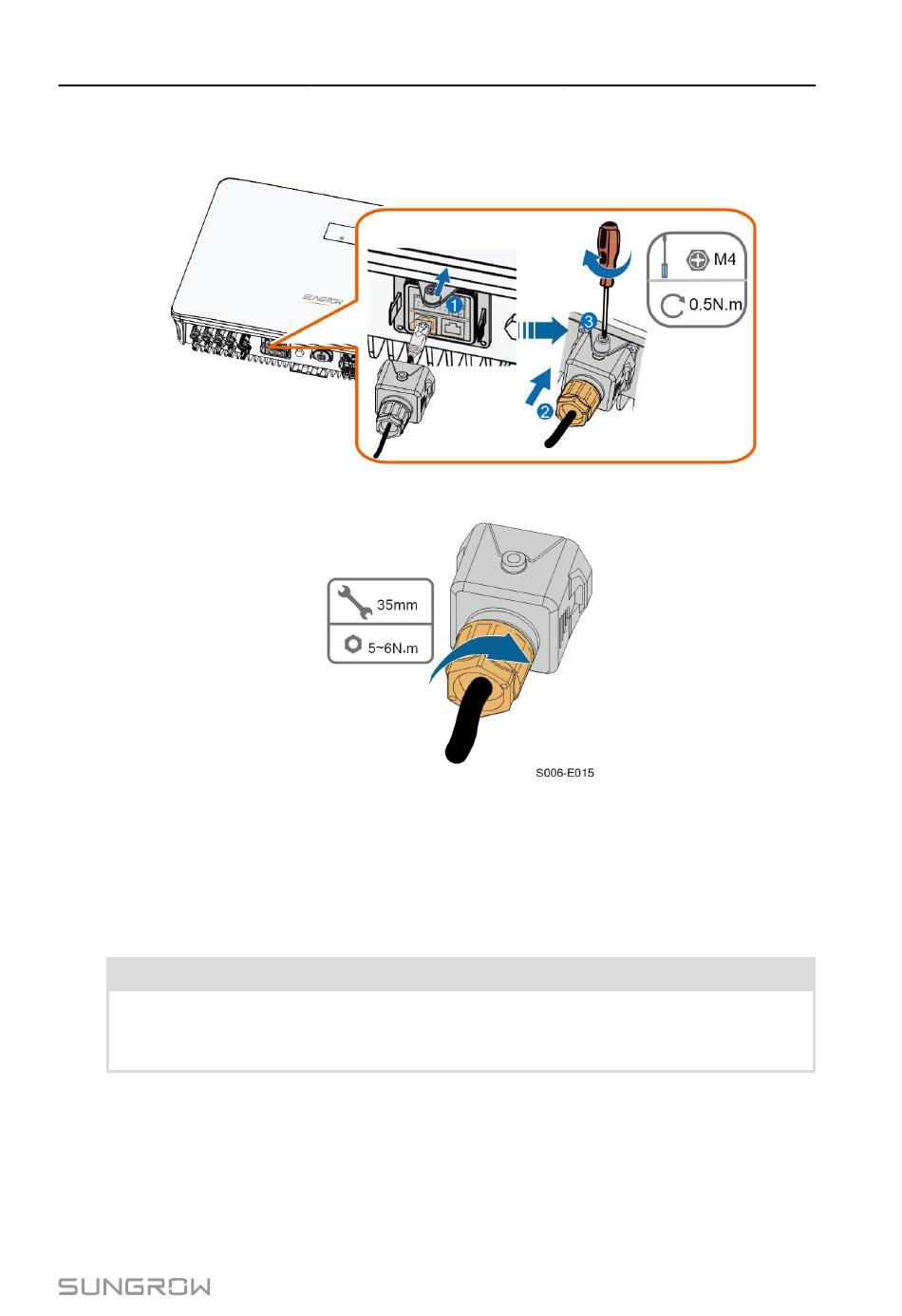

step 5 Plug the wires into the corresponding terminals as shown in the following figure. Ensure that the
wires are securely in place by slightly pulling them.
step 6 Slightly pull out the cable and then fasten the swivel nut. Lock the connector with the screw.
- - End
6.11 Protective Cover Installation (Optional)
NOTICE
• Please install the protective cover after finishing all electrical connections of
the inverter.
The installation procedure of the protective cover is as follows:
6 Electrical Connection
81
