2.6.2 Parallel System
Grid-connected Parallel System (Without Backup Load)
At most 3 inverters can be paralleled in this scenario. All the GRID terminals of the hybrid
inverters are connected in parallel and no load is connected to the BACK-UP port, as shown
in the following figure.
No load is connected to the BACK-UP port in this scenario and the loads are no longer
supplied with energy in the event of a grid failure.

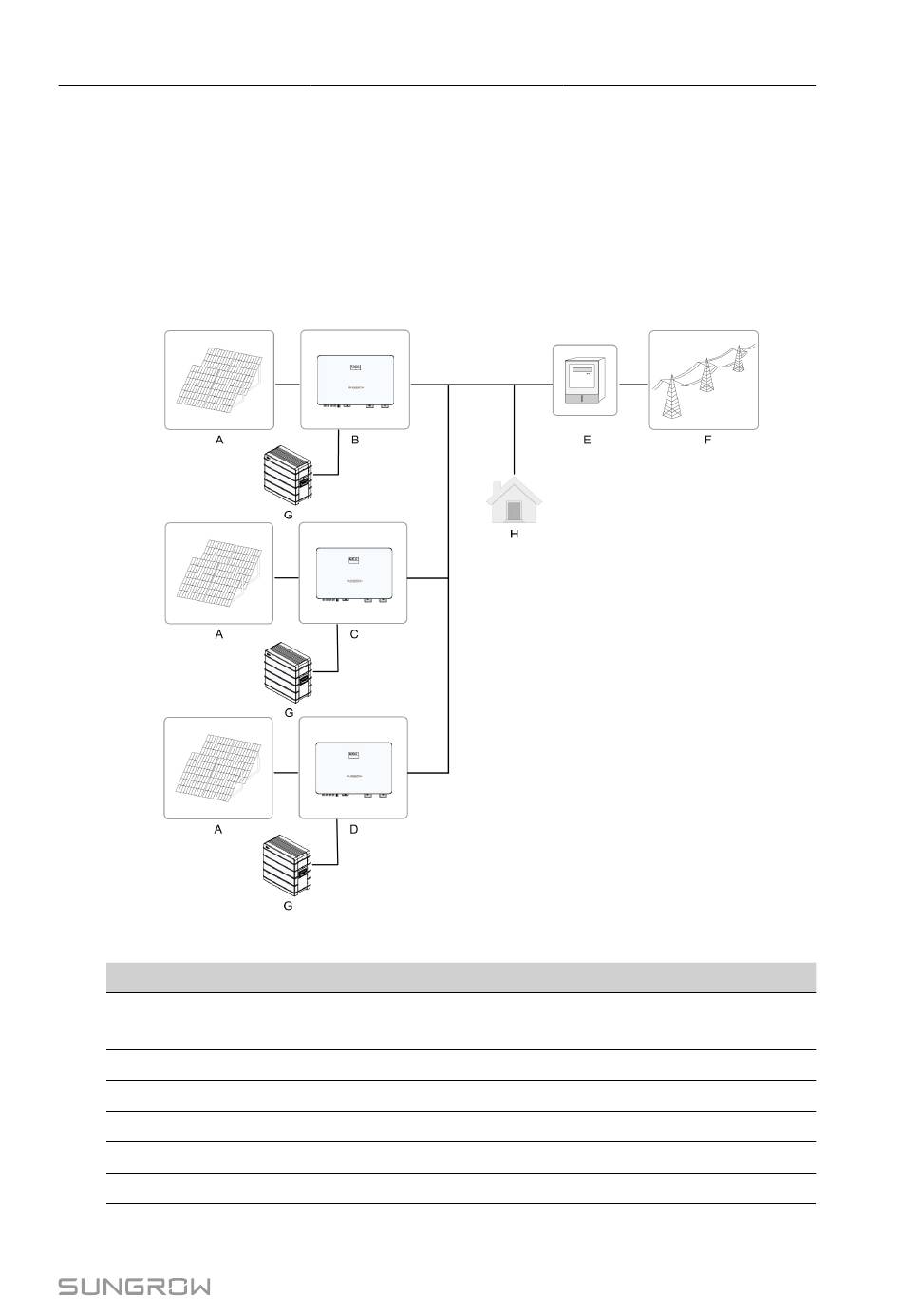

figure 2-4 Grid-connected Parallel System (Without Backup Load)
Item
Description
A
PV strings
B
Master inverter
C
Slave inverter 1
D
Slave inverter 2
E
Metering device
F
Utility grid
Note
Compatible with monocrystalline silicon, polycrystalline
silicon, and thin-film modules without grounding.
SH8.0RS, SH10RS
SH8.0RS, SH10RS
SH8.0RS, SH10RS
Meter cupboard with power distribution system.
TT，TN-C，TN-S, TN-C-S.
