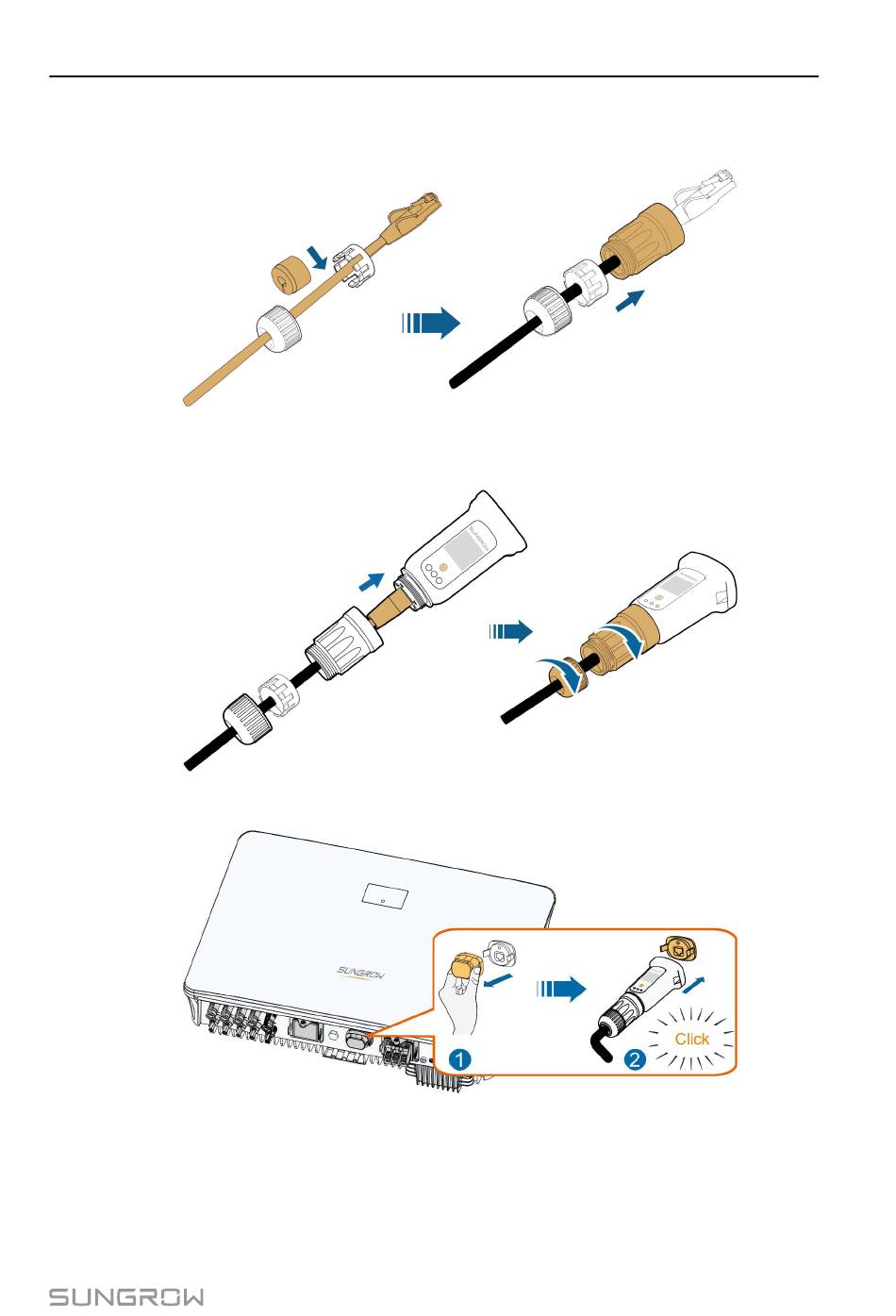

step 4 Thread the network cable through the swivel nut and gasket. Afterwards, route the cable into the
opening of the sealing. Finally, insert the cable through the housing.
step 5 Insert the RJ45 plug into the front plug connector until there is an audible click and tighten the
housing. Install the gasket and fasten the swivel nut.
step 6 Remove the waterproof lid from the terminal and install WiNet-S2.
step 7 Slightly shake it by hand to determine whether it is installed firmly.
- - End
