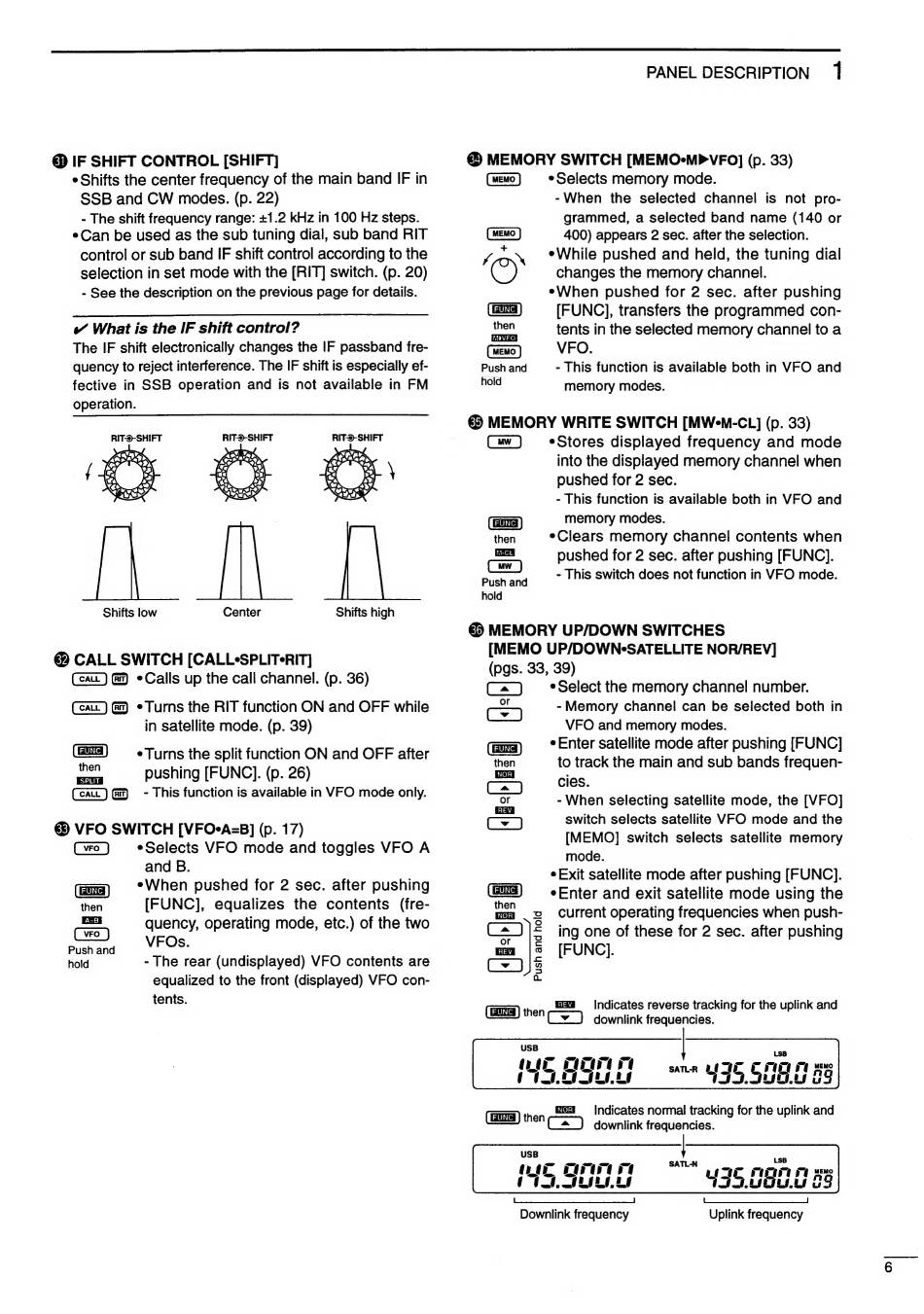

© IF SHIFT CONTROL [SHIFT]
e Shifts the center frequency of the main band IF in
SSB and CW modes. (p. 22)
- The shift frequency range: +1.2 kHz in 100 Hz steps.
Can be used as the sub tuning dial, sub band RIT
control or sub band IF shift control according to the
selection in set mode with the [RIT] switch. (p. 20)
- See the description on the previous page for details.
What is the IF shift control?
The IF shift electronically changes the IF passband fre-
quency to reject interference. The IF shift is especially ef-
fective in SSB operation and is not available in FM
operation.
RIT-©-SHIFT RIT--SHIFT RITƏ-SHIFT
Shifts low Center
Shifts high
€ CALL SWITCH [CALL¢SPLIT-RIT]
@ Calls up the call channel. (p. 36)
e Turns the RIT function ON and OFF while
in satellite mode. (p. 39)
e Turns the split function ON and OFF after
pushing [FUNC]. (p. 26)
- This function is available in VFO mode only.
@ VFO SWITCH [VFO+¢A=B] (p. 17)
VFO e Selects VFO mode and toggles VFO A
and B.
When pushed for 2 sec. after pushing
then [FUNC], equalizes the contents (fre-
cari ;
quency, operating mode, etc.) of the two
C) VFOs.
ush and :
hold - The rear (undisplayed) VFO contents are
equalized to the front (displayed) VFO con-
tents.
PANEL DESCRIPTION 1
@ MEMORY SWITCH [MEMO-MPVFO] (p. 33)
e Selects memory mode.
-When the selected channel is not pro-
grammed, a selected band name (140 or
400) appears 2 sec. after the selection.
Zan °While pushed and held, the tuning dial
©) changes the memory channel.
eWhen pushed for 2 sec. after pushing
[FUNC], transfers the programmed con-
tents in the selected memory channel to a
VFO.
Push and - This function is available both in VFO and
hold
memory modes.
© MEMORY WRITE SWITCH [MW-M-CL] (p. 33)
Cw) eStores displayed frequency and mode
into the displayed memory channel when
pushed for 2 sec.
- This function is available both in VFO and
memory modes.
then eClears memory channel contents when
a pushed for 2 sec. after pushing [FUNC].
Cow) - This switch does not function in VFO mode.
Push and
hold
€ MEMORY UP/DOWN SWITCHES
[MEMO UP/DOWNSSATELLITE NOR/REV]
(pgs. 33, 39)
Cx) °¢Select the memory channel number.
E=] - Memory channel can be selected both in
VFO and memory modes.
FUNG e Enter satellite mode after pushing [FUNC]
then to track the main and sub bands frequen-
NOR] .
Eaj. A
or - When selecting satellite mode, the [VFO]
: :
Cy) switch selects satellite VFO mode and the
[MEMO] switch selects satellite memory
mode.
e Exit satellite mode after pushing [FUNC].
eEnter and exit satellite mode using the
current operating frequencies when push-
ing one of these for 2 sec. after pushing
[FUNC].
Q
Push and hold
maa Indicates reverse tracking for the uplink and
downlink frequencies.
(GEE) then >
SATLR Yas onans r ng
ma Indicates normal tracking for the uplink and
ERE) then downlink frequencies.
4
SATL-N tse
IC Trt weve
4 Jaudy. 29
Downlink frequency Uplink frequency
