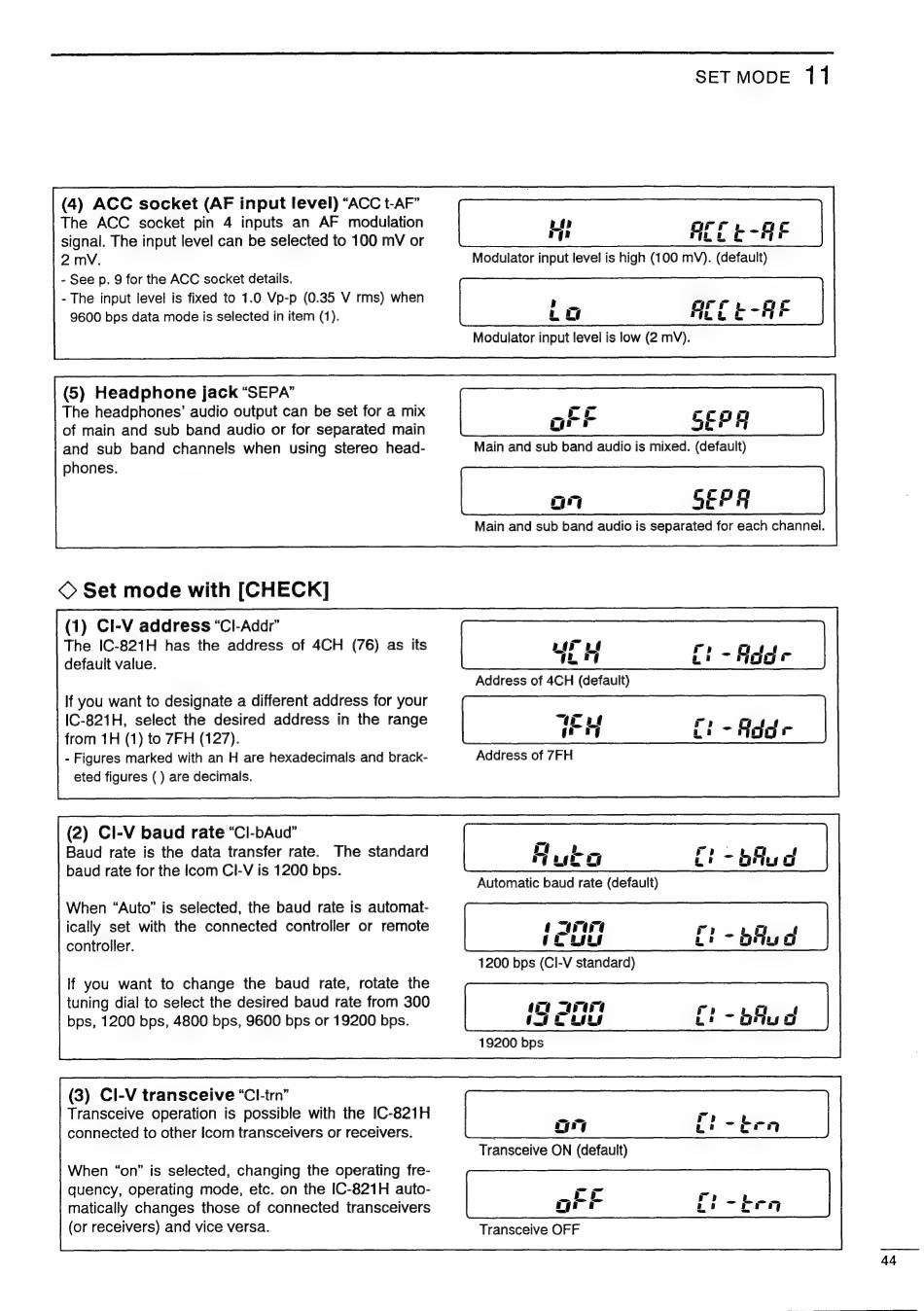

(4) ACC socket (AF input level) "ACC t-AF"
The ACC socket pin 4 inputs an AF modulation
signal. The input level can be selected to 100 mV or
2 mV.
- See p. 9 for the ACC socket details.
- The input level is fixed to 1.0 Vp-p (0.35 V rms) when
9600 bps data mode is selected in item (1).
(5) Headphone jack "SEPA"
The headphones' audio output can be set for a mix
of main and sub band audio or for separated main
and sub band channels when using stereo head-
phones.
© Set mode with [CHECK]
(1) Cl-V address "Cl-Addr'"
The IC-821H has the address of 4CH (76) as its
default value.
If you want to designate a different address for your
IC-821H, select the desired address in the range
from 1H (1) to 7FH (127).
- Figures marked with an H are hexadecimals and brack-
eted figures ( ) are decimals.
(2) Cl-V baud rate "Cl-bAud"
Baud rate is the data transfer rate. The standard
baud rate for the Icom CI-V is 1200 bps.
When "Auto" is selected, the baud rate is automat-
ically set with the connected controller or remote
controller.
If you want to change the baud rate, rotate the
tuning dial to select the desired baud rate from 300
bps, 1200 bps, 4800 bps, 9600 bps or 19200 bps.
(3) CI-V transceive "Cl-trn"
Transceive operation is possible with the IC-821H
connected to other Icom transceivers or receivers.
When "on" is selected, changing the operating fre-
quency, operating mode, etc. on the IC-821H auto-
matically changes those of connected transceivers
(or receivers) and vice versa.
SET MODE 11
Main and sub band audio is mixed. (default)
Main and sub band audio is separated for each channel.
oir ae
1'i
Address of 4CH (default)
rate (default)
L ores L
- baud
E Ts hu g
19200 bps
ag
Transceive ON (default)
Transceive OFF
44
