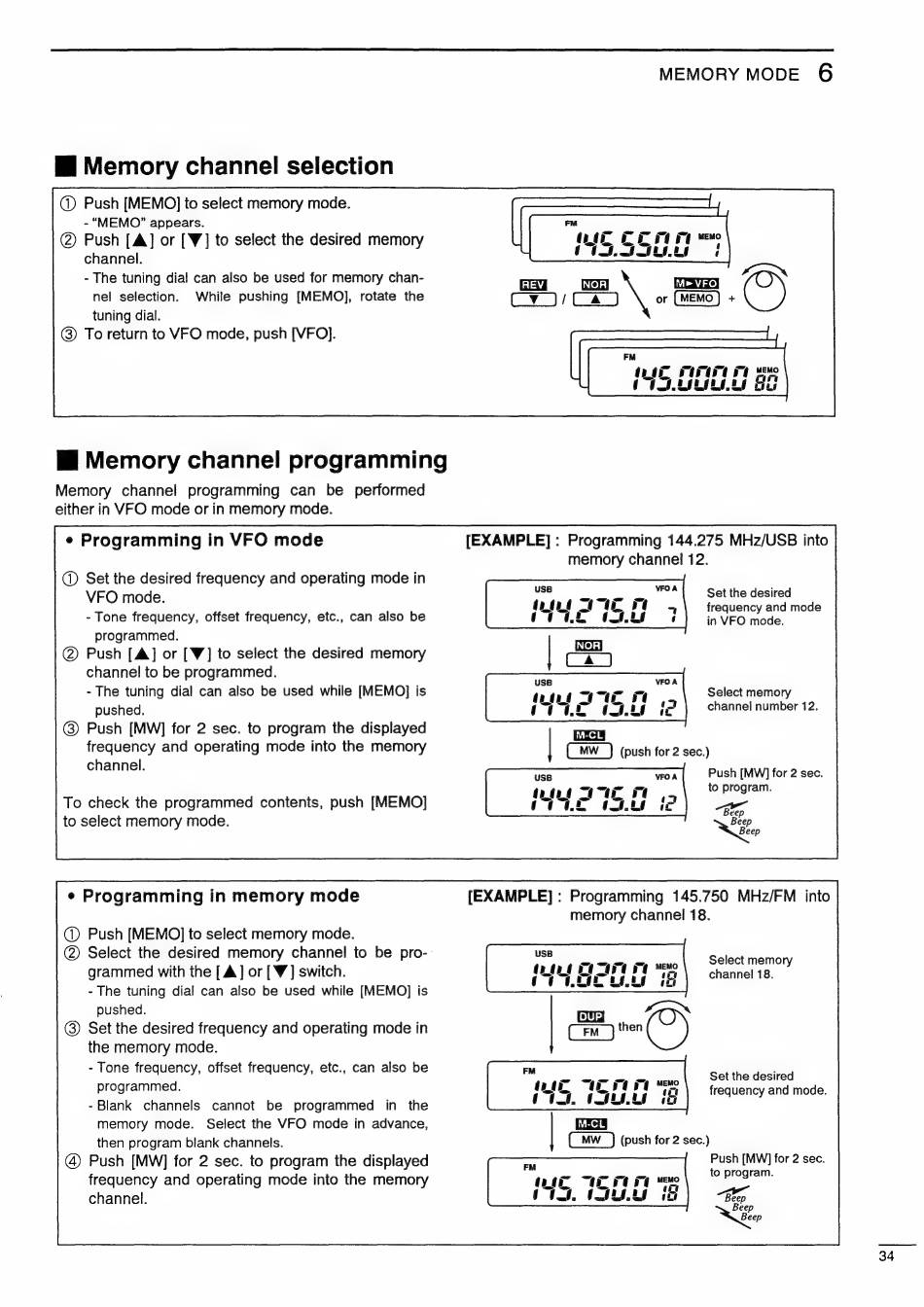

Icom IC-821H Instruction Manual page 37

Mi Memory channel selection
@ Push [MEMO] to select memory mode.
- "MEMO" appears.
(2) Push [A] or [V] to select the desired memory
channel.
- The tuning dial can also be used for memory chan-
nel selection. While pushing [MEMO], rotate the
tuning dial.
@) To return to VFO mode, push [VFO].
Mi Memory channel programming
Memory channel programming can be performed
either in VFO mode or in memory mode.
e Programming in VFO mode
(@) Set the desired frequency and operating mode in
VFO mode.
- Tone frequency, offset frequency, etc., can also be
programmed.
© Push [A] or [V] to select the desired memory
channel to be programmed.
- The tuning dial can also be used while [MEMO] is
pushed.
@) Push [MW] for 2 sec. to program the displayed
frequency and operating mode into the memory
channel.
To check the programmed contents, push [MEMO]
to select memory mode.
e Programming in memory mode
M Push [MEMO] to select memory mode.
®© Select the desired memory channel to be pro-
grammed with the [ A] or [ V ] switch.
- The tuning dial can also be used while [MEMO] is
pushed.
© Set the desired frequency and operating mode in
the memory mode.
- Tone frequency, offset frequency, etc., can also be
programmed.
- Blank channels cannot be programmed in the
memory mode. Select the VFO mode in advance,
then program blank channels.
@ Push [MW] for 2 sec. to program the displayed
frequency and operating mode into the memory
channel.
MEMORY MODE 6
[EXAMPLE] : Programming 144.275 MHz/USB into
memory channel 12.
Set the desired
frequency and mode
in VFO mode.
Select memory
channel number 12.
Push [MW] for 2 sec.
to program.
[EXAMPLE] : Programming 145.750 MHz/FM into
memory channel 18.
Select memory
channel 18.
Set the desired
frequency and mode.
Push [MW] for 2 sec.
to program.
34
