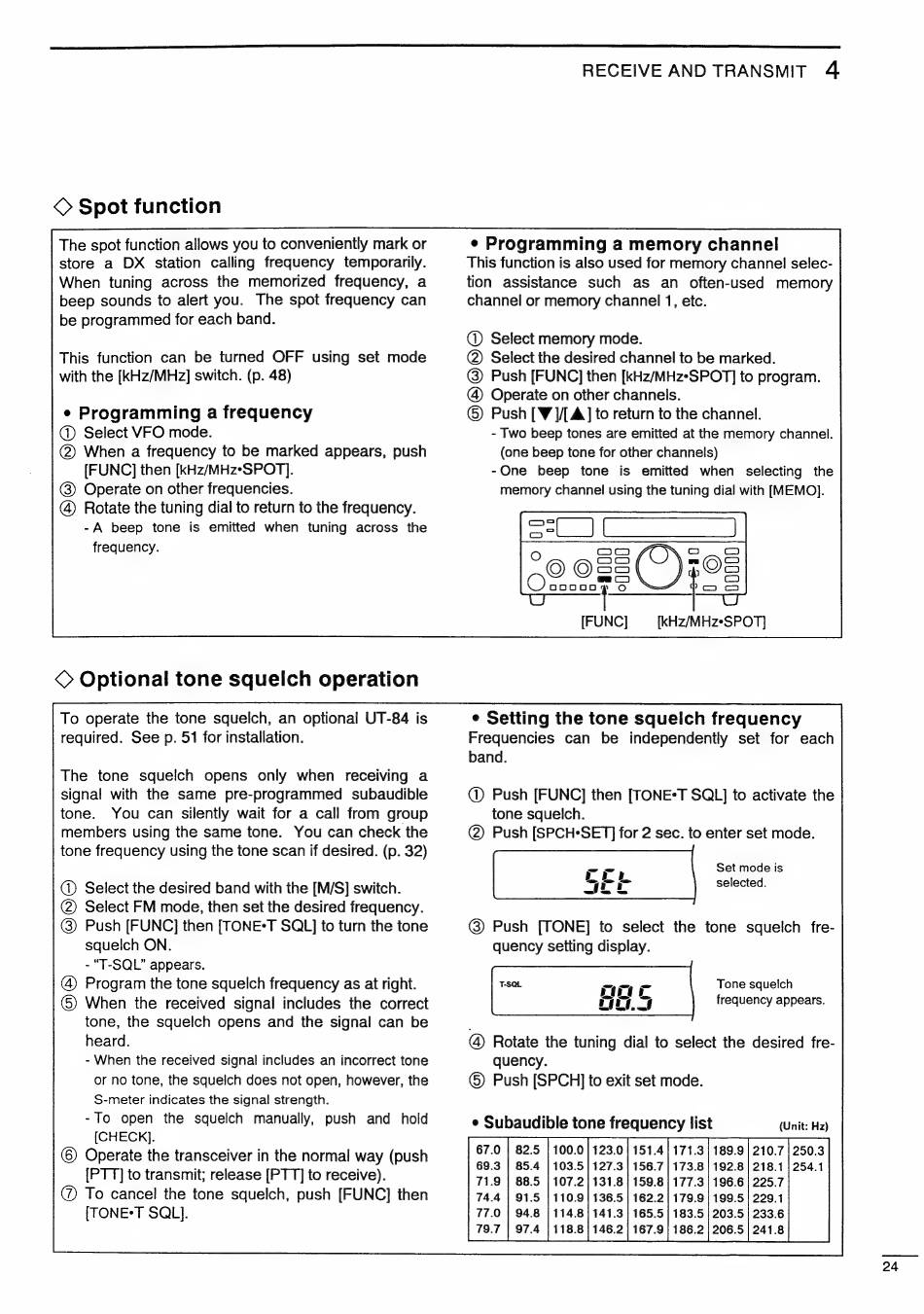

Icom IC-821H Instruction Manual page 27

The spot function allows you to conveniently mark or
store a DX station calling frequency temporarily.
When tuning across the memorized frequency, a
beep sounds to alert you. The spot frequency can
be programmed for each band.
This function can be turned OFF using set mode
with the [kHz/MHz] switch. (p. 48)
¢ Programming a frequency
@ Select VFO mode.
© When a frequency to be marked appears, push
[FUNC] then [kHz/MHz*SPOT].
@) Operate on other frequencies.
) Rotate the tuning dial to return to the frequency.
-A beep tone is emitted when tuning across the
frequency.
© Optional tone squelch operation
To operate the tone squelch, an optional UT-84 is
required. See p. 51 for installation.
The tone squelch opens only when receiving a
signal with the same pre-programmed subaudible
tone. You can silently wait for a call from group
members using the same tone. You can check the
tone frequency using the tone scan if desired. (p. 32)
@) Select the desired band with the [M/S] switch.
(2) Select FM mode, then set the desired frequency.
(3) Push [FUNC] then [TONE-T SQL] to turn the tone
squelch ON.
- "T-SQL" appears.
@) Program the tone squelch frequency as at right.
© When the received signal includes the correct
tone, the squelch opens and the signal can be
heard.
- When the received signal includes an incorrect tone
or no tone, the squelch does not open, however, the
S-meter indicates the signal strength.
- To open the squelch manually, push and hold
[CHECK].
© Operate the transceiver in the normal way (push
[PTT] to transmit; release [PTT] to receive).
@ To cancel the tone squelch, push [FUNC] then
[TONE*T SQL].
RECEIVE AND TRANSMIT 4
¢ Programming a memory channel
This function is also used for memory channel selec-
tion assistance such as an often-used memory
channel or memory channel 1, etc.
@ Select memory mode.
@) Select the desired channel to be marked.
@ Push [FUNC] then [kHz/MHz*SPOT] to program.
@ Operate on other channels.
© Push [W]/[A] to return to the channel.
- Two beep tones are emitted at the memory channel.
(one beep tone for other channels)
-One beep tone is emitted when selecting the
memory channel using the tuning dial with [MEMO].
[FUNC] [kKHz/MHz*SPOT]
e Setting the tone squelch frequency
Frequencies can be independently set for each
band.
@ Push [FUNC] then [TONE*T SQL] to activate the
tone squelch.
@ Push [SPCH-SET] for 2 sec. to enter set mode.
(3) Push [TONE] to select the tone squelch fre-
quency setting display.
Set mode is
selected.
Tone squelch
frequency appears.
@ Rotate the tuning dial to select the desired fre-
quency.
©) Push [SPCH] to exit set mode.
e Subaudible tone frequency list (Unit: Hz)
