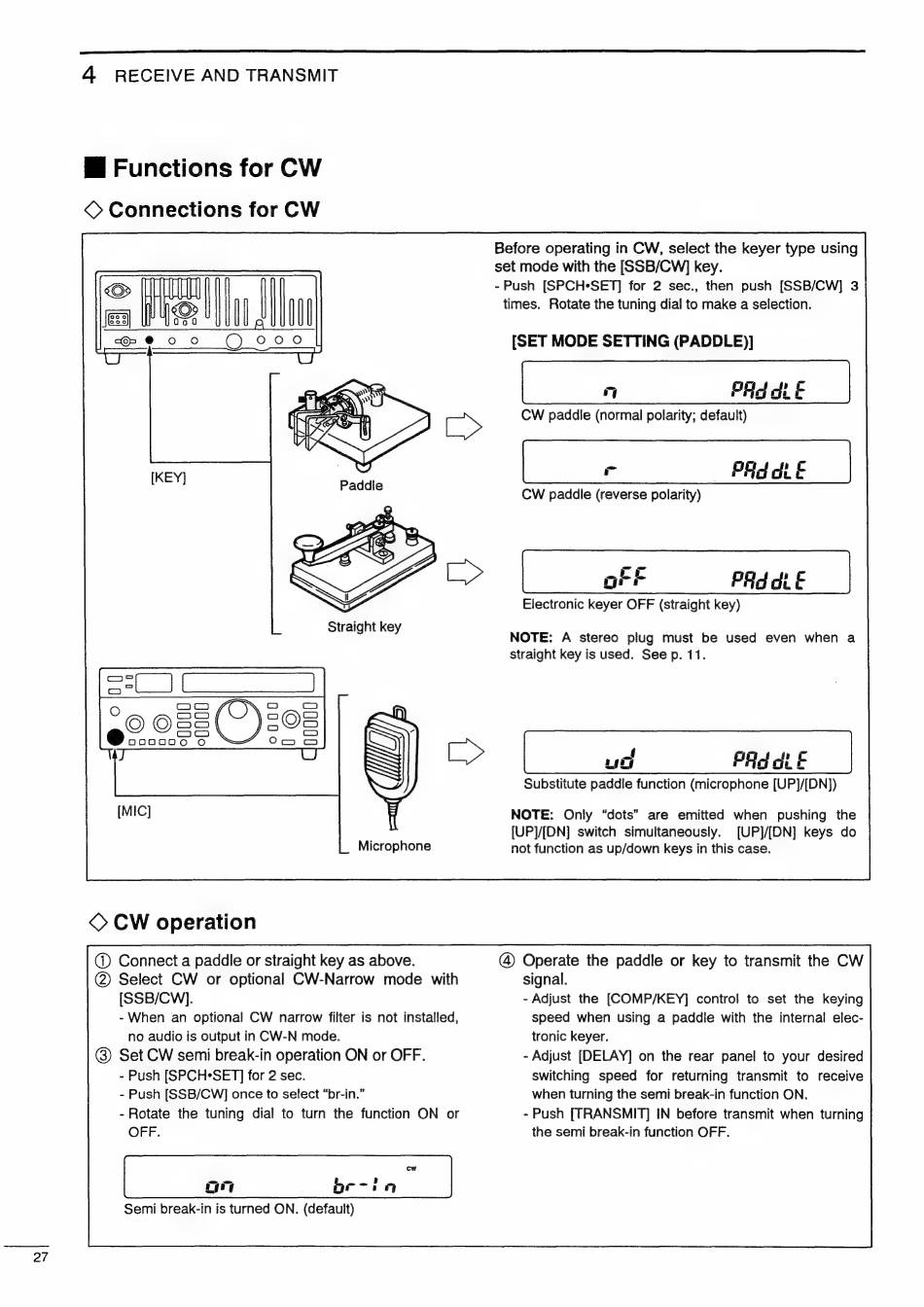

RECEIVE AND TRANSMIT
Mi Functions for CW
< Connections for CW
Before operating in CW, select the keyer type using
set mode with the [SSB/CW] key.
- Push
[SPCHeSET]
for 2 sec., then push [SSB/CW]
3
times. Rotate the tuning dial to make a selection.
[SET MODE SETTING (PADDLE)]
"4
CW paddle (normal polarity; default)
r
PŘddLÉ
CW paddle (reverse polarity)
PAd di é
Electronic keyer OFF (straight key)
NOTE:
A stereo plug must be used
even when
a
straight key is used. See p. 11.
O
CaCO
CoCo
© Oss
Coco
o000000
O
i
-
we
PHd otf
Substitute paddle function (microphone [UP]/[DN])
NOTE:
Only "dots"
are
emitted
when
pushing
the
{UP]/[DN] switch simultaneously.
[UP]/[DN] keys do
Microphone
not function as up/down keys in this case.
© CW operation
© Connect a paddle or straight key as above.
@) Operate the paddle or key to transmit the CW
(2) Select CW or optional CW-Narrow
mode with
signal.
[SSB/CW].
- Adjust the [COMP/KEY] control to set the keying
- When an optional CW narrow filter is not installed,
speed when using a paddle with the internal elec-
no audio is output in CW-N mode.
tronic keyer.
@ Set CW semi break-in operation ON or OFF.
- Adjust [DELAY] on the rear panel to your desired
- Push [SPCH*SET] for
2 sec.
switching speed for returning transmit to receive
- Push [SSB/CW] once to select "br-in."
when turning the semi break-in function ON.
- Rotate the tuning dial to turn the function ON
or
- Push [TRANSMIT]
IN before transmit when turning
the semi break-in function OFF.
