2

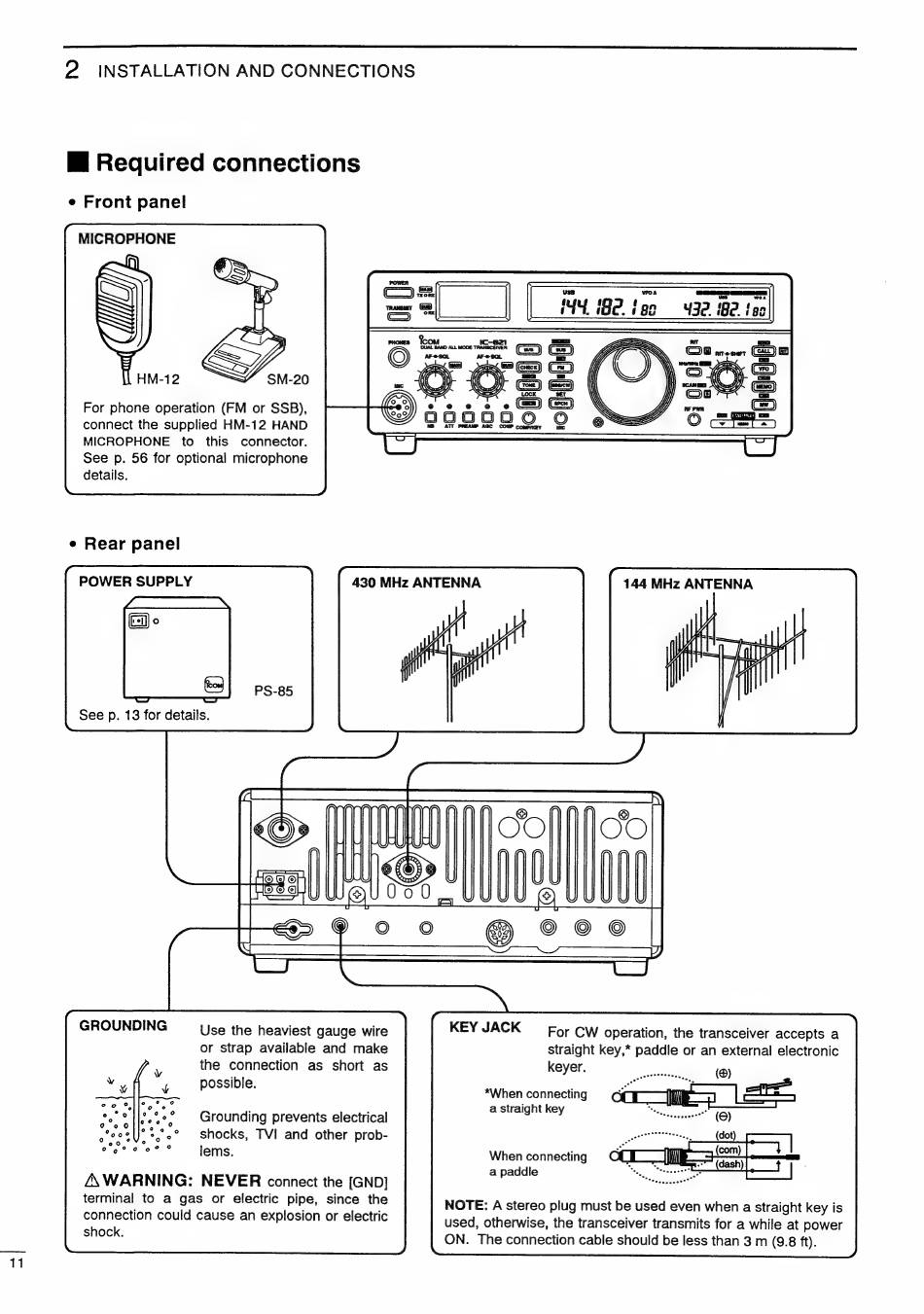

INSTALLATION AND CONNECTIONS
li Required connections
e Front panel
MICROPHONE
M4, 192, feo 432.182. tao
For phone operation (FM or SSB),
connect the supplied HM-12 HAND
MICROPHONE
to
this
connector.
See p. 56 for optional microphone
details.
e Rear panel
POWER SUPPLY
See p. 13 for details.
GROUNDING
Use the heaviest gauge wire
KEY JACK
or strap available and make
the connection
as short as
possible.
For CW operation, the transceiver accepts a
straight key,* paddle or an external electronic
keyer.
*When connecting
;
;
a straight ke
Grounding prevents electrical
y
shocks, TVI and other prob-
lems.
When connecting
ddl
AWARNING: NEVER connect the [GND]
aE
terminal
to a gas
or electric
pipe, since the
connection could cause an explosion or electric
shock.
NOTE: A stereo plug must be used even when a straight key is
used, otherwise, the transceiver transmits for a while at power
ON. The connection cable should be less than 3 m (9.8 ft).
