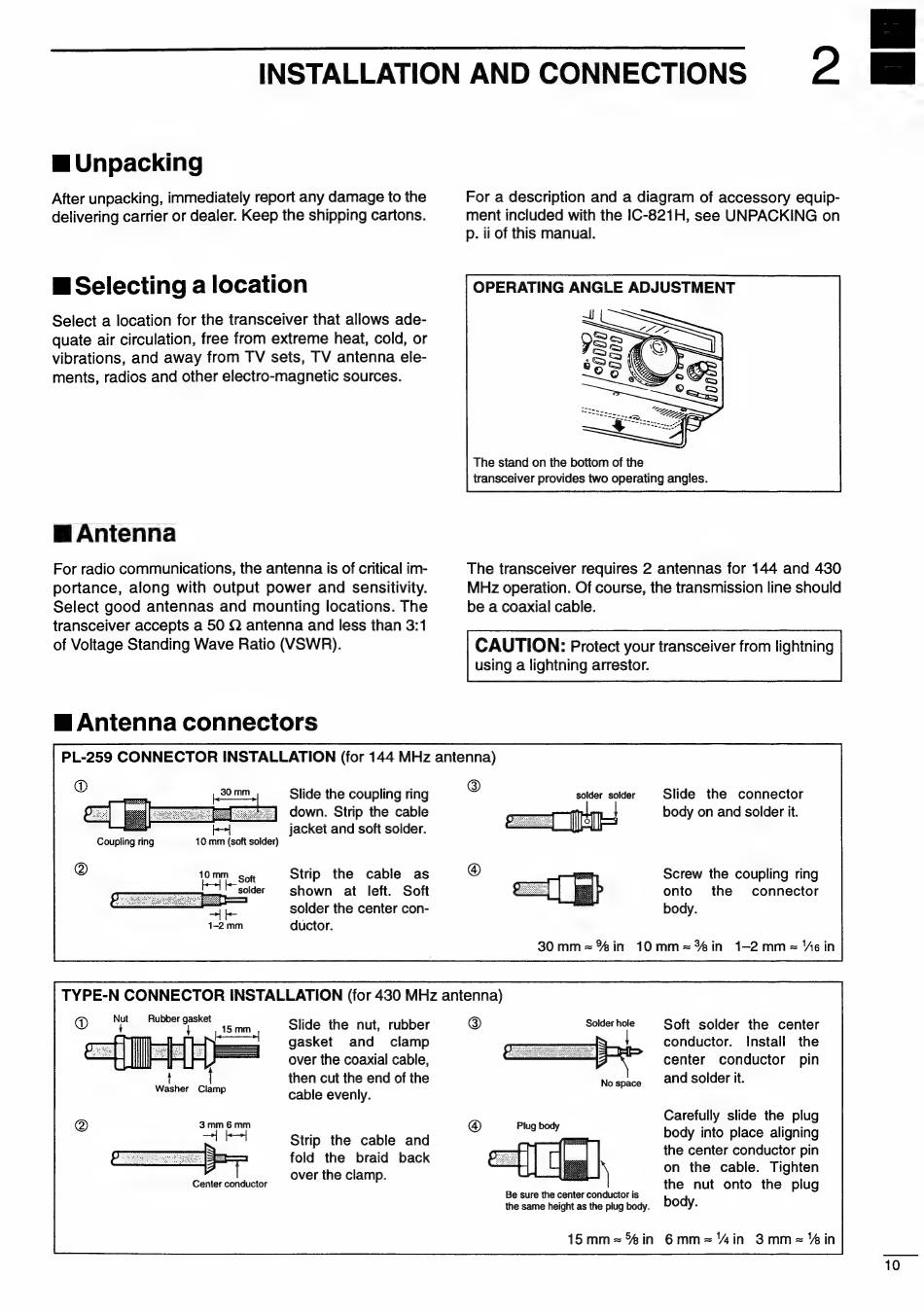

INSTALLATION AND CONNECTIONS
2
E Unpacking
After unpacking, immediately report any damage to the
delivering carrier or dealer. Keep the shipping cartons.
E Selecting a location
Select a location for the transceiver that allows ade-
quate air circulation, free from extreme heat, cold, or
vibrations, and away from TV sets, TV antenna ele-
ments, radios and other electro-magnetic sources.
E Antenna
For radio communications, the antenna is of critical im-
portance, along with output power and sensitivity.
Select good antennas and mounting locations. The
transceiver accepts a 50 Q antenna and less than 3:1
of Voltage Standing Wave Ratio (VSWR).
E Antenna connectors
For a description and a diagram of accessory equip-
ment included with the IC-821H, see UNPACKING on
p. ii of this manual.
OPERATING ANGLE ADJUSTMENT
The stand on the bottom of the
transceiver provides two operating angles.
The transceiver requires 2 antennas for 144 and 430
MHz operation. Of course, the transmission line should
be a coaxial cable.
CAUTION: Protect your transceiver from lightning
using a lightning arrestor.
PL-259 CONNECTOR INSTALLATION (for 144 MHz antenna)
down. Strip the cable
jacket and soft solder.
10 mm (soft solder)
Coupling ring
@
10MM son
Strip the
cable
as
I
solder
shown
at
left.
Soft
solder the center con-
ductor.
Slide
the
connector
body on and solder it.
solder solder
Screw the coupling ring
onto
the
connector
body.
30mm=%in
10mm=%in
1-2 mm = h6 in
TYPE-N CONNECTOR INSTALLATION (for 430 MHz antenna)
Nut
QO
4
gasket
and
clamp
over the coaxial cable,
then cut the end of the
cable evenly.
Washer
Clamp
3 mm
6 mm
Strip the cable and
fold
the
braid
back
over the clamp.
Center conductor
@
Solder hole
Soft solder the center
conductor.
Install
the
center
conductor
pin
and solder it.
Carefully slide the plug
body into place aligning
the center conductor pin
on the cable.
Tighten
;
the nut onto
the plug
Be sure the center conductor is
the same height as the plug body.
body.
15mm=Rsin
Emm="%in
3mm= in
10
