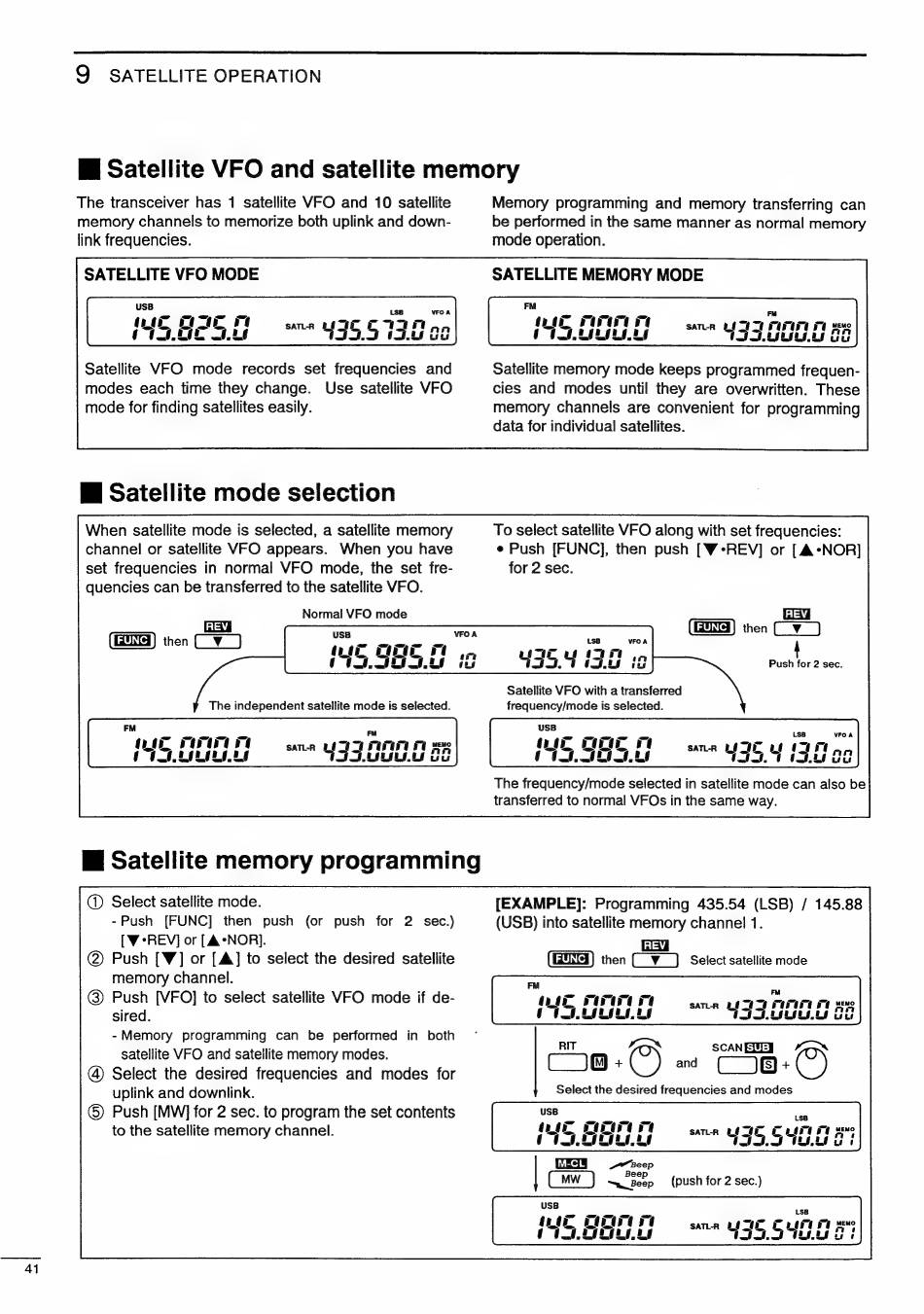

Icom IC-821H Instruction Manual page 44

41
Q SATELLITE OPERATION
W Satellite VFO and satellite memory
The transceiver has 1 satellite VFO and 10 satellite
memory channels to memorize both uplink and down-
link frequencies.
SATELLITE VFO MODE
LSB VFOA
SATL-R 3E £721
35.5 13.088
Satellite VFO mode records set frequencies and
modes each time they change. Use satellite VFO
mode for finding satellites easily.
W Satellite mode selection
When satellite mode is selected, a satellite memory
channel or satellite VFO appears. When you have
set frequencies in normal VFO mode, the set fre-
quencies can be transferred to the satellite VFO.
Normal VFO mode
USB
Memory programming and memory transferring can
be performed in the same manner as normal memory
mode operation.
SATELLITE MEMORY MODE
Satellite memory mode keeps programmed frequen-
cies and modes until they are overwritten. These
memory channels are convenient for programming
data for individual satellites.
To select satellite VFO along with set frequencies:
e Push [FUNC], then push [V REV] or [A*NOR]
for 2 sec.
[REV]
A hon CYO
LSB VFO A
ZIC t ara
4354 1 3 0 2
OSES tes Push for 2 sec.
Satellite VFO with a transferred
frequency/mode is selected.
The frequency/mode selected in satellite mode can also be
transferred to normal VFOs in the same way.
W Satellite memory programming
@ Select satellite mode.
-Push [FUNC] then push (or push for 2 sec.)
[W REV] or [A*NOR]. 'REV
@ Push [W] or [A] to select the desired satellite then (_¥_] Select satellite mode
memory channel.
@ Push [VFO] to select satellite VFO mode if de- sann AT nner r
sired. {aduss
- Memory programming can be performed in both
satellite VFO and sateilite memory modes.
@ Select the desired frequencies and modes for
uplink and downlink.
© Push [MW] for 2 sec. to program the set contents
to the satellite memory channel.
[EXAMPLE]: Programming 435.54 (LSB) / 145.88
(USB) into satellite memory channel 1.
SATL-R RIID
Lei
(ea pe ee Bi
