{1 PANEL DESCRIPTION

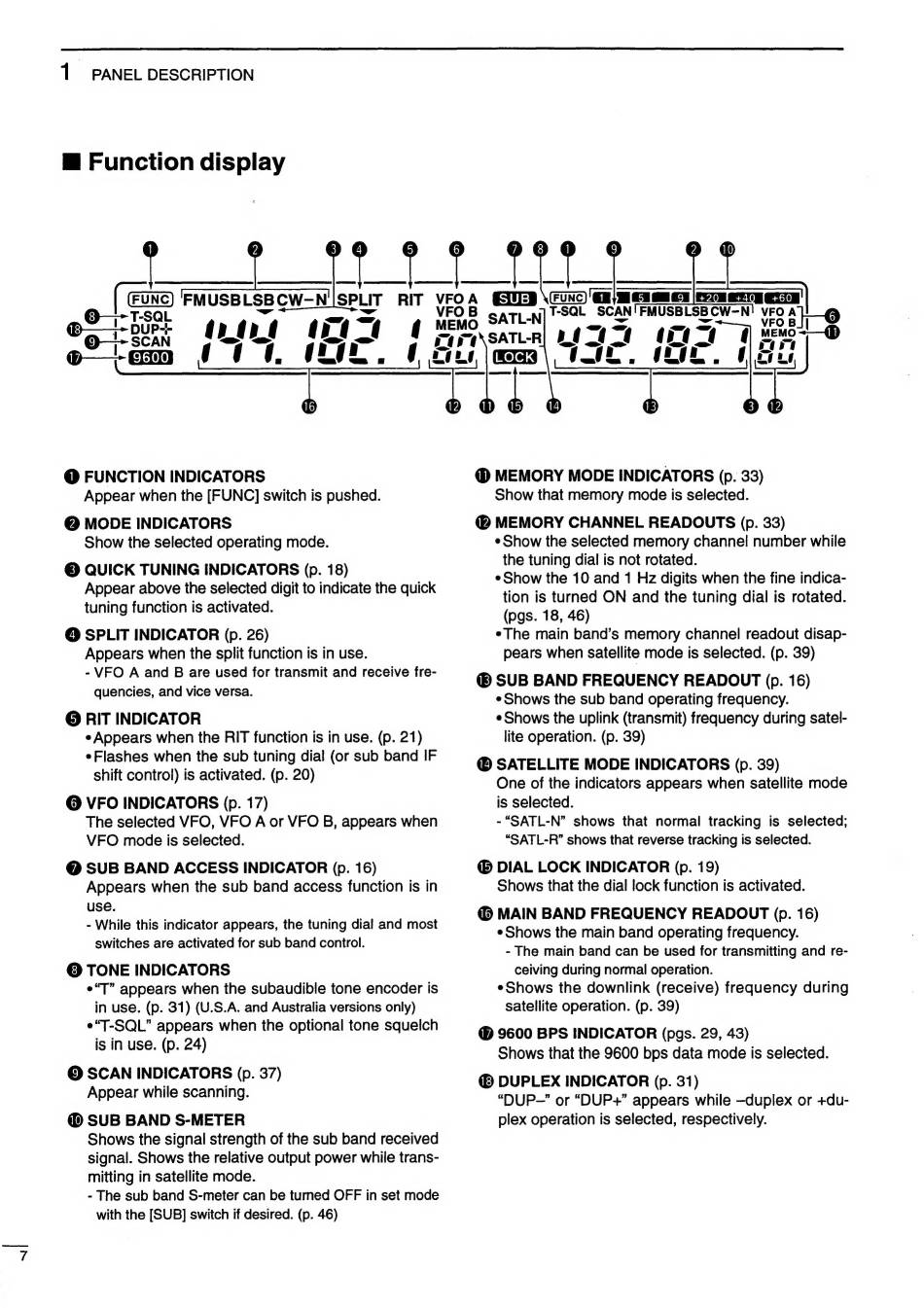

E Function display
deat I ans
ona ee
@ FUNCTION INDICATORS
Appear when the [FUNC] switch is pushed.
@ MODE INDICATORS
Show the selected operating mode.
© QUICK TUNING INDICATORS (p. 18)
Appear above the selected digit to indicate the quick
tuning function is activated.
© SPLIT INDICATOR (p. 26)
Appears when the split function is in use.
- VFO A and B are used for transmit and receive fre-
quencies, and vice versa.
@ RIT INDICATOR
e Appears when the RIT function is in use. (p. 21)
¢Flashes when the sub tuning dial (or sub band IF
shift control) is activated. (p. 20)
@ VFO INDICATORS (p. 17)
The selected VFO, VFO A or VFO B, appears when
VFO mode is selected.
@ SUB BAND ACCESS INDICATOR (p. 16)
Appears when the sub band access function is in
use.
- While this indicator appears, the tuning dial and most
switches are activated for sub band control.
© TONE INDICATORS
e"T" appears when the subaudible tone encoder is
in use. (p. 31) (U.S.A. and Australia versions only)
e"T-SQL" appears when the optional tone squelch
is in use. (p. 24)
© SCAN INDICATORS (p. 37)
Appear while scanning.
© SUB BAND S-METER
Shows the signal strength of the sub band received
signal. Shows the relative output power while trans-
mitting in satellite mode.
- The sub band S-meter can be turned OFF in set mode
with the [SUB] switch if desired. (p. 46)
@ MEMORY MODE INDICATORS (p. 33)
Show that memory mode is selected.
© MEMORY CHANNEL READOUTS (p. 33)
e Show the selected memory channel number while
the tuning dial is not rotated.
e Show the 10 and 1 Hz digits when the fine indica-
tion is turned ON and the tuning dial is rotated.
(pgs. 18, 46)
eThe main band's memory channel readout disap-
pears when satellite mode is selected. (p. 39)
@® SUB BAND FREQUENCY READOUT (p. 16)
e Shows the sub band operating frequency.
e Shows the uplink (transmit) frequency during satel-
lite operation. (p. 39)
@® SATELLITE MODE INDICATORS (p. 39)
One of the indicators appears when satellite mode
is selected.
- "SATL-N" shows that normal tracking is selected;
"SATL-R" shows that reverse tracking is selected.
®© DIAL LOCK INDICATOR (p. 19)
Shows that the dial lock function is activated.
© MAIN BAND FREQUENCY READOUT (p. 16)
e Shows the main band operating frequency.
- The main band can be used for transmitting and re-
ceiving during normal operation.
e Shows the downlink (receive) frequency during
satellite operation. (p. 39)
@® 9600 BPS INDICATOR (pgs. 29, 43)
Shows that the 9600 bps data mode is selected.
®© DUPLEX INDICATOR (p. 31)
"DUP— or "DUP+" appears while —duplex or +du-
plex operation is selected, respectively.
