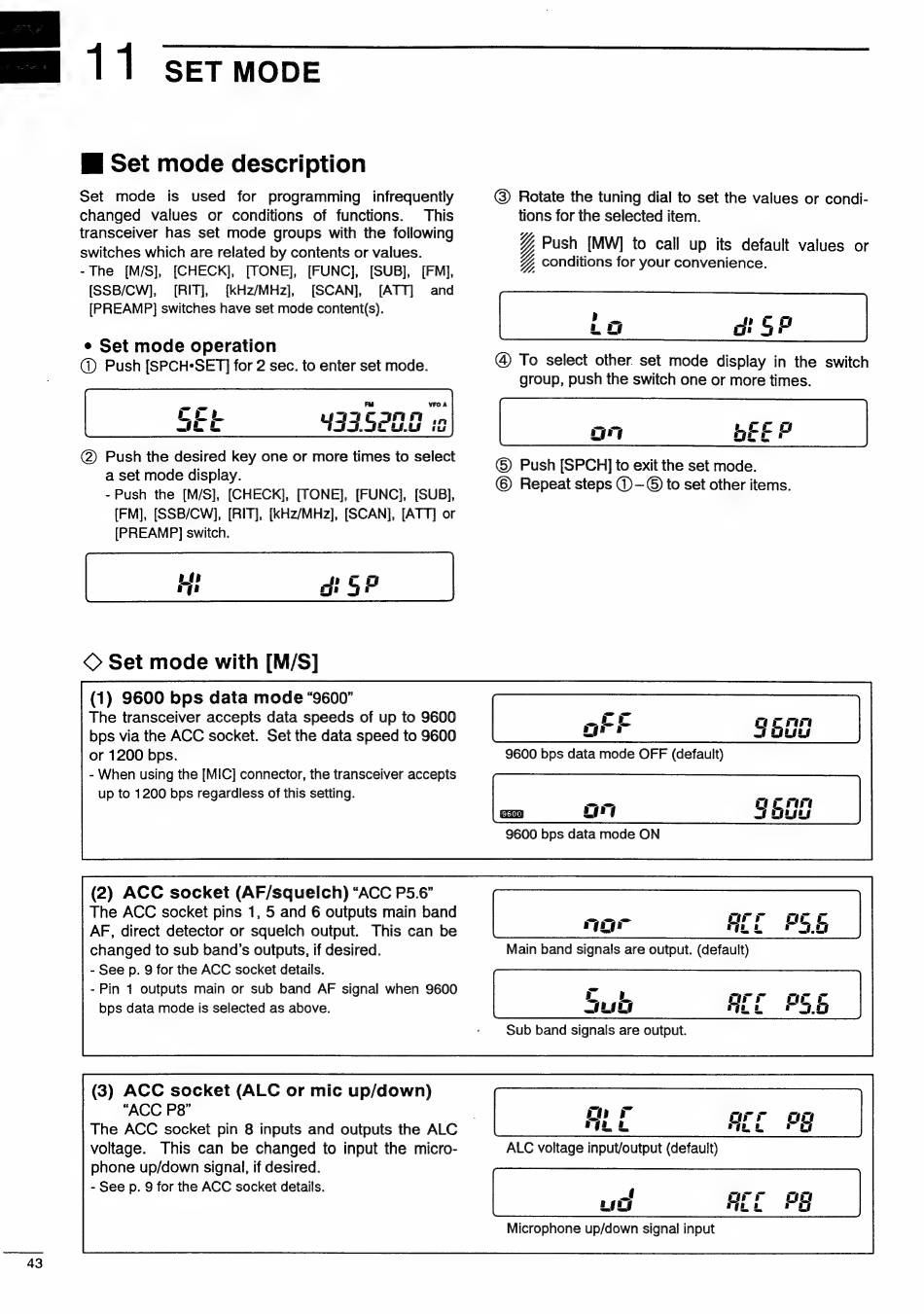

Icom IC-821H Instruction Manual page 46

43
11
SET MODE
E Set mode description
Set mode is used for programming infrequently
changed values or conditions of functions. This
transceiver has set mode groups with the following
switches which are related by contents or values.
-The [M/S], [CHECK], [TONE], [FUNC], [SUB], [FM],
[SSB/CW], [RIT], {kHz/MHz], [SCAN], [ATT] and
[PREAMP] switches have set mode content(s).
e Set mode operation
@ Push [SPCH*SET] for 2 sec. to enter set mode.
Fé VFO A
(2) Push the desired key one or more times to select
a set mode display.
- Push the [M/S], [CHECK], [TONE], [FUNC], [SUB],
[FM], [SSB/CW], [RIT], [kHz/MHz], [SCAN], [ATT] or
[PREAMP] switch.
© Set mode with [M/S]
(1) 9600 bps data mode "9600"
The transceiver accepts data speeds of up to 9600
bps via the ACC socket. Set the data speed to 9600
or 1200 bps.
- When using the [MIC] connector, the transceiver accepts
up to 1200 bps regardless of this setting.
(2) ACC socket (AF/squelch) "ACC P5.6"
The ACC socket pins 1, 5 and 6 outputs main band
AF, direct detector or squelch output. This can be
changed to sub band's outputs, if desired.
- See p. 9 for the ACC socket details.
- Pin 1 outputs main or sub band AF signal when 9600
bps data mode is selected as above.
(3) ACC socket (ALC or mic up/down)
"ACC P8"
The ACC socket pin 8 inputs and outputs the ALC
voltage. This can be changed to input the micro-
phone up/down signal, if desired.
- See p. 9 for the ACC socket details.
conditions for your convenience.
NG
A
F~
j age
@ To select other. set mode display in the switch
group, push the switch one or more times.
©) Push [SPCH] to exit the set mode.
© Repeat steps ©- ©) to set other items.
B
C
9600 bps data mode OFF (default)
xi
9600 bps data mode ON
ALC voltage input/output (default)
Microphone up/down signal input
