11.3.2 Twin Pot with Encoder and Feedback pot

11.4 Function configuration

The functions list change with the settings SYSTEM CONFIG and FEEDBACK
DEVICE (see 11.4.3.1 and 11.4.1.3). In particular, we will distinguish between the
configurations with stepper motor against the one with Twin Pot in the hand wheel.
In the next we refer to a complete list that is the union of the settings in the above
configurations. When the setting refers to only one configuration, it will be specified
in the description.
Page - 56/95

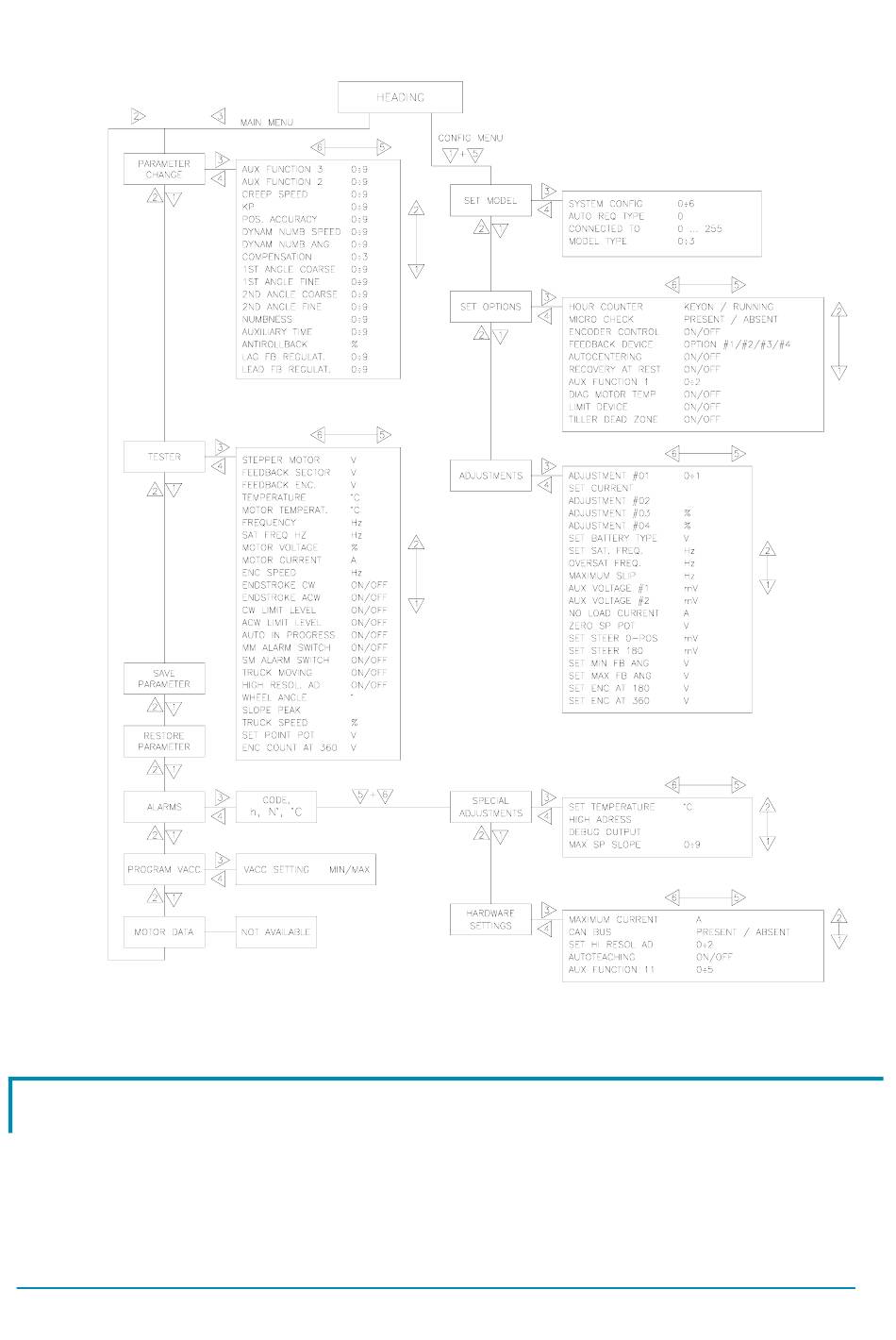

Figure 11–3
