11 PROGRAMMING & ADJUSTMENTS USING

DIGITAL CONSOLE

Adjustment of Parameters and changes to the inverter's configuration are made

using the Digital Console. The Console is connected to the CNC connector of the

inverter.

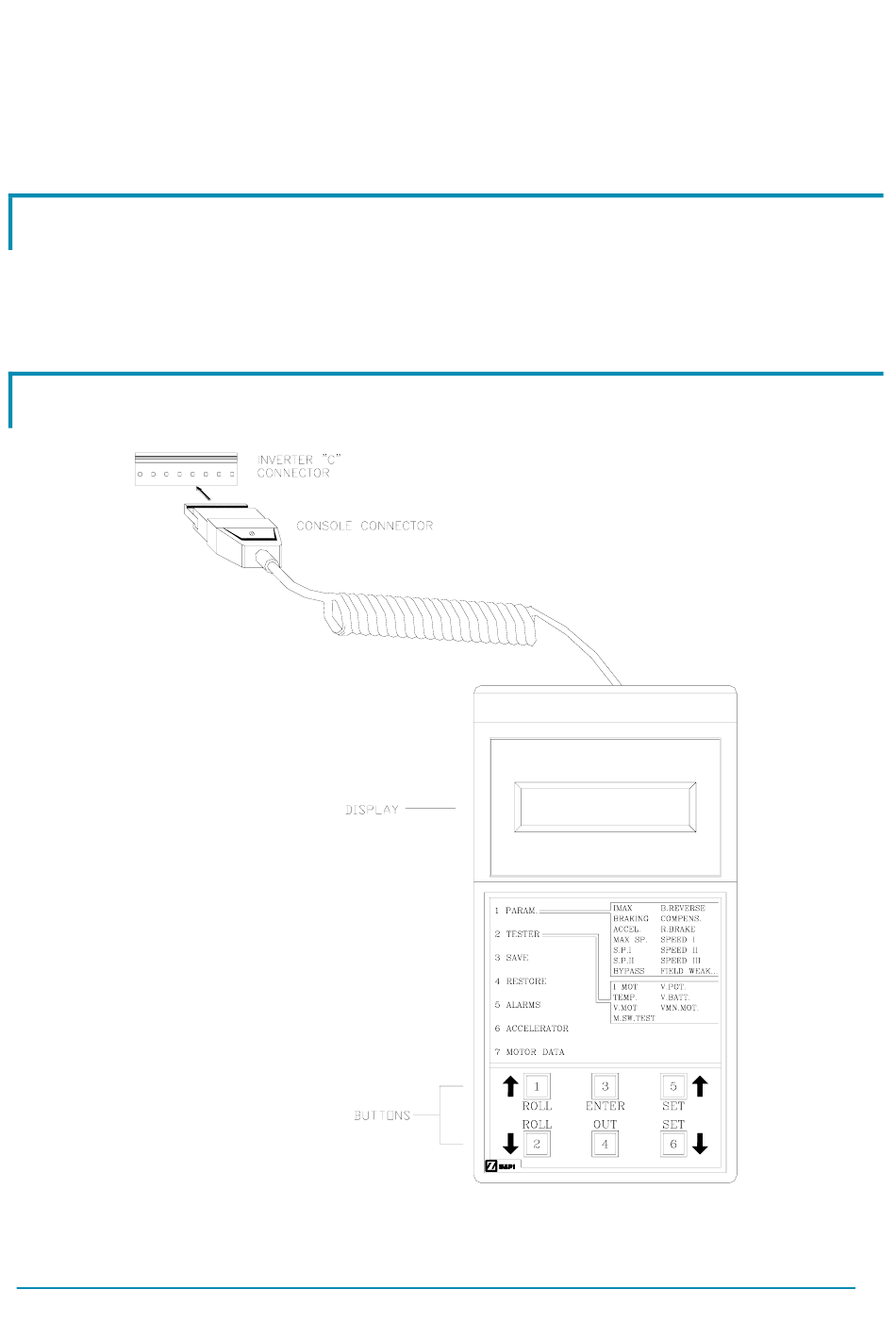

11.2 Description of console (hand set) & connection

Page - 54/95

Figure 11–1

AEMZP0EA - EPS-AC0 SWs&ENC - User Manual
