11.3 Description of standard console menu

Digital consoles used to communicate with AC inverter controllers must be fitted with
EPROM CK ULTRA, minimum "Release Number 3.02".
The section describes the Zapi hand set functions. Numbers inside the triangles
correspond to the same number on the hand set keyboard buttons shown in the
Figure 11-1. The orientation of the triangle indicates the way to the next function.

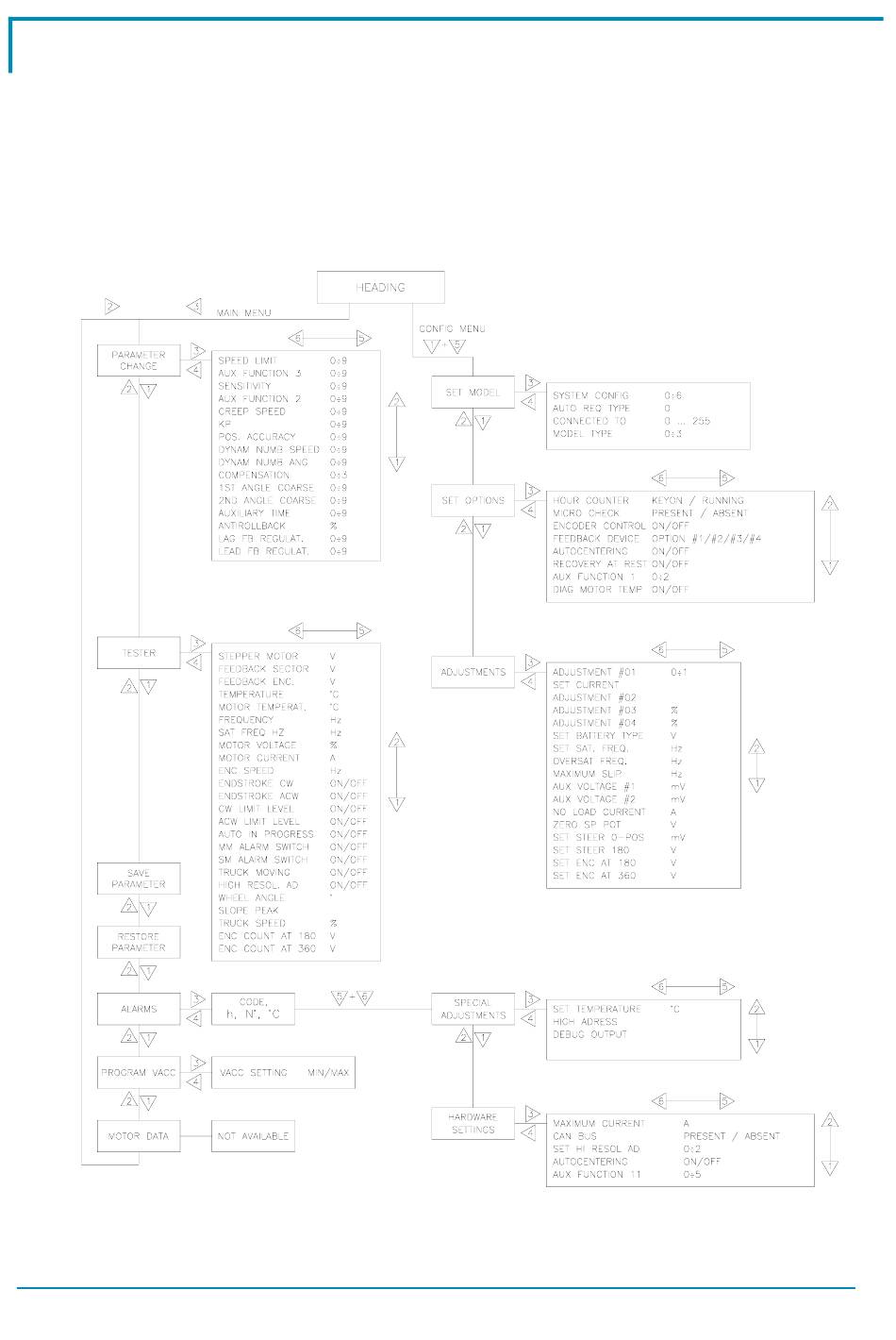

11.3.1 Stepper motor with Encoder and Feedback pot

AEMZP0EA - EPS-AC0 SWs&ENC - User Manual
Figure 11–2
Page - 55/95
