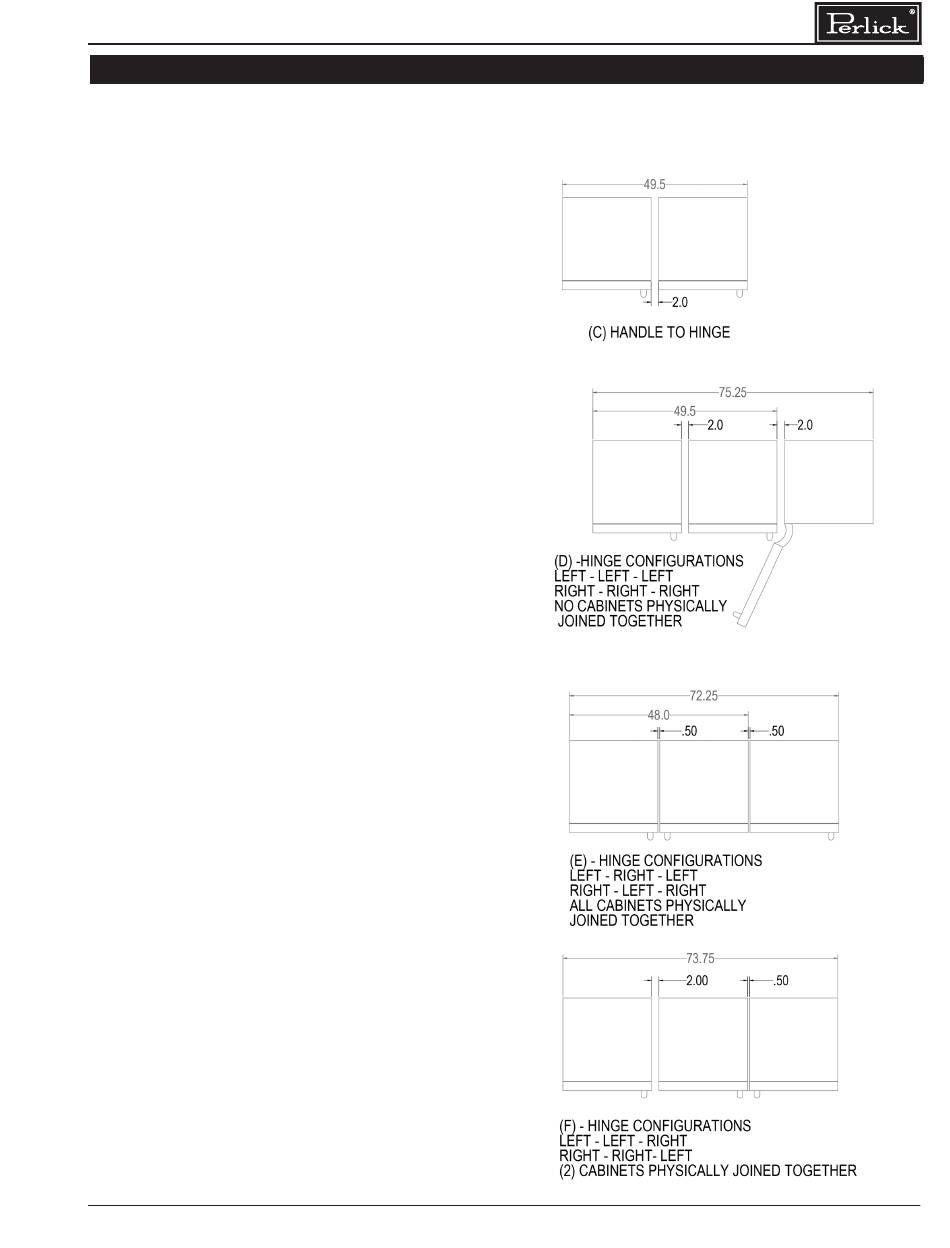

MINIMUM SPACING REQUIRED BETWEEN ADJACENT CABINETS TO AVOID DOOR
SWING INTERFERENCE CONTINUED.
Opening Dimensions
(C) 2 Cabinets HANDLE TO HINGE.
Refer to (C) Opening diagram (page 8) for finished
opening dimensions and outlet locations.
(D) 3 Cabinets with Hinges either all left
or all right.
Refer to (D) Opening diagram (page 8) for finished
opening dimensions and outlet locations.
(E) 3 Cabinets with Hinges Left-Right-Left or
Right-Left-Right.
Refer to (E) Opening diagram (page 9) for finished
opening dimensions and outlet locations.
(F) 3 Cabinets with Hinges Left-Left-Right or
Right-Right-Left.
Refer to (F) Opening diagram (page 9) for finished
opening dimensions and outlet locations.
Column Refrigeration Installation & Operation Manual
INSTALLATION CONTINUED
