Close the door to make adjustments to align
panels and reveals.
For up-and-down adjustments, turn the height
adjustment screws in the top bracket in and out.
Adjust the screws as needed to achieve an even
reveal on each side of the door overlay.
Once final adjustments are made to the position
of the door overlay, secure the overlay in place by
installing the bottom overlay bracket as shown in
BOTTOM OF DOOR illustration below.

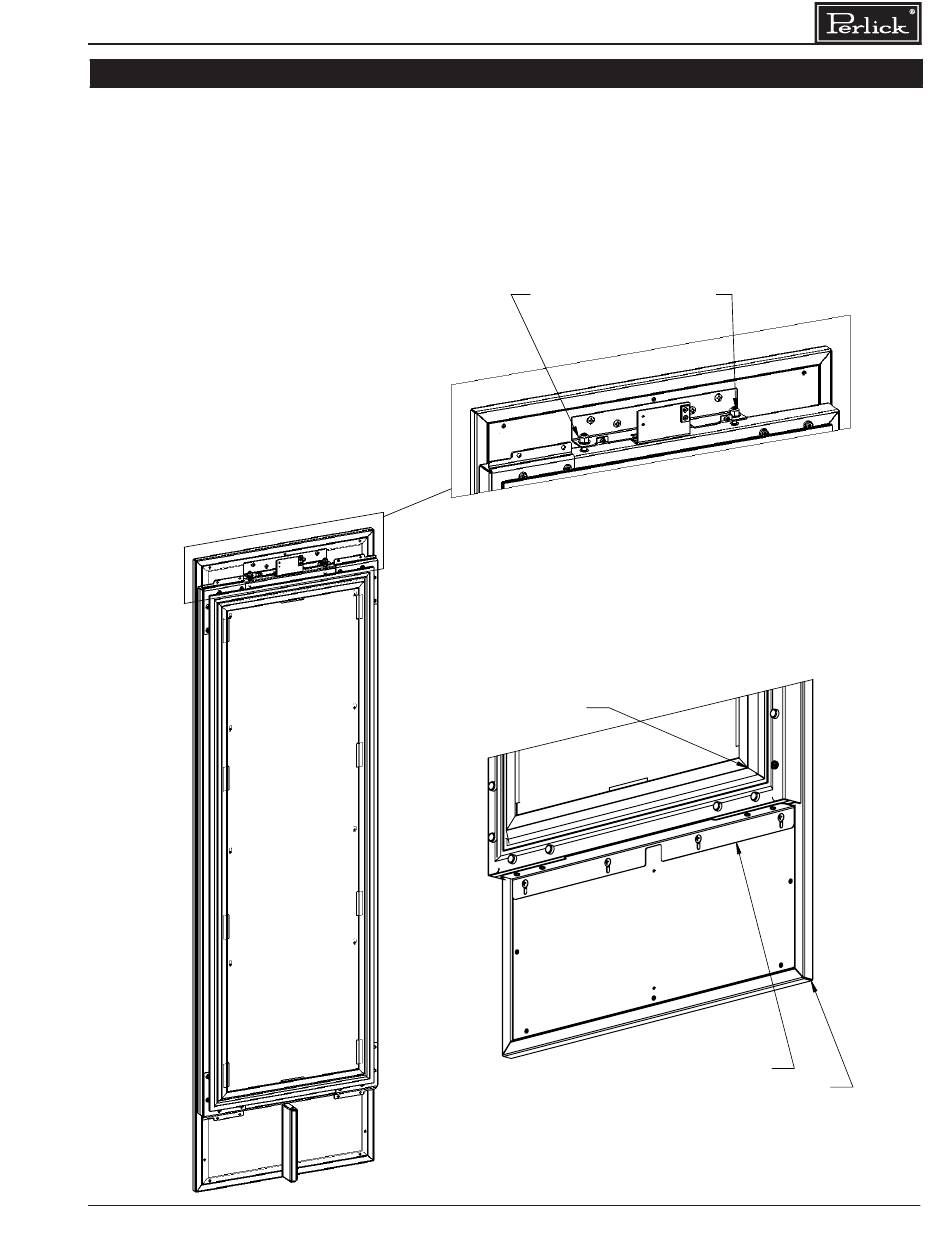

TOP OF DOOR
Column Refrigeration Installation & Operation Manual

DOOR OVERLAY PANEL ADJUSTMENT

BRACKET, BOTTOM, OVERLAY
BOTTOM OF DOOR
G
*INSTALL BRACKET BOTTOM
OVERLAY TO DOOR AND
OVERLAY WITH FASTENERS
23
DOOR
HEIGHT ADJUSTMENT
COUNTER CLOCKWISE - UP
CLOCKWISE - DOWN
USE #4 ALLEN KEY
DETAIL H
SCALE 1 : 6
OVERLAY
DETAIL G
SCALE 1 : 5
DOOR
BRACKET, BOTTOM, OVERLAY
OVERLAY
