Door Trim Installation - Perlick CC24B-2 Installation & Operation Manual

Column Refrigeration Installation & Operation Manual
Once overlay is adjusted, mount the door trim
cover onto the door adjustment bracket using the
provided screws.
Installation of Condenser
NOTICE
Divider Panel on bottom
of door panel, is critical to performance of the
system. Failure to install will cause premature
sealed system issues and void warranty.
Condenser Divider Panel should be installed
to either stainless steel or customer provided
door panels.

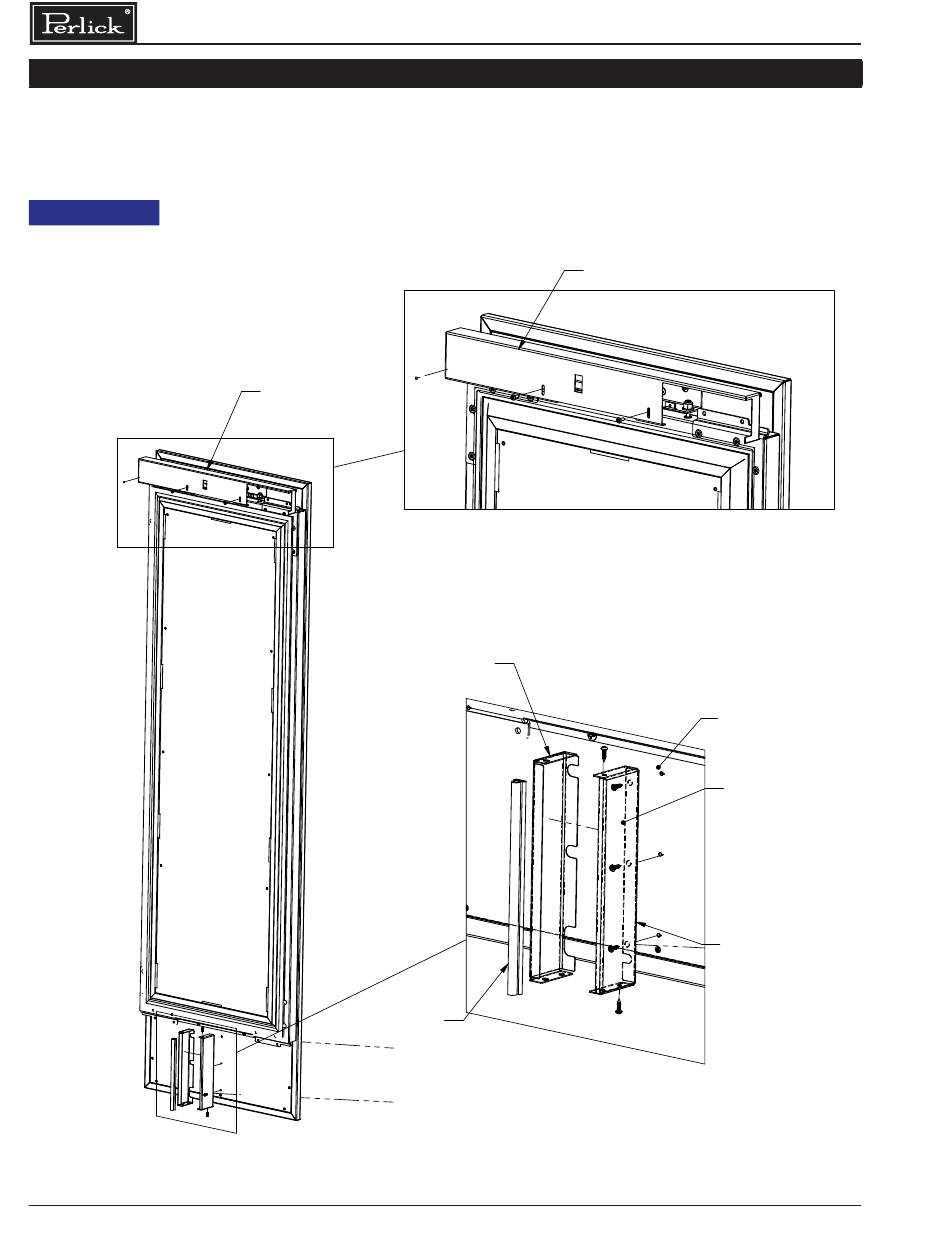

DOOR TRIM INSTALLATION

DOOR TRIM
GASKET
DOOR TRIM
ON
DOOR PANEL
DOOR TRIM
DETAIL J
SCALE 1 : 6
DOOR TRIM
ON
DOOR PANEL
FRAME 2
CONDENSER DIVIDER PANEL INSTALLATION STEPS
INSTALLATION STEPS
1. INSTALL FRAME 1 TO OVERLAY.
2. INSTALL GASKET ONTO FRAME 2.
3. MOUNT FRAME 2 ONTO FRAME 1.
DETAIL K
SCALE 1 : 4
24
C
B
OVERLAY OVERLAY
TEMPLATE TEMPATE
CONDENSER
CONDENSOR
DIVIDER PANEL
DIVIDER PANEL
FRAME 1
A
SW C:\Perlick
