Perliq Digital Control Operation - Perlick CC24B-2 Installation & Operation Manual

Column Refrigeration Installation & Operation Manual
1 2 3

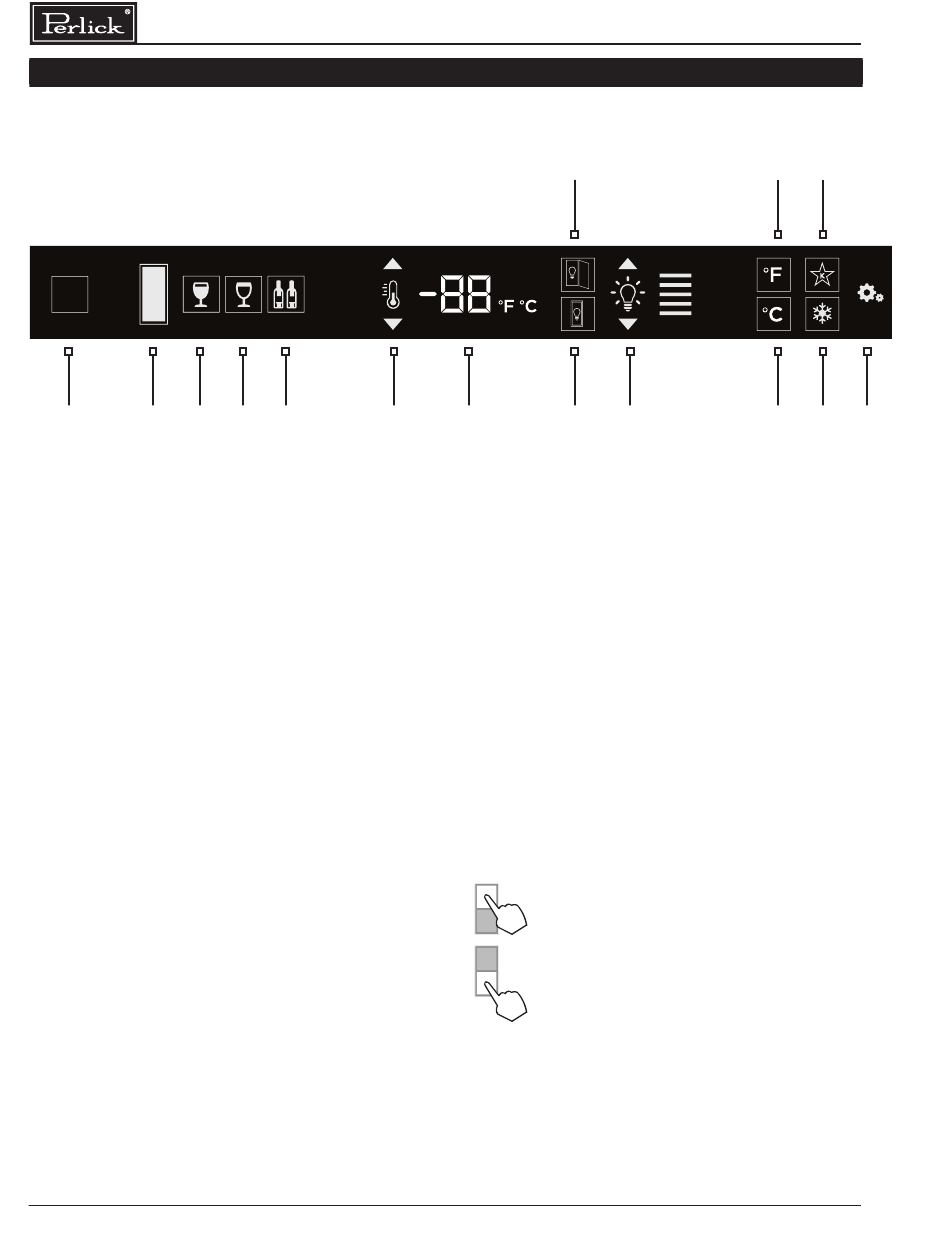

1 Wake Button
2 Temperature zone selection (Dual-zone models)
3 White wine temperature setting
(wine models only)
4 Red wine temperature setting
(wine models only)
5 Cellar temperature setting
6 Temperature adjustment (up and down in
1° increments)
7 Temperature readout
8 Light adjustment (door open)
9 Light adjustment (door closed)
10 Light intensity adjustment
11 Fahrenheit temperature mode
12 Celsius temperature mode
13 Sabbath mode
14 QuickCool mode
15 Settings menu
COLUMN DIGITAL CONTROL OPERATION
4 5 6
8
7 9
Using the Wine Column Control
Upon door opening, the Wake button (1) outline
will illuminate. Once activated, the temperature
zone selection (2), temperature adjustment (6),
temperature readout (7) and settings (15) menu
icons will illuminate.
Selecting a Temperature Zone
Perlick's PerlIQ™ digital controller is preset with
recommended temperature settings for white wine,
red wine and cellaring. Within the presets, you have
the ability to adjust the temperature in 1° increments
as you desire. Because single zone models are one
temperature throughout, there is no zone selection.
On dual zone models, press the temperature zone
selection (2) icon to toggle through the zones until
desired zone is illuminated.
Top Zone
Bottom Zone
NOTE: Dual Zone Wine Upper compartment
temperature set point must always be set at or
above the lower compartment set point.
