ELECTRICAL
DANGER
Serious electrocution hazard.
!
Electrical grounding is required. This appliance is
equipped with a 3-prong (grounding) polarizing plug
for your protection against possible shock hazards.
Failure to comply with these electrical guidelines may
result in possible death or serious injury, fire or loss
of property.
WARNING
Never use an extension cord
to connect unit to electrical source. Do not use a
two-prong adapter or remove the power cord
grounding prong.

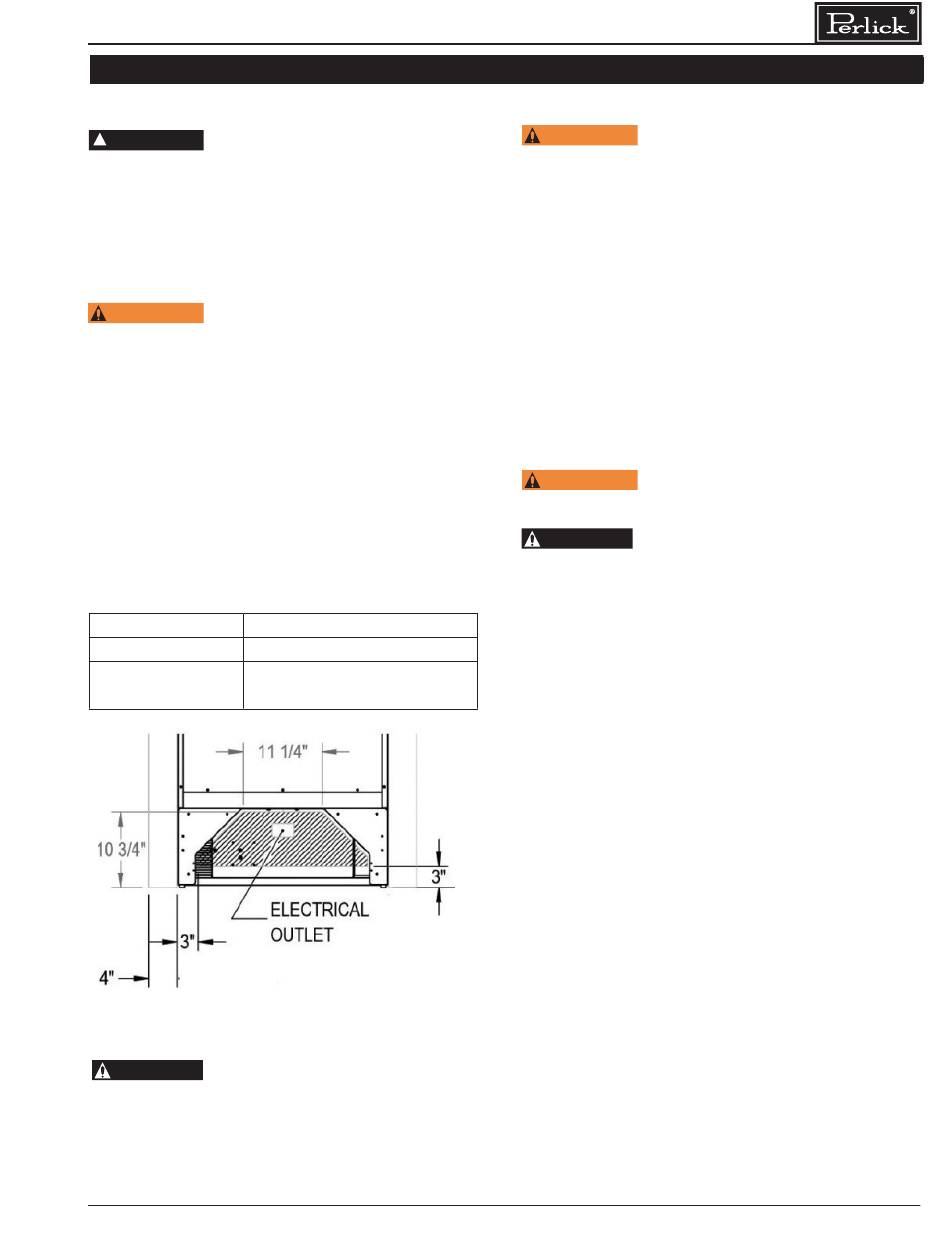

Installation must comply with all applicable electrical
codes. The electrical supply must be located within
the shaded area of the illustration below. A separate
circuit, servicing only this appliance, is required.
A ground fault circuit interrupter (GFCI) is not
recommended and may cause interruption of
operation. The outlet should be placed in the
hatched area dimensioned below.
Electrical Supply 115V, 60Hz, 1 Phase, 3.2 Amps
Service Dedicated 15 amp circuit
Power/Cord Type/ NEMA 5-15 Cord Plug Type
Length (5' length)
PLACEMENT
CAUTION
Before moving unit into
position, secure the door closed and protect any
finished flooring.
Use an appliance dolly to move the unit near
the opening.
Column Refrigeration Installation & Operation Manual
INSTALLATION CONTINUED
11
ANTI-TIP BRACKET
WARNING
To prevent the unit from tipping forward,
the anti-tip bracket must be installed. Use all anti-tip
bracket hardware as instructed. Level as instructed on
page 12 prior to installing anti-tip bracket(s)
The anti-tip bracket and supporting hardware is
included with your unit. Please note that four anti-tip
brackets are required for each unit or dual installation.
In the case of dual installation, each individual unit must
be outfitted with the two anti-tip brackets on cabinet
sides for a total of four.
For drawings of the anti-tip bracket installation on
integrated (built-in) units, see page 13. For drawings
of the anti-tip bracket installation on freestanding units,
see page 14.
WARNING
Verify there are no electrical wires or
plumbing in the area which the screws could penetrate.
CAUTION
Always wear safety glasses and use
other necessary protective devices or apparel when
installing or working with anchors. Anchors are not
recommended for use in lightweight masonry material
such as block or brick, or for use in new concrete which
has not had sufficient time to cure. The use of core
drills is not recommended to drill holes for anchors.
90° HINGE STOP
Perlick column doors open to 105°. When installing a
panel thicker than ¾" (19), or if located next to adjacent
wall, the 90° hinge stop pin may be required to prevent
damage to the unit and adjacent cabinetry/walls. This
hinge pin must be installed prior to full integration.
1. Remove the cabinet hinge trim cover by removing
the three Phillips head fasteners located on the
top of the cabinet. Lift the rear of trim cover to tilt
trim cover to disengage tab on right and left end
of trim cover. Slide forward to remove.
2. Open cabinet door approximately 45° to 85° to
expose hole under hinge guard. Install hinge pin
into hole. Ensure hinge pin is fully seated to top
of hinge to prevent damage to hinge guard.
3. Reattach the cabinet hinge trim piece. Slide front
bottom of hinge trim cover under reed switch.
Tilt trim cover to engage right and left end tab into
cabinet. Install the three fasteners.
