Phantom 2 ITX Case Assembly Manual
Horizontal:
Remove the x2 #6-32 0.25" SCR fasteners from the mounting holes marked "X / #" and replace
them with x2 #6-32 117mm SO-M male standoffs, then put the Phantom 2 Horizontal GPU mount
on top and secure it with the x2 #6-32 0.25" SCR fasteners that we removed previously to the #6-
32 117mm SO-M male standoffs.
Vertical:

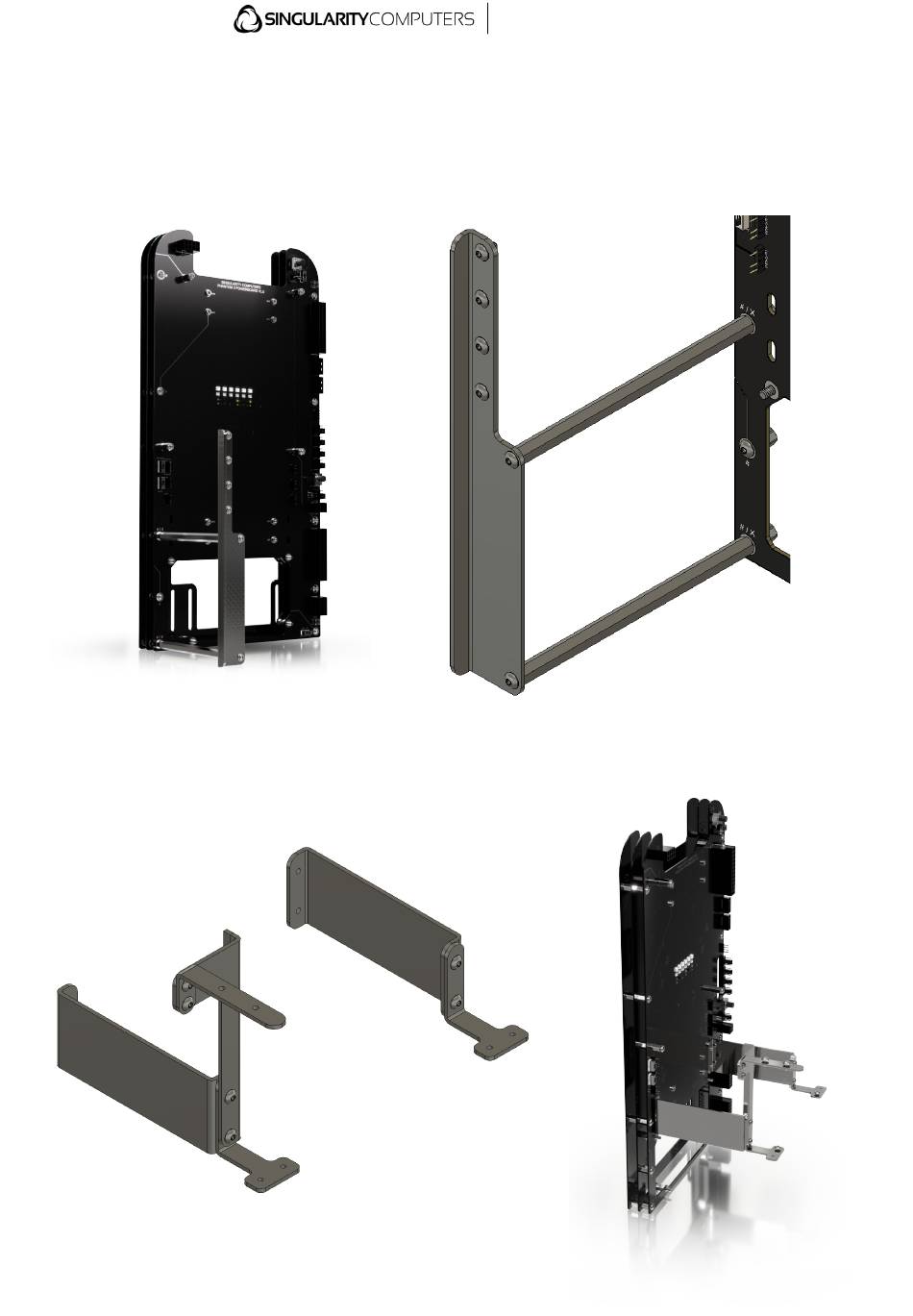

Part A - Assemble the Vertical GPU Mount using x6 #6-32 0.25" SCR fasteners to this stage:
Revision 1.0
