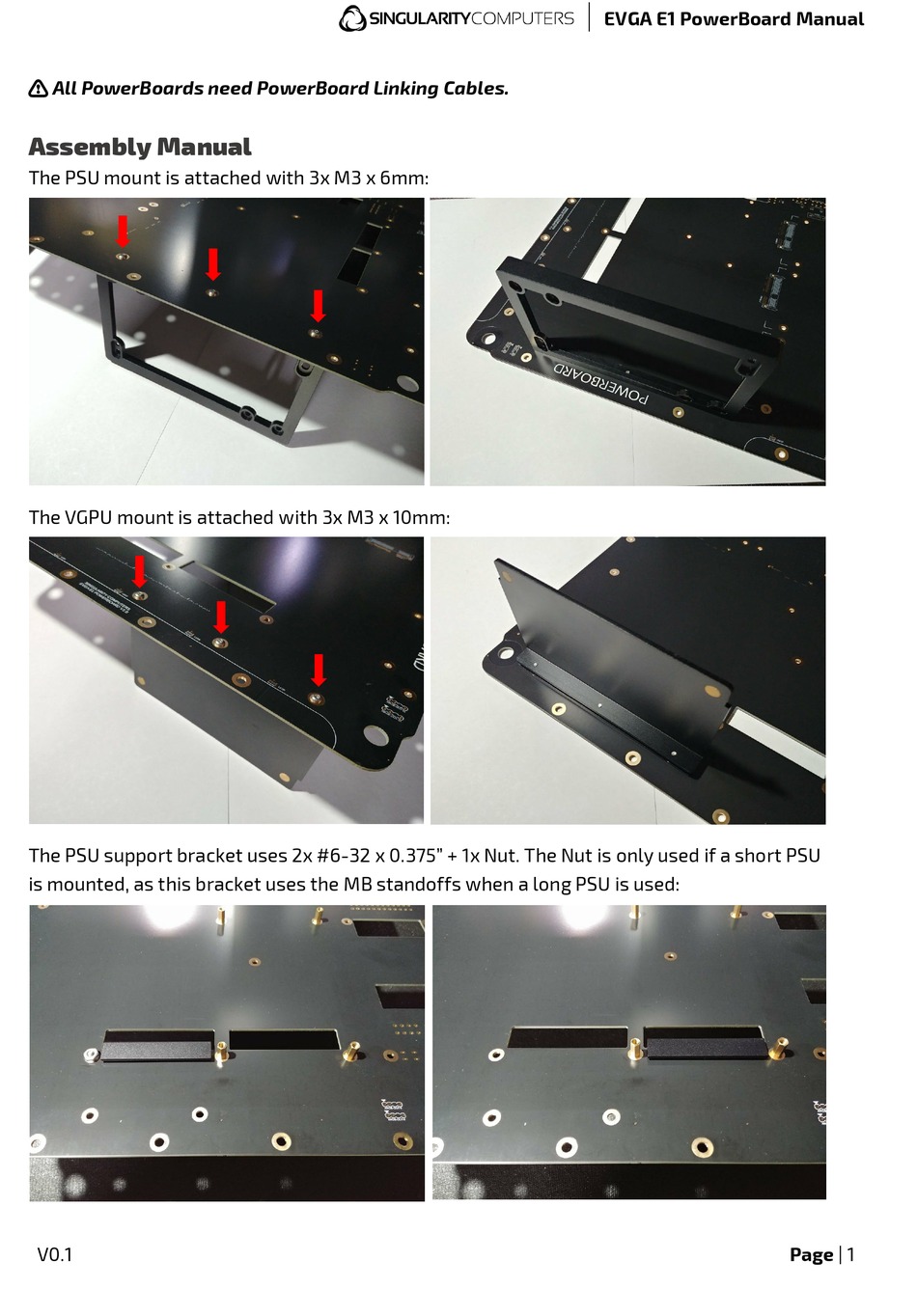

EVGA E1 PowerBoard Manual

 All PowerBoards need PowerBoard Linking Cables.

Assembly Manual

The PSU mount is attached with 3x M3 x 6mm:

The VGPU mount is attached with 3x M3 x 10mm:

The PSU support bracket uses 2x #6-32 x 0.375" + 1x Nut. The Nut is only used if a short PSU

is mounted, as this bracket uses the MB standoffs when a long PSU is used:

V0.1

Page | 1

Table of Contents

Need help?

Do you have a question about the PowerBoard EVGA E1 and is the answer not in the manual?

Page 1 EVGA E1 PowerBoard Manual  All PowerBoards need PowerBoard Linking Cables. Assembly Manual The PSU mount is attached with 3x M3 x 6mm: The VGPU mount is attached with 3x M3 x 10mm: The PSU support bracket uses 2x #6-32 x 0.375” + 1x Nut. The Nut is only used if a short PSU is mounted, as this bracket uses the MB standoffs when a long PSU is used: V0.1 Page | 1...
Page 2 EVGA E1 PowerBoard Manual Motherboard standoffs are 9x #6-32 x 10mm SO-F and use 7x/8x #6-32 x 0.25” to secure them from the back, depending on the PSU support bracket's position: Motherboards are secured with 9x #6-32 x 0.25”. The Distribution plate uses 6x M4 x 8mm, 4x at the bottom and 2x at the side: Installing the assembly back into the case is easier without the distribution plate, it can be slid into position from the bottom of the case and then...
Page 3 EVGA E1 PowerBoard Manual To remove the stock motherboard tray, loosen all 4 carbon fibre strings until all 3 grub screws become accessible on the parts that they are terminated into, then, only on one side, loosen the grub screws and pull the string out then remove that string from one side of the radiator mount, the motherboard IO plate and from the motherboard tray.
