Phantom 2 ITX Case Assembly Manual

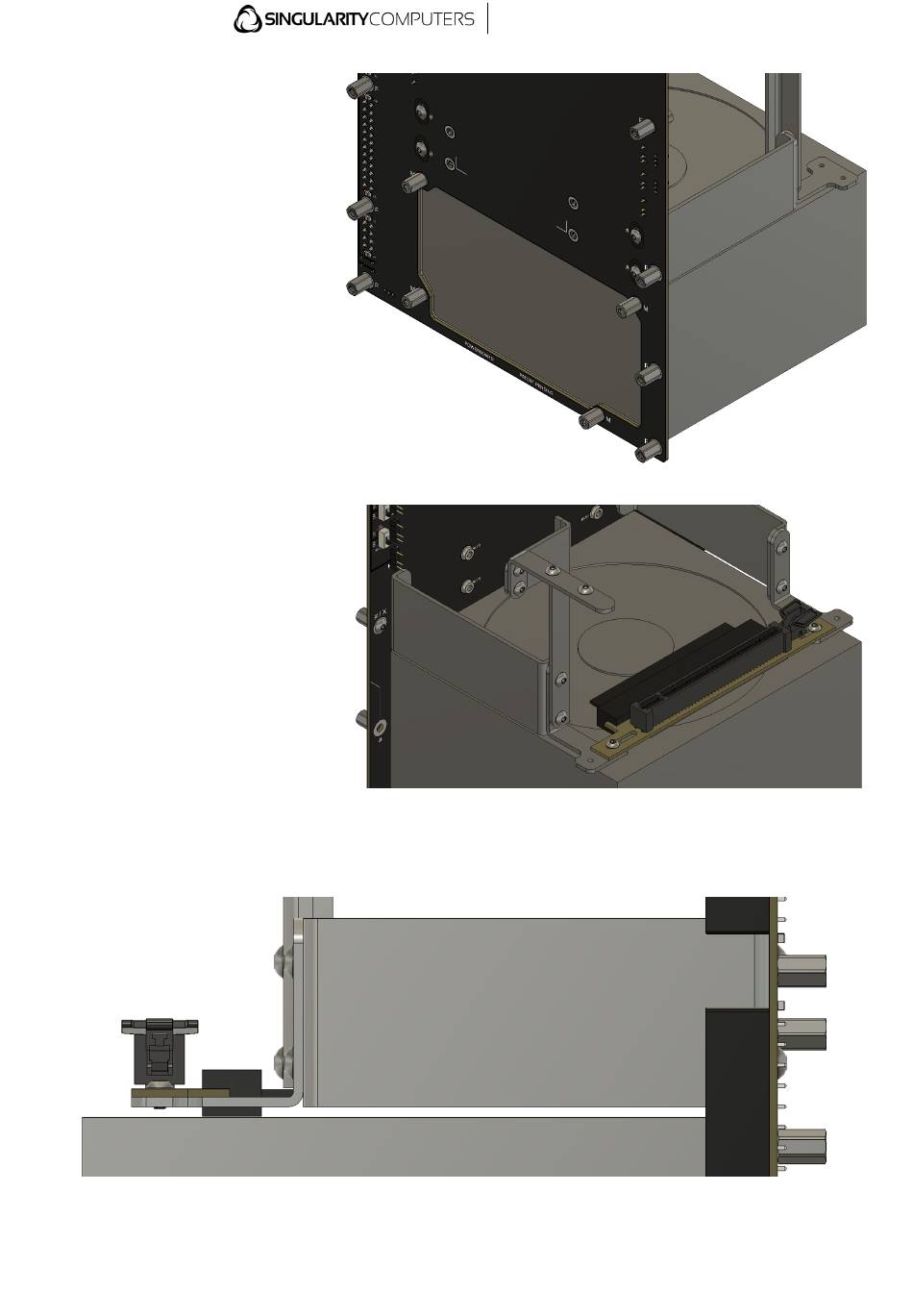

Part B - Install the mount to the
main PowerBoard and secure it
using x4 #6-32 0.25" SCR
fasteners, but do not tighten
them for now as the height of
the mount will need to be set:
Part C - Install the PCIe Gen4
Riser cable PCB to the mount
using x2 M3 4mm SCR fasteners
and center the riser for optimal
position:
The riser cable should be folded
under the D5 pump cover to hide
the excess then plugged into the
motherboard.
Part D - Adjust the height of the Vertical GPU Mount assembly until the PCIe Riser cable rests on
the top of the power supply then tighten the #6-32 0.25" SCR fasteners on the back of the
PowerBoard that we left loose for this purpose previously:
Revision 1.0
Page | 9
