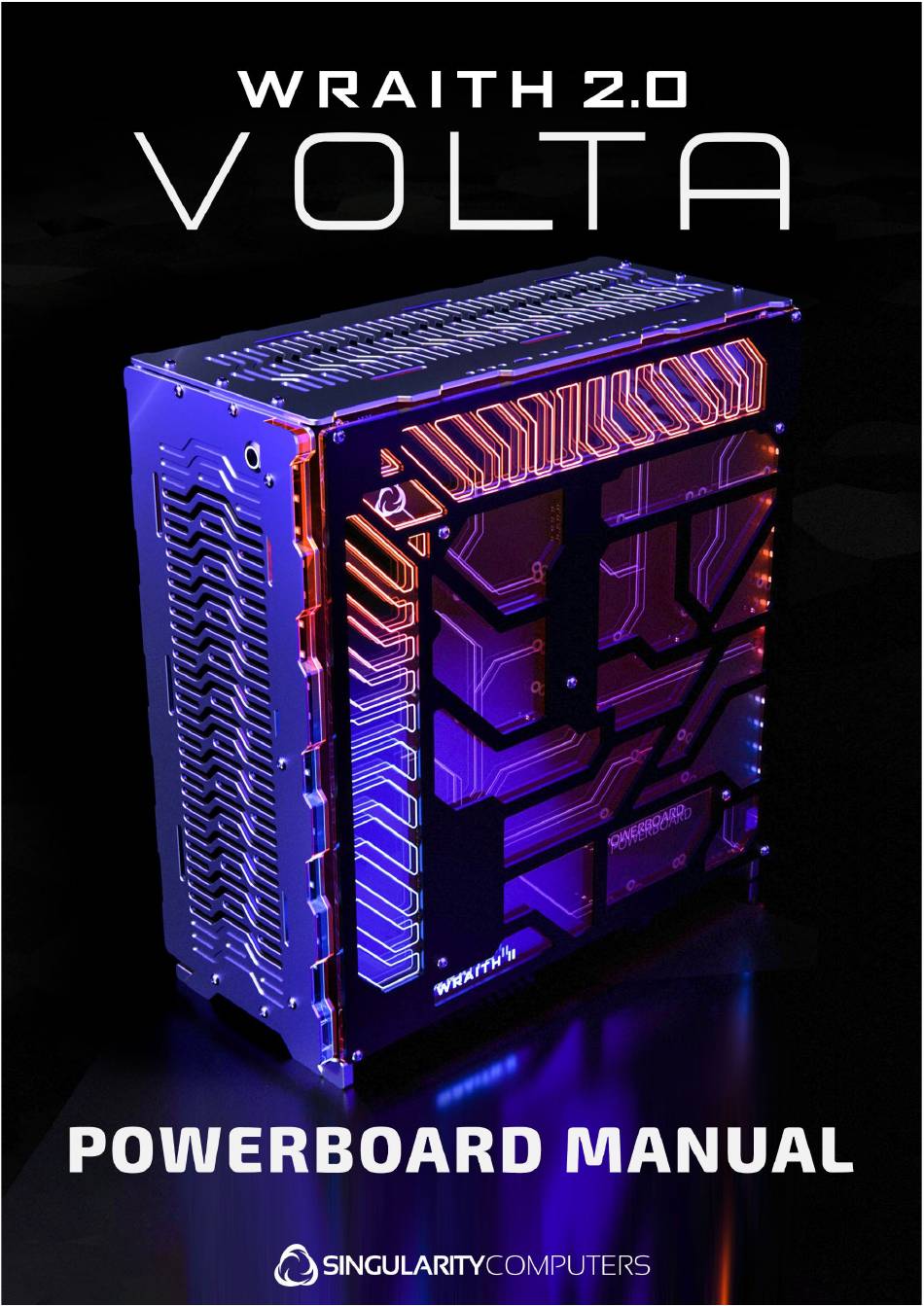

- Page 1 Revision 1.00...
-
Page 2: Table Of Contents
Step 6 - Install Wraith 2.0 Volta Manifold ....................9 Step 7 - Drive Installation ........................... 9 Step 8 - Side Panel Window Installation ....................9 Step 9 – Install PSU ............................. 10 Wraith 2.0 Volta PowerBoard ........................11 Revision 1.00... - Page 3 That they did not occur after the item was shipped from the Singularity Computers Factory or Retailer. If there are more than 10 marks which are beyond 5mm in length and visible when facing perpendicular to the surface. Evidence of this must be photographed in detail and photographs must be taken perpendicular to the surface.
-
Page 4: Introducing Wraith 2.0 Volta
Introducing Wraith 2.0 Volta The Singularity Computers PowerBoard is essentially a distribution plate for cables. In Wraith 2.0 Volta is fully integrated replacing the entire rear wall of the case. Behind it are two acrylic covers, one clear with laser etching and another satin black cover. The PowerBoard integrates the 24pin and 8pin EPS, PWM &... -
Page 5: Specifications & Included Items
Maximum CPU Cooler Height 130mm Front Panel I/O Vandal Switch 16mm Vertical GPU Mount 1x Singularity Computers PCIe 4.0 Bracket & Riser Cable 6061 Anodized Aluminum, Cast Acrylic, Stainless Steel Materials Manufacturing Process CNC Router, CNC Mill, CNC Lathe Revision 1.00... -
Page 6: Panels Layout
Panels Layout Assembly Tolerances & Alignment Wraith 2.0 Volta uses CNC machining and very thick materials. This means it is manufactured with extreme precision and there is no flex or play in any of the materials. Due to this we have built in tolerances to most mounting holes to allow for the looser tolerances on the components being installed. -
Page 7: Step 1 - Attach Corner Pieces To Top Panel
Step 1 - Attach Corner Pieces to Top Panel • • Top Panel x1 M4 x 10mm Button Head Fasteners x6 Parts Involved • Corner Pieces x2 Attach the corner pieces to the top panel using x6 M4 10mm Button Head Fasteners. Step 2 - Attach Corner Pieces and Feet to Bottom Panel •... -
Page 8: Step 3 - Attach Led Diffusor And Led Shroud To Front Panel
Attach Vertical GPU Mount to bottom panel in the position marked in the diagram below using x2 M4 6mm fasteners. Step 3 - Attach LED Diffusor and LED Shroud to Front Panel • Front Panel x1 • 30cm LED Strip x1 •... -
Page 9: Step 4 - Attach Rear I/O Block To Rear Panel
Step 4 - Attach Rear I/O Block to Rear Panel • Rear I/O Block x1 • M4 x 10mm Fasteners x2 Parts Involved • Rear Panel x1 • 6-32 x 0.25” x3 Attach the Rear I/O Block to the Rear Panel using x2 M4 10mm Fasteners. The Rear I/O Block is adjustable so that you can fit your GPU into position. -
Page 10: Step 6 - Install Wraith 2.0 Volta Manifold
Step 6 - Install Wraith 2.0 Volta Manifold • • Wraith 2.0 Volta Metal Parts Assembly x1 M4 x 22mm Fasteners x8 Parts Involved • Wraith 2.0 Volta Manifold x1 Put the Wraith 2.0 Volta Metal Parts Assembly onto its side so that it is horizontal with the Corner Pieces facing so that the side with the two holes is facing upwards. -
Page 11: Step 9 - Install Psu
Alternatively, you can use the fasteners included with your PSU. Any SFX or SFX-L PSU will fit. You will need to use the included power cable which has a 90˚ connector to fit under the case. For more information about Singularity Computers and our products, please visit/scan the following links:... -
Page 12: Wraith 2.0 Volta Powerboard
Wraith 2.0 Volta PowerBoard All PowerBoards need PowerBoard Linking Cables. Revision 1.00... - Page 13 The stock cables that come with every power supply can be used, plug in as many cables as input connectors are available. Singularity Computers offers custom sleeved and shorter PSU cable kits that are a better fit than stock cables.
- Page 14 UV On/Off Switch This switch turns the built-in UV LEDs on the PowerBoard ON/OFF. It is a live switch, and the UV lighting should immediately turn ON or OFF based on the position of the switch. There is no need to reboot the system.
- Page 15 PowerBoard inside the acrylic cut out, touch the Singularity Computers logo to turn the system on. Fourth is the power button built into the motherboard, it depends on the model whether it has it or not.
