Step 7: Phantom 2 Universal Radiator Mount (optional)

•
Required 120mm / 140mm Class Radiator
•
Parts x8
The installation of this part is optional for the case but
needed for attaching radiators.
A 140mm Radiator Mount will be available soon as an add-
on which is optimized for 140mm, 280mm, 420mm and
560mm radiators with more adjustability for better port
alignment
For the Phantom 2 Universal Radiator Mount any 120mm or 140mm class radiator can be
mounted: 120mm, 140mm, 240mm, 280mm, 360mm, 420mm, 480mm, 560mm. There is no
limitation for radiator width.

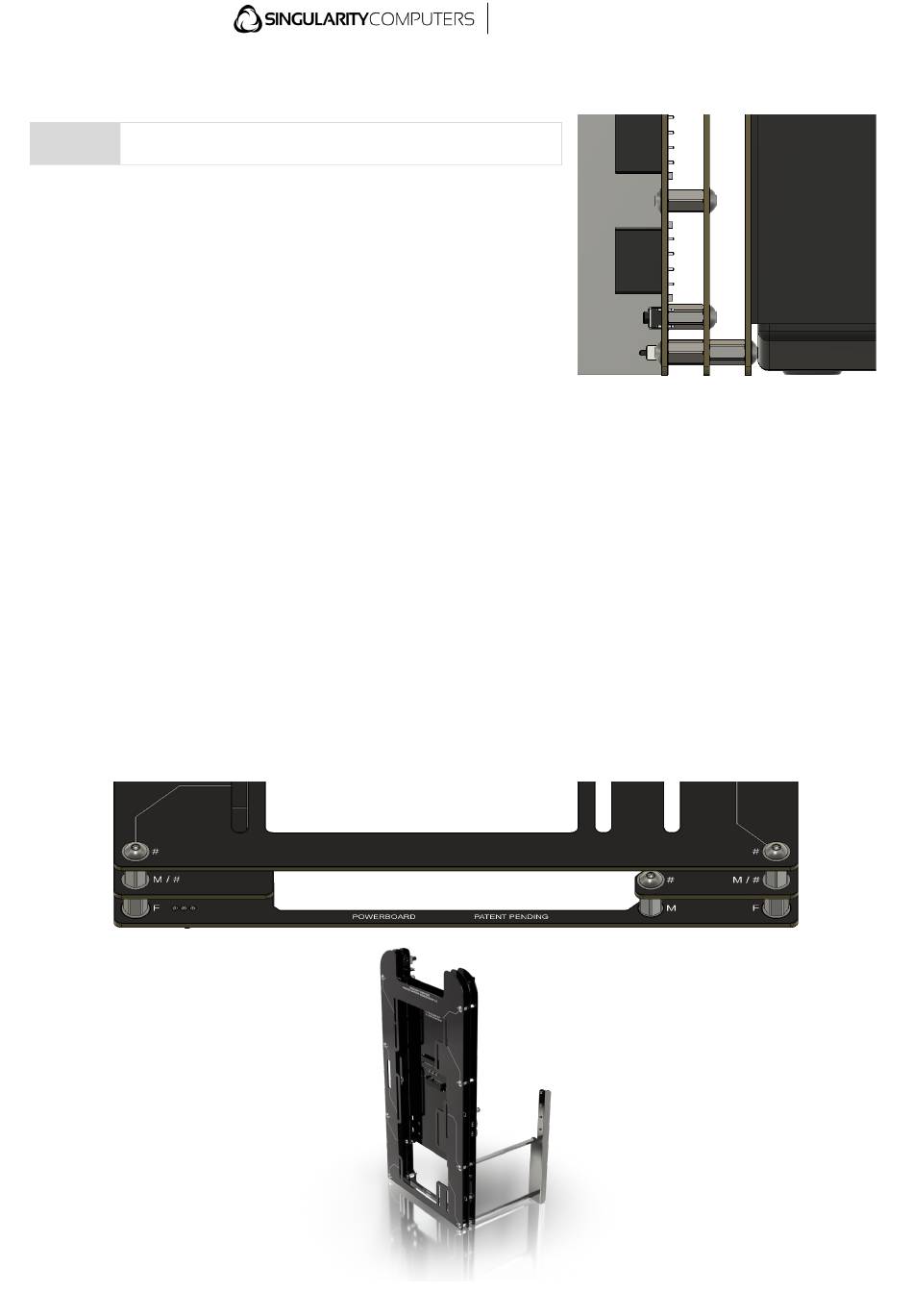

Part A - Install the radiator onto the Phantom 2 Universal Radiator Mount, securing it with its
included mounting hardware to the side where the white text and circuit lines are (facing away
from the PowerBoard). The height of the radiator position can be adjusted vertically so lift it up
or lower it down until the bottom of the radiator touches the floor and it will act as a support leg
for the case. Tighten the mounting hardware to secure the radiator into position.
Part B - Now secure the assembly to the Phantom 2 Reinforcement pieces with x8 #6-32 0.25"
SCR fasteners to the mounting holes marked with "#" symbol on the Phantom 2 Universal
Radiator Mount.
Revision 1.0
#6-32 0.25" SCR
