Step 3: Installing the Motherboard and D5 distribution plate

•
Required x4
•
Parts ITX motherboard
Revision 1.0
#6-32 0.25" SCR
Phantom 2 ITX Case Assembly Manual
•
D5 Distribution Plate (Option B)
•
x4 #6-32 20mm+10mm SO-M (Option B)

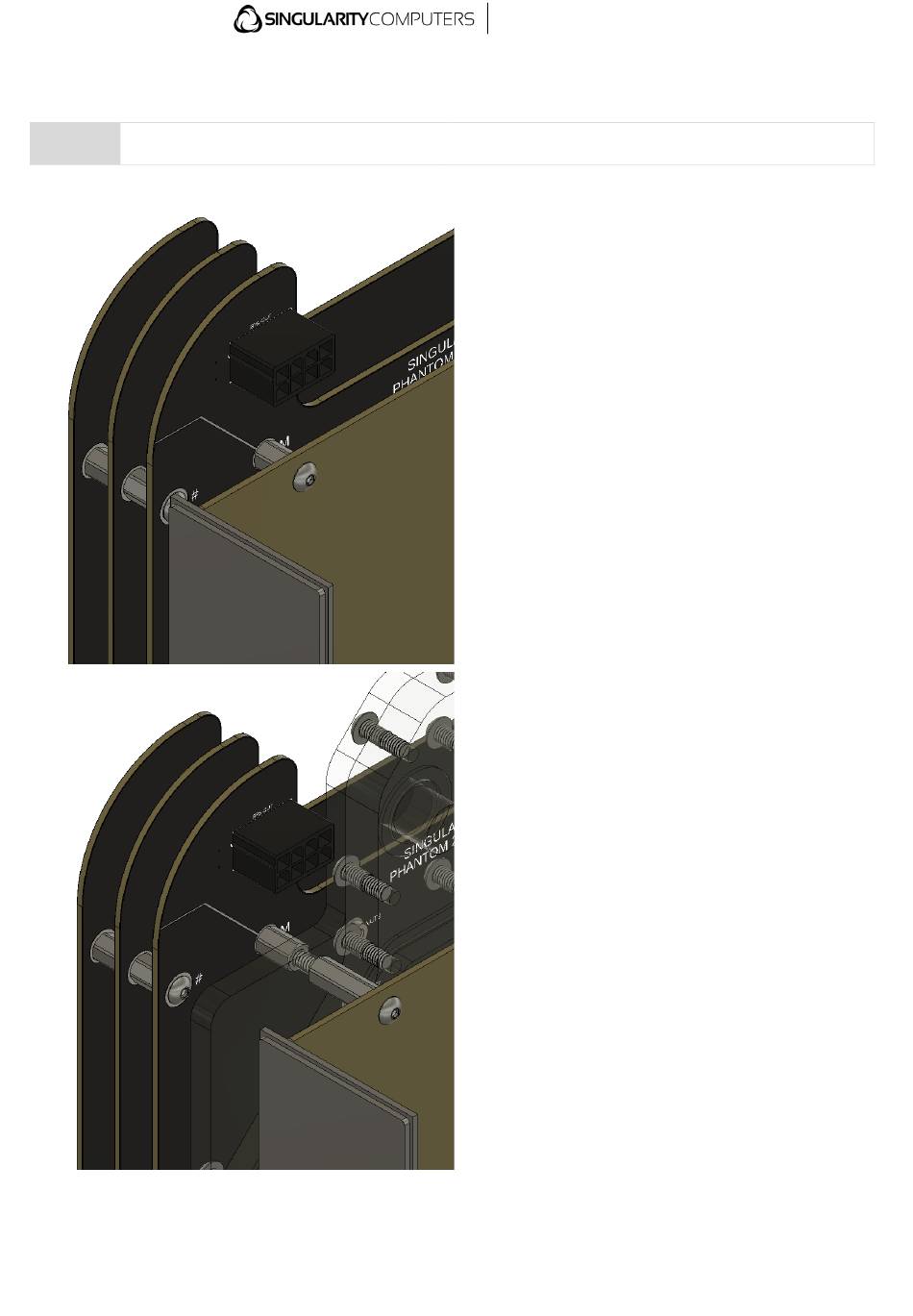

Option A without the distribution plate:
Install the ITX motherboard onto the #6-32
10mm SO-M standoffs on the front side of the
main PowerBoard and secure it with x4 #6-32
0.25" SCR fasteners.
Option B with the distribution plate: Install
the D5 distribution plate onto the #6-32
10mm SO-M standoffs on the front side of the
main PowerBoard and secure it with x4 #6-32
20mm+10mm SO-M x4 male standoffs. Install
the ITX motherboard onto the #6-32
20mm+10mm SO-M male standoffs and
secure it with x4 #6-32 0.25" SCR fasteners.
Install the D5 pump with an o-ring and the
metal cover to the distribution plate.
Page | 6
