Step 6: Phantom 2 Reinforcements

•
Required x18/x10 #
•
Parts x0/x8
Route the Power Cable between the standoffs and under
the Phantom 2 Reinforcement pieces before installing them.
Without a Phantom 2 Universal Radiator Mount:

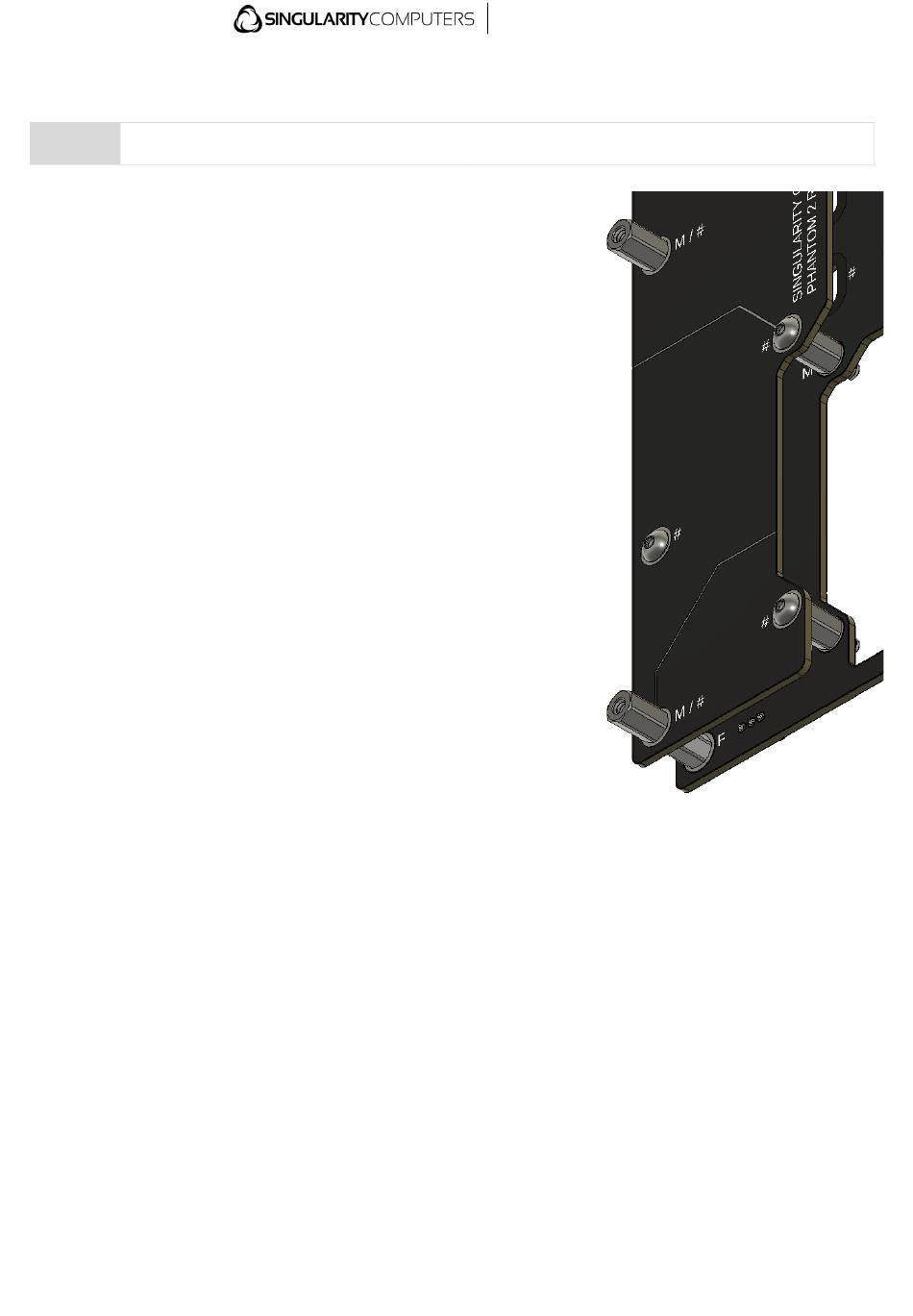

Grab the Phantom 2 Reinforcement pieces and mount them
to their designated locations and secure them with a total
of x18 #6-32 0.25" SCR fasteners for the holes marked with
"#" or "M/#".
With a Phantom 2 Universal Radiator Mount:
Grab the Phantom 2 Reinforcement pieces and mount them
to their designated locations and secure them with a total
of x10 #6-32 0.25" SCR fasteners for the holes marked with
"#" and x8 #6-32 10mm SO-M for the holes marked with
"M/#".
These cover pieces increase the structural integrity of the
case so the fasteners and standoffs will need to be finger
tight.
Revision 1.0
#6-32 0.25" SCR
M #6-32 10mm SO-M
Phantom 2 ITX Case Assembly Manual
•
x1 Phantom 2 Reinforcement Left
•
x1 Phantom 2 Reinforcement Right
Page | 10
