Step 9: Graphics Card Installation
Required
•
x2 - x4
Parts
•
Graphics Card
Installing a graphics card is optional but Step #4 is required.

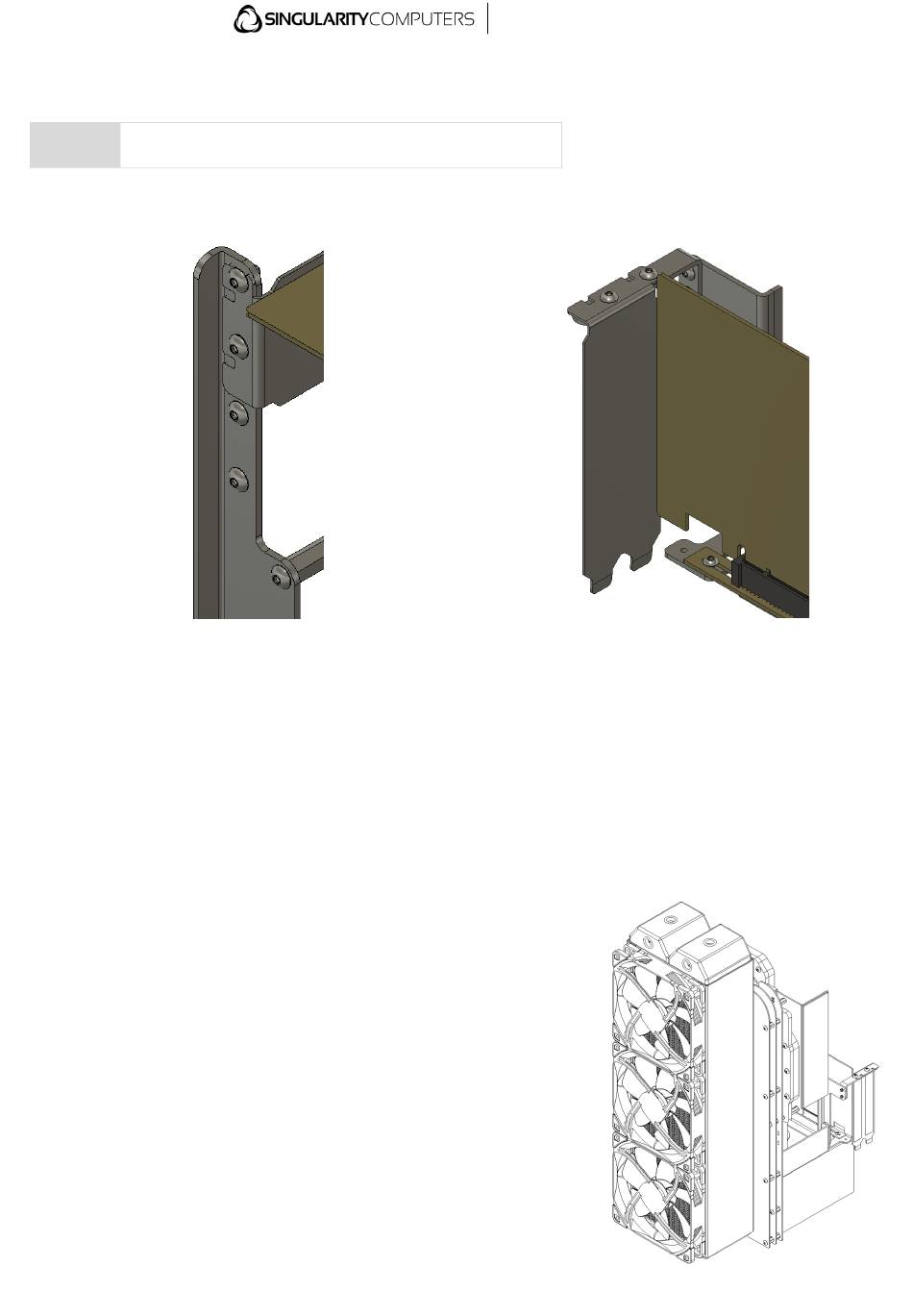

Horizontal
Undo the latch on the motherboard's PCIe
slot then plug in the card and secure it to the
Horizontal GPU Mount with up to x4 #6-32
0.25" SCR fasteners depending on how wide
is the graphics card.
Step 10: Power Cables
Plug the power supply's 8pin EPS and 24pin MB into the
appropriate input connectors on the main PowerBoard then
fold and secure them with cable ties. If using a dedicated
graphics card then plug in the power supply's PCIe power
cables to the graphics card. Singularity Computers can provide
custom length sleeved cables for most power supplies.
Revision 1.0
#6-32 0.25" SCR
Phantom 2 ITX Case Assembly Manual
Vertical
Undo the latch on the PCIe Riser Cable's slot
then plug in the card and secure it to the
Vertical GPU Mount with x2 #6-32 0.25" SCR
fasteners.
Page | 15
