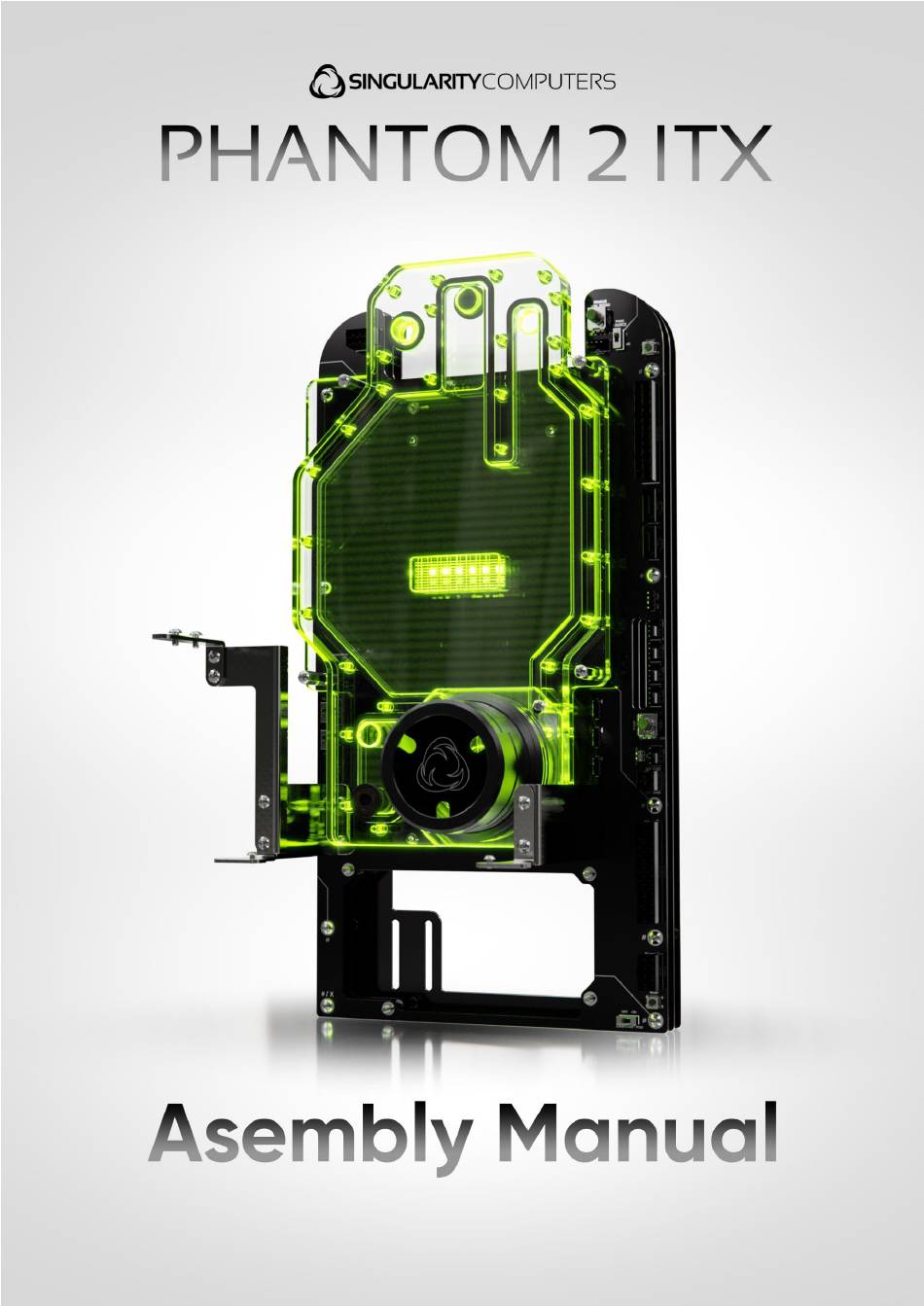

- Page 1 Revision 1.0...
-
Page 2: Table Of Contents
Phantom 2 ITX Case Assembly Manual Table of Contents Introduction ..............................2 Features ................................2 Phantom 2 ITX Case Specifications ......................3 Parts List................................. 4 Assembly Manual ............................5 Step 1: Mounting the Drives (optional) ......................5 Step 2: Preparing the Main PowerBoard ...................... 5 Step 3: Installing the Motherboard and D5 distribution plate ............. -
Page 3: Introduction
Phantom 2 ITX Case Assembly Manual Introduction The Phantom 2 ITX Case turns the Singularity Computers PowerBoard into the case itself. Phantom 2 does not aim to be the smallest Mini-ITX case, but to achieve maximum component density with unrestricted airflow and support for high-end watercooling. Phantom 2 disappears amongst the components mounted to it, it is completely about component selection and will show off the skill of the builder. -
Page 4: Phantom 2 Itx Case Specifications
Phantom 2 ITX Case Assembly Manual Phantom 2 ITX Case Specifications Case Components PowerBoard PCB parts: x4 total. Stainless steel fasteners and stand offs. Electronics Integration 24pin x1, 8pin EPS x1. Power and Reset Buttons. 2.5” SATA 3.0 6Gb/s Direct Mount. -
Page 5: Parts List
Phantom 2 ITX Case Assembly Manual Parts List Item Quantity Phantom 2 ITX Case Phantom 2 PowerBoard Phantom 2 Reinforcement Left Phantom 2 Reinforcement Right Phantom 2 Universal Radiator Mount HGPU (Phantom 2 Horizontal GPU Mount) SATA 2.5” L-brackets #6-32 10mm SO-F #6-32 10mm SO-M #6-32 117mm SO-M #6-32 0.25”... -
Page 6: Assembly Manual
Phantom 2 ITX Case Assembly Manual Assembly Manual Step 1: Mounting the Drives (optional) • • Required 2.5” drives M3 8mm SCR • Parts SATA 2.5” L-Brackets Mount the 2.5” drives to the main PowerBoard before doing any other assembly as access to these drives will be restricted by other parts. -
Page 7: Step 3: Installing The Motherboard And D5 Distribution Plate
Phantom 2 ITX Case Assembly Manual Step 3: Installing the Motherboard and D5 distribution plate • • Required #6-32 0.25” SCR D5 Distribution Plate (Option B) • • Parts ITX motherboard x4 #6-32 20mm+10mm SO-M (Option B) Option A without the distribution plate: Install the ITX motherboard onto the #6-32 10mm SO-M standoffs on the front side of the main PowerBoard and secure it with x4 #6-32... -
Page 8: Step 4: Installing The Power Supply
Phantom 2 ITX Case Assembly Manual Step 4: Installing the Power Supply • • Required #6-32 10mm SO-M Power Cable • Parts ATX Power Supply Grab an ATX power supply and 4x of the #6-32 10mm SO-M male standoffs and secure the power supply onto the main PowerBoard at the mounting holes marked with “M”... - Page 9 Phantom 2 ITX Case Assembly Manual Horizontal: Remove the x2 #6-32 0.25” SCR fasteners from the mounting holes marked “X / #” and replace them with x2 #6-32 117mm SO-M male standoffs, then put the Phantom 2 Horizontal GPU mount on top and secure it with the x2 #6-32 0.25”...
- Page 10 Phantom 2 ITX Case Assembly Manual Part B - Install the mount to the main PowerBoard and secure it using x4 #6-32 0.25” SCR fasteners, but do not tighten them for now as the height of the mount will need to be set: Part C - Install the PCIe Gen4 Riser cable PCB to the mount using x2 M3 4mm SCR fasteners...
-
Page 11: Step 6: Phantom 2 Reinforcements
Phantom 2 ITX Case Assembly Manual Step 6: Phantom 2 Reinforcements • • Required x18/x10 # #6-32 0.25” SCR Phantom 2 Reinforcement Left • • Parts x0/x8 #6-32 10mm SO-M Phantom 2 Reinforcement Right Route the Power Cable between the standoffs and under the Phantom 2 Reinforcement pieces before installing them. - Page 12 Phantom 2 ITX Case Assembly Manual Revision 1.0 Page | 11...
-
Page 13: Step 7: Phantom 2 Universal Radiator Mount (Optional)
Phantom 2 ITX Case Assembly Manual Step 7: Phantom 2 Universal Radiator Mount (optional) • Required 120mm / 140mm Class Radiator • Parts #6-32 0.25” SCR The installation of this part is optional for the case but needed for attaching radiators. A 140mm Radiator Mount will be available soon as an add- on which is optimized for 140mm, 280mm, 420mm and 560mm radiators with more adjustability for better port... -
Page 14: Step 8: Cable Installation
Phantom 2 ITX Case Assembly Manual Step 8: Cable Installation • • Required 8pin EPS 10cm Linking Cable x2 SATA 10cm Data Cable x2 • • Parts 24pin MB 10cm Linking Cable PWM Linking Cable • • “POWER SW” Wire ARGB Linking Cable •... - Page 15 Phantom 2 ITX Case Assembly Manual Revision 1.0 Page | 14...
-
Page 16: Step 9: Graphics Card Installation
If using a dedicated graphics card then plug in the power supply’s PCIe power cables to the graphics card. Singularity Computers can provide custom length sleeved cables for most power supplies. Revision 1.0... -
Page 17: Phantom 2 Powerboard Overview
Phantom 2 ITX Case Assembly Manual Phantom 2 PowerBoard Overview All PowerBoards need PowerBoard Linking Cables. Revision 1.0 Page | 16... -
Page 18: D5 Reservoir Distribution Plate Overview
Phantom 2 ITX Case Assembly Manual D5 Reservoir Distribution Plate Overview Revision 1.0 Page | 17...
