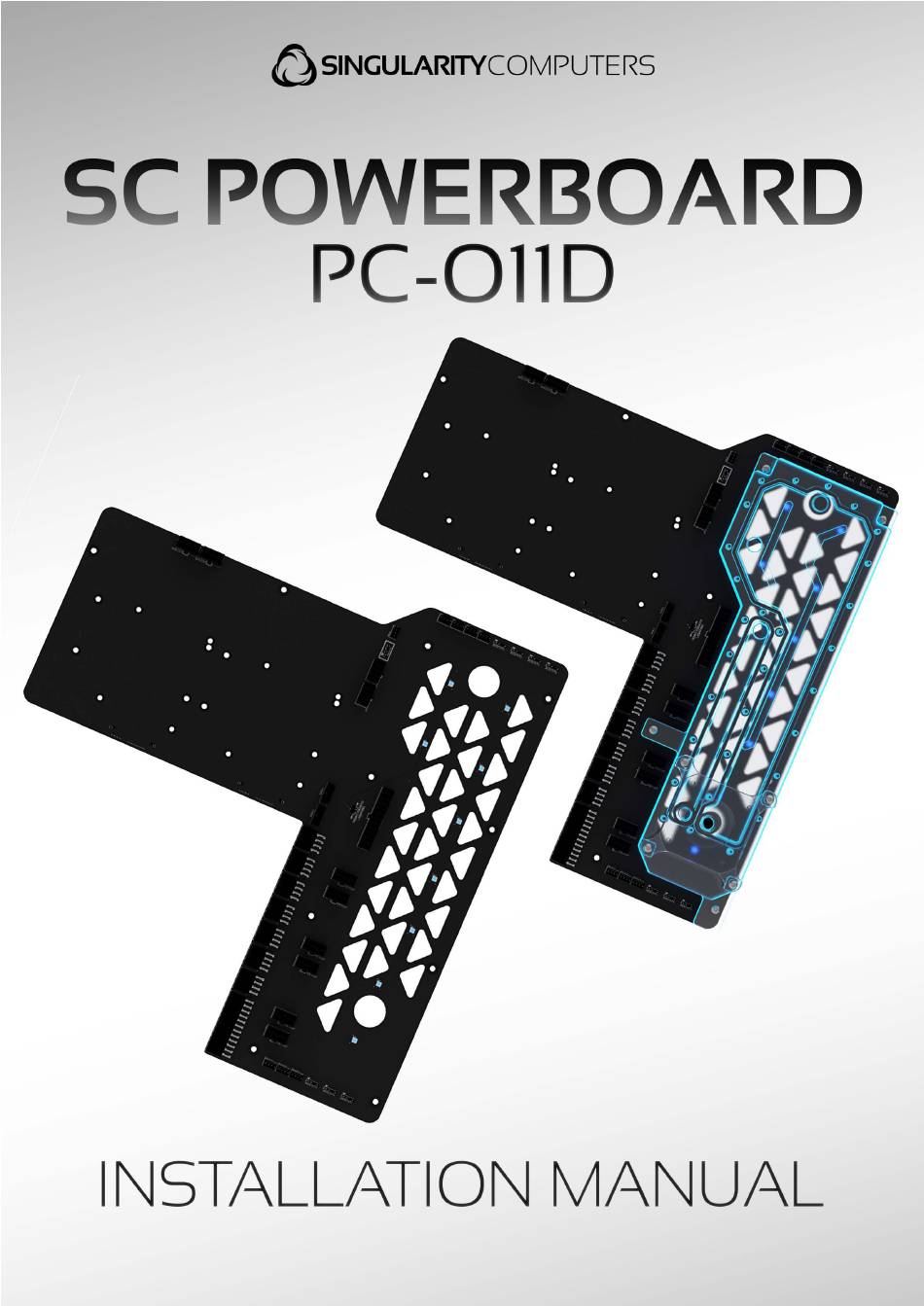

- Page 1 Revision 1.0...
- Page 2 | SC PowerBoard PC-O11D Installation Manual Table of Contents Introduction & Features ........................... 2 Specifications & Included Items ........................3 Step 1 ..................................4 Step 2 ..................................4 Step 3 ..................................5 Step 4..................................5 Step 5 ..................................6 Step 6 ..................................6 Revision 1.0 Page | 1...
-
Page 3: Introduction And Features
SC PowerBoard PC-O11D Distribution Plate The Singularity Computers PowerBoard is essentially a distribution plate for cables and so we wanted to create an integrated PowerBoard and Distribution Plate which are designed to go together. The PowerBoard PC-O11D Distribution Plate is a Pump and Reservoir Combination. It comes included with a DDC Pump Top so that a radiator can still fit into the bottom panel radiator mounting position of the Lian Li PC-O11D. - Page 4 | SC PowerBoard PC-O11D Installation Manual Specifications & Included Items Connections • 24pin Input & Output • 8pin EPS Inputs x2 Outputs x4 (A total of 7 EPS and PCIe outputs can be used at the same time). • 8pin PCIe Inputs x5 Outputs x6 (A total of 7 EPS and PCIe outputs can be used at the same time).
- Page 5 | SC PowerBoard PC-O11D Installation Manual Step 1 Remove the top and side panels from the case. Then remove the items outlined in the image beside. Also remove the support structure behind the SSD mounting panel. Step 2 The case should now look like the image below with a clear space to install the PowerBoard onto...
- Page 6 | SC PowerBoard PC-O11D Installation Manual Step 3 Attach the 8x M4 Female Stand Off Brass 10mm front of the PowerBoard (the side with the majority of the connectors). Attach to the holes marked in the image beside using 8x M4 x 6mm Button Head Hex Stainless Steel Fasteners.
- Page 7 | SC PowerBoard PC-O11D Installation Manual Step 5 Attach the PowerBoard to the case using 10x M4 x 6mm Button Head Hex Stainless Steel Fasteners in the positions marked in the images below. The Front IO cables will need to be managed so that the PowerBoard can easily fit into position, they may need to be cable tied back out of the way.
