Assembly Manual

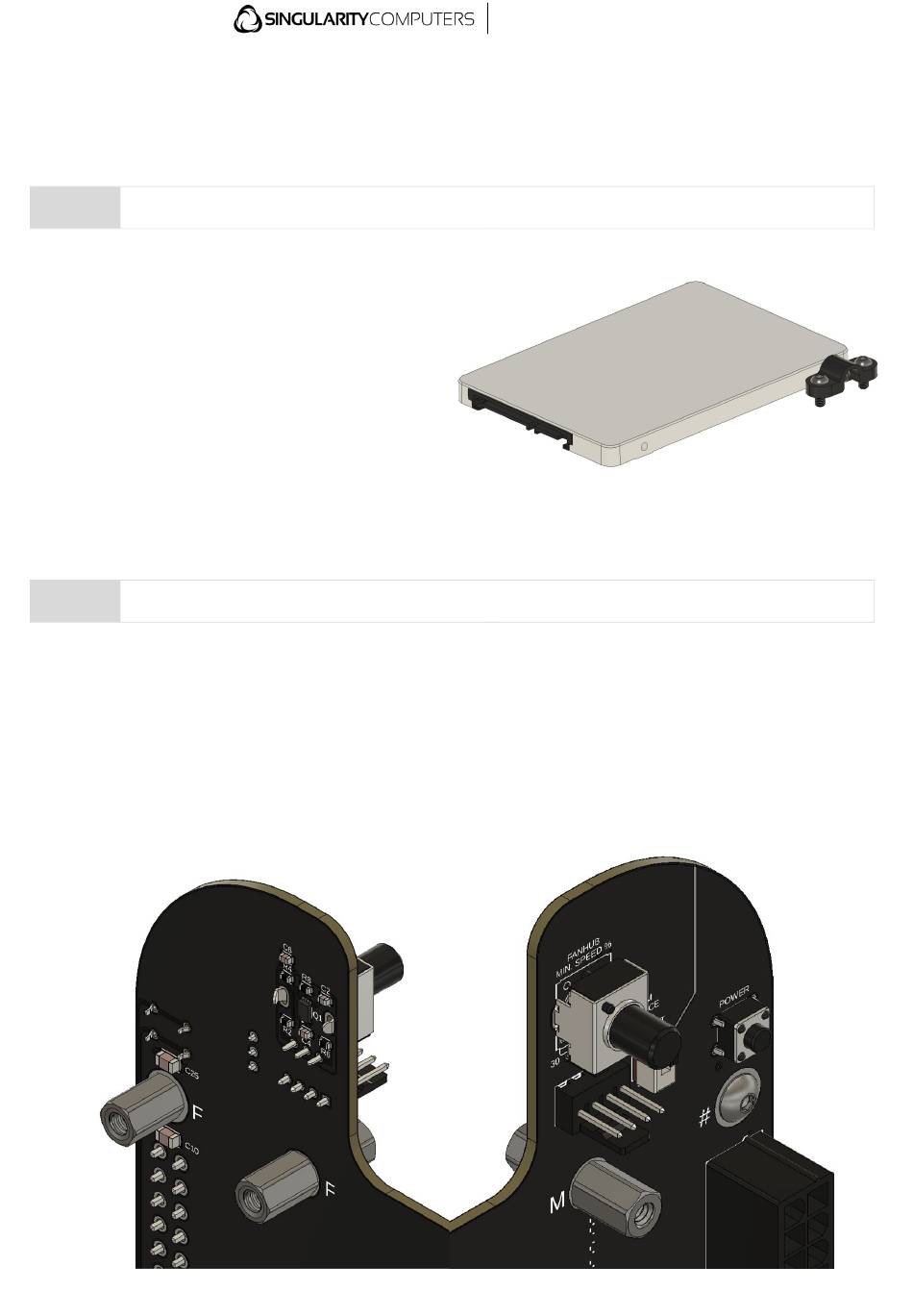

Step 1: Mounting the Drives (optional)

•
Required x2
•
Parts x2
Mount the 2.5" drives to the main PowerBoard
before doing any other assembly as access to
these drives will be restricted by other parts.
Use an M3 8mm SCR fastener to mount a SATA
2.5" L-bracket to a drive then install the drive
to the SATA receptacle on the PowerBoard and
secure it with 2x M3 8mm SCR to the
PowerBoard.

Step 2: Preparing the Main PowerBoard

•
Required x10
•
Parts x14
Part A: Grab x10 #6-32 10mm SO-F female standoffs and install them to the holes marked "F" on
the back side of the PowerBoard and secure them from the front side with x10 of #6-32 0.25" SCR
fasteners for holes marked with "#".
Part B: The remaining x4 of the #6-32 10mm SO-F female standoffs will have a #6-32 10mm SO-
M male standoff on the opposing side instead of fasteners, these form the 4 mounting points for
the ITX motherboard at the mounting holes marked with "M" on the front side of the main
PowerBoard.
Revision 1.0
2.5" drives
SATA 2.5" L-Brackets
# #6-32 0.25" SCR
F #6-32 10mm SO-F
Phantom 2 ITX Case Assembly Manual
•
x6 M3 8mm SCR
•
x4 M #6-32 10mm SO-M
