Intellitronix DP4005 Installation Manual page 2

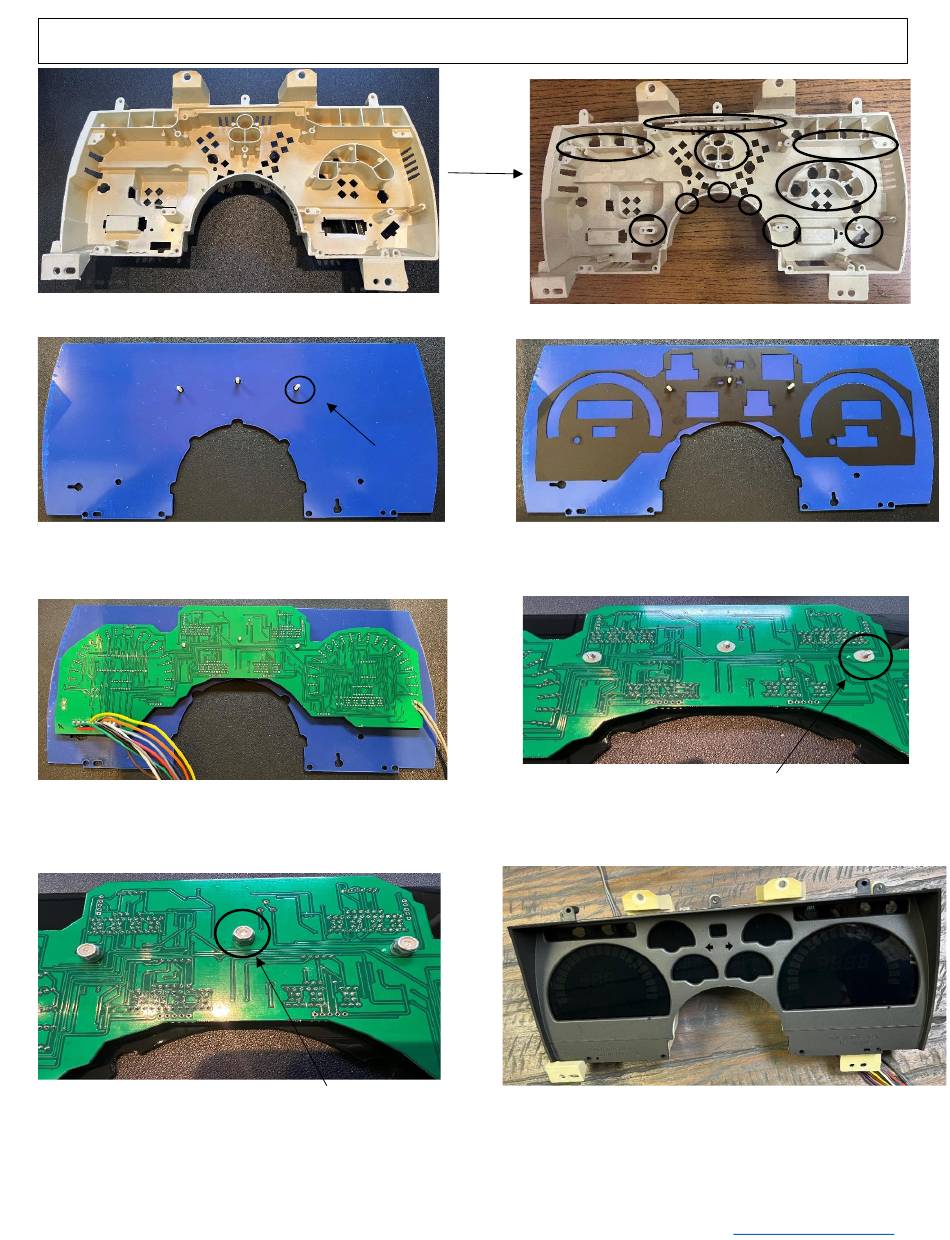

The inside plastic on the factory housing will need to be cut down ½" for the board to sit flush
Step 1
Be sure to remove protective film from lens
Step 3
Lay circuit board face down lining up the screws
Step 5
Secure the assembly using the lock nuts provided
2 DP4005
Step 2
¾" screw
Place over lay over the lens lining up the screws
Step 6
Place the new gauge assembly into the modified
housing and attach the front bezel to the housing
with the factory hardware. The new gauges will
be wedged between the bezel and housing.
Intellitronix (rev 1/11/2024)
Step 4
Lay nylon washers over the screw to
protect circuit board
