NOTICE
It is only necessary to use one of two following methods for changing
the charging type in the operator.
Change Charging Type to Solar: SmartTouch Controller Buttons
Two blinking characters
indicate that the display
will accept changes.
Pressing PREV
moves to the previous
menu selection.

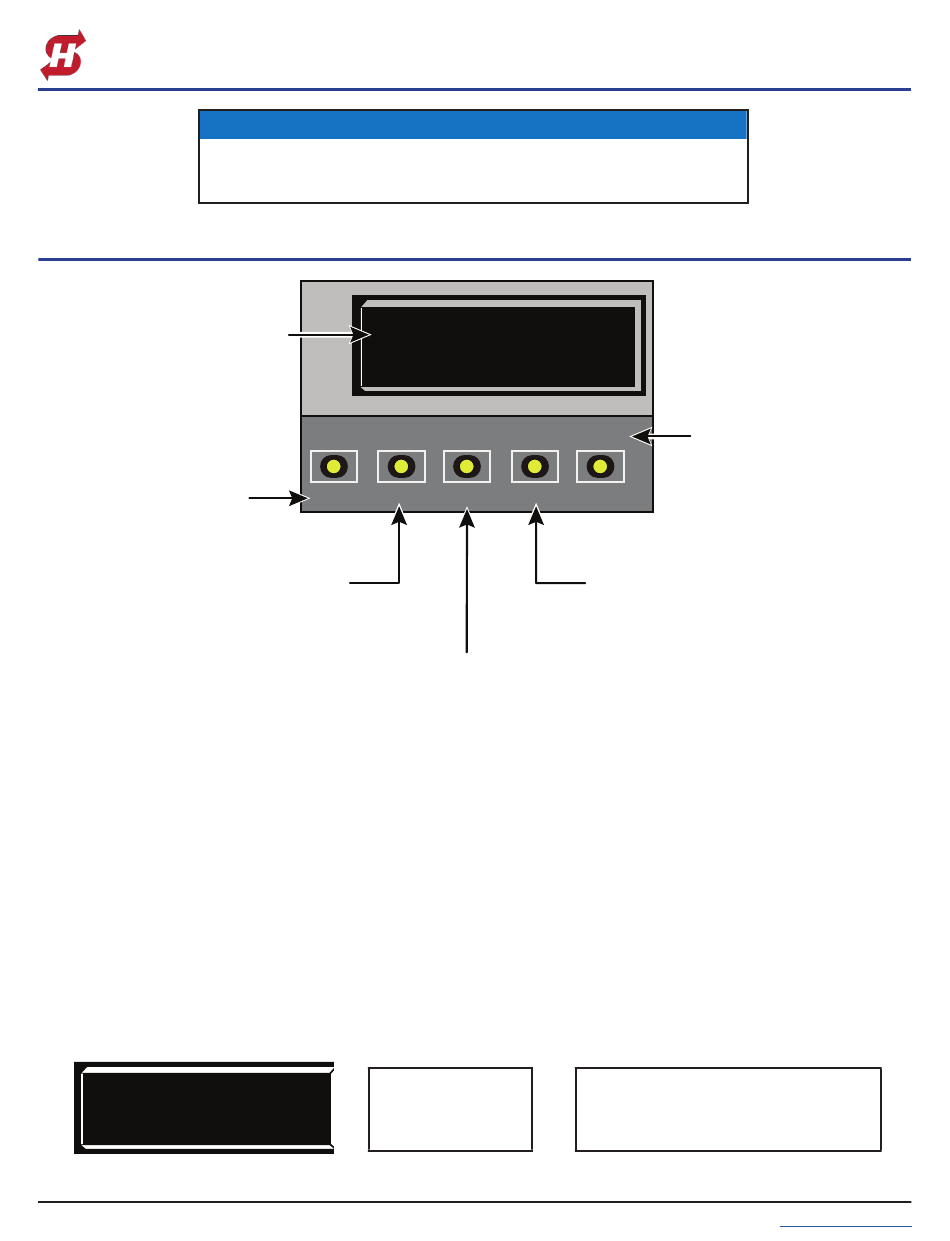

FIG-7: SmartTOUCH Controller: Buttons and Menu Operation
To access the User Menu, referv to FIG-7 and take the following steps:
1. At a gate status display, press the MENU button twice.
2. With CLOSE TIMER on the display, press the OPEN and RESET buttons at the same time, and release to
enter the Installer Menu.
3. Press the NEXT button to cycle through the available menu items.
4. Cycle to "CHARGER TYPE" menu (shown below) and select "1" for Solar charger type.
5. Press SELECT button once to configure the Solar setting, and a second time to accept the setting.
CH 0 (AC)
CHARGER TYPE
6. Assemble chassis cover to operator and return to service.
6
D1131 Rev. B ©2022
Technical Instructions
CT 0 (OFF)
CLOSE TIMER
OPEN CLOSE
PREV NEXT
Pressing NEXT
advances through
the next available
menu selections.
Pressing SELECT
causes the upper two characters to blink,
which indicates the display is ready to
accept changes to a menu setting.
Pressing SELECT a second time accepts
what appears on the display. The entry
mode is complete when the two characters
stop blinking.
0 = AC powered
charger
1 = Solar
Instructions: Converting SlideSmartDC from AC to Solar Power
STOP MENU RESET
SELECT
Pressing MENU
returns to Run Mode and
a gate status display appears.
The MENU button does not
function while the selection is
still blinking.
Assigns charger type usually set
at factory. If set to solar at factory
then this menu item is hidden.
Pressing RESET
clears faults and
returns to Run
Mode. A gate
status display
appears.
