HySecurity SlideSmart DC Technical Instructions page 2

Turn Off AC Power & Prepare Unit
y To reduce risk of severe injury and death follow all safety procedures!
y Remove AC electrical power downstream of the unit before attempting to continue these instructions!
SDC
Compartment
DC Power
Switch
3
AC Power
Switch

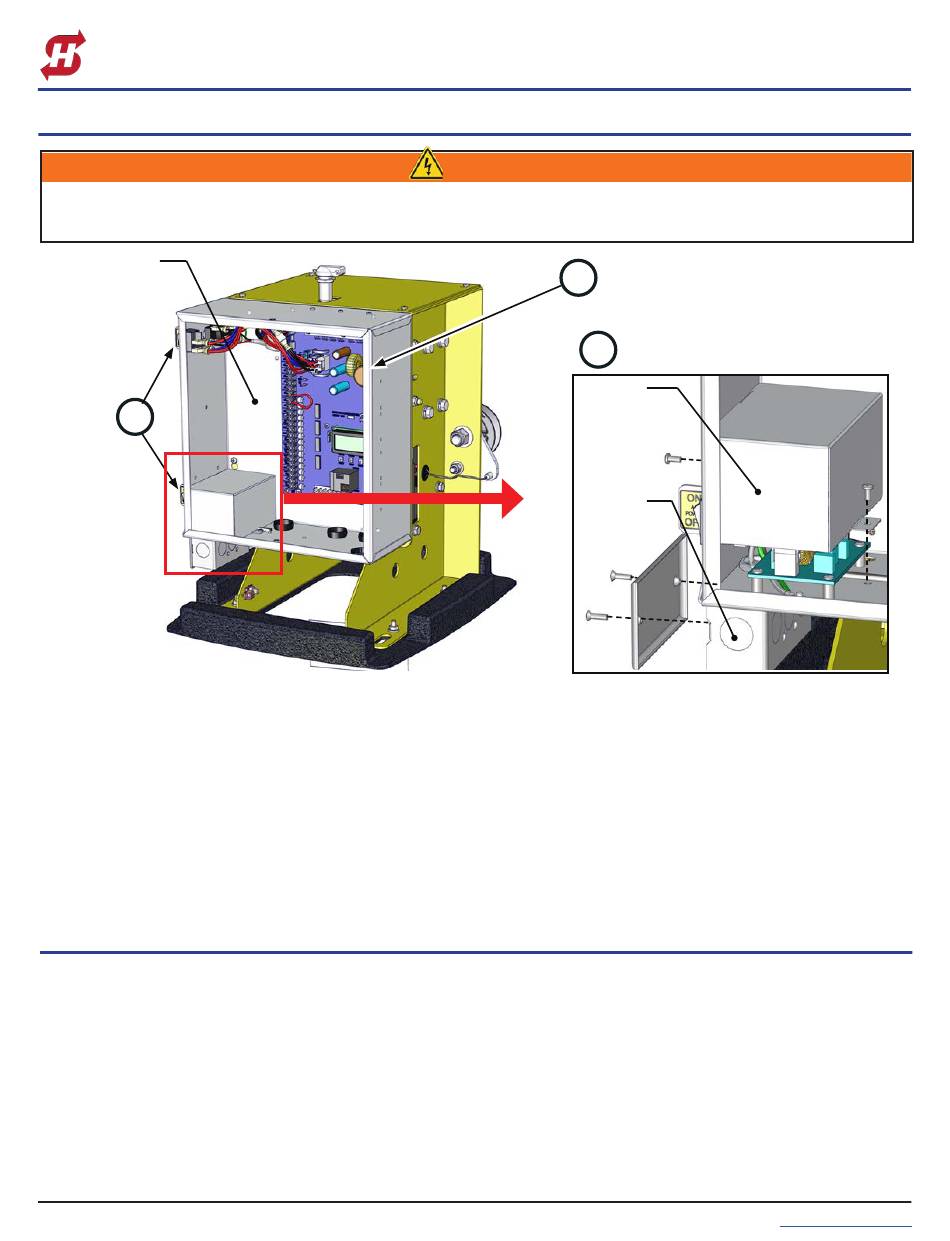

FIG-1: Accessing Power Components and Wiring (Chassis Cover Removed)
1. Remove AC power source to the operator.
2. Remove the cover of the SlideSmart DC operator and set aside.
3. Turn OFF AC and DC power switches on left side of the SDC compartment (FIG-1).
4. Remove the transparent cover of the SDC compartment (FIG-1) by sliding sideways and out.
5. Refer to FIG-1, Detail A, and remove lower and upper junction boxes covers as shown (x2 screws each). Set
aside covers and screws for later reassembly.
Disconnect AC Power Components
6. Unplug all wires from the AC power switch and unplug main harness from the AC power board (FIG-2) and
place out of the way.
7. Disconnect AC input ground lead from ground lug, leaving other ground lead connected if leaving the AUX
output connector installed (FIG-2A).
8. Disconnect AC input power cable from lower junction box (remove wire nuts if necessary) (FIG-2B).
9. Remove 5A circuit breaker (and connected wires) and replace with 15A Breaker, P/N MX001760 (FIG-2A).
10. If desired, the now non-functional Auxilliary AC Outlet and AC Power Board (and x4 screws/standoffs) may
be removed, or left in place for later re-conversion back to AC power.
2
D1131 Rev. B ©2022
Technical Instructions
Instructions: Converting SlideSmartDC from AC to Solar Power
DANGER!
Remove transparent cover from SDC
4
compartment (slide out sideways)
5
DETAIL A: Junction Boxes
Upper
Junction
Box
Lower
Junction
Box
