HySecurity SlideSmart DC Technical Instructions page 3

AC Power Board:
Unplug main harness.
AC Power Switch:
Unplug all wires.
8
Disconnect AC power cable
entering the lower junction
box and discard. Remove
wire nuts as necessary.
Replace AC Transformer Harness with Solar Harness
Remove Transformer Harness (Yellow-Blue-
Yellow) from SDC board (upper right).

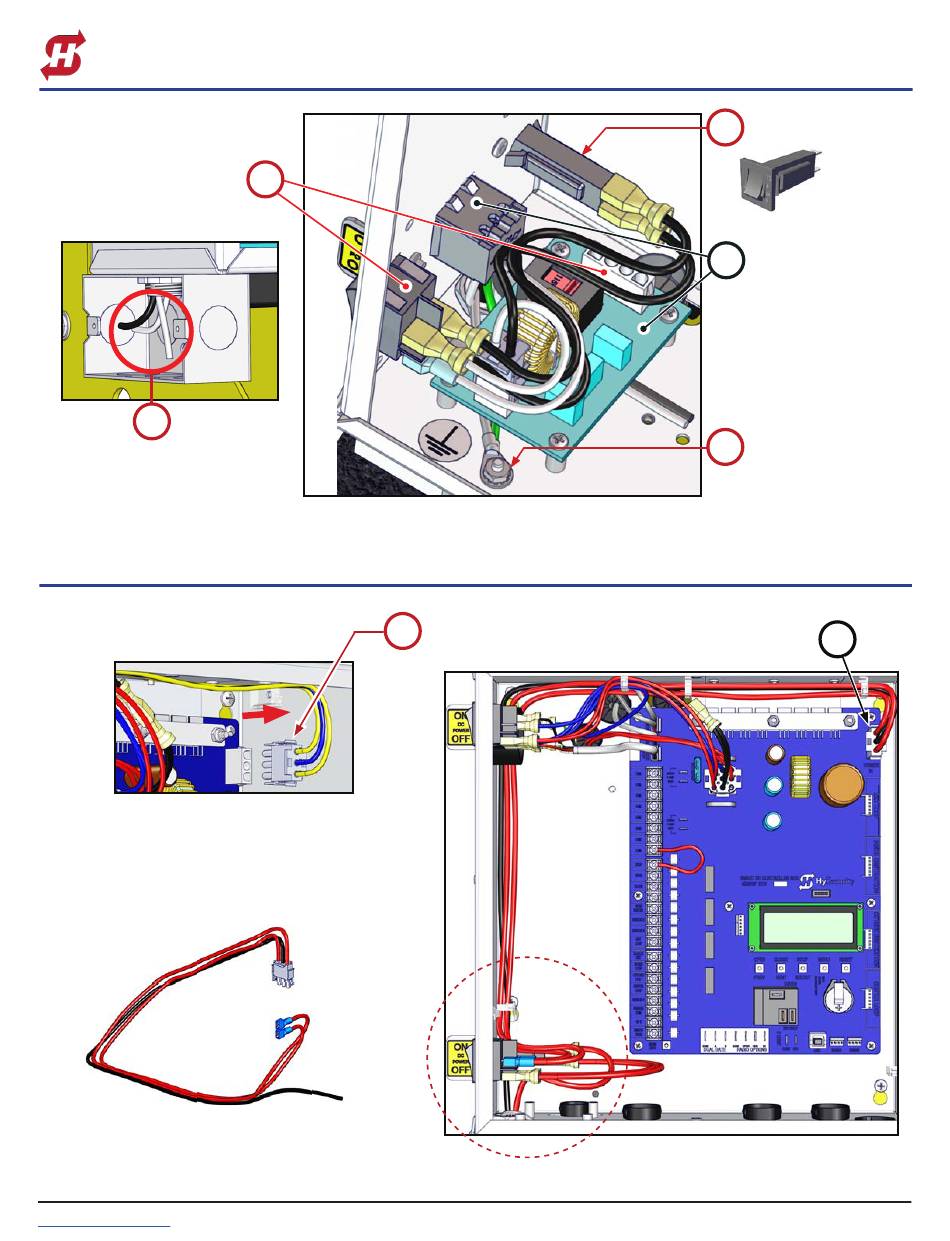

FIG-3: Removing AC Transformer Harness
11. Unplug Transformer Harness (Yellow-
Blue-Yellow) from 3-pin connector on the
upper right of the SDC board (FIG-3).
Place out of the way or remove.
Solar Harness
(MX001892)
12. Insert 3-pin connector of Solar Harness
(P/N MX001892) into connector at upper
right of tSDC board (FIG-4), and route as
shown to power section at lower left.
support.hysecurity.com
Technical Instructions
6
FIG-2A: Removing AC Power Componants
11
Instructions: Converting SlideSmartDC from AC to Solar Power
Plug Solar Harness here
and route as shown to
power section in lower left.
Power
Section
FIG-4: Installing Solar Harness
5A Circuit Breaker:
9
Remove (with wires)
& replace
with 15A
from kit.
Auxiliary AC
10
Outlet & AC
Power Board:
May be removed
if desired.
AC Input Ground:
Disconnect AC
input ground lead
from lug (leave
7
other ground
connected if
retaining AUX
output connector).
12
D1131 Rev. B ©2022
